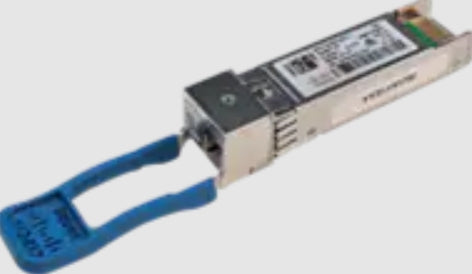

Cisco SFP-10/25G-BXD-I | 10/25G SFP28 BiDi Transceiver, 1330nm Tx, 10km, iTemp
SKU:SFP-10/25G-BXD-I
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Cisco 10/25G SFP28 BiDi transceiver is built for fibre-constrained links where a single strand of single-mode fibre has to carry both directions. It transmits at 1330 nm and receives at 1270 nm, so it is the downstream end of a matched pair. Its industrial temperature rating suits outdoor cabinets, cell-site and fronthaul-type deployments, including CPRI applications.
The module covers 10GBASE-LR, 10GBASE-BR10 and 25GBASE-BR10 operation and reaches 10 km over G.652 single-mode fibre. Operating temperature runs from -40 to 85 C, and maximum power consumption is 1.5 W drawn from the host SFP28 port. Transmit power is +2.0 dBm maximum and -7.0 dBm minimum at 25G. The violet pull tab identifies the downstream variant, and SFF-8472 digital diagnostics are supported.
It must be paired with an SFP-10/25G-BXU-I at the opposite end of the link. The host port needs RS-FEC for full 25G reach, and only PC or UPC patch cords are supported, not APC. Compatible Cisco switches are listed in the Transceiver Module Group (TMG) Compatibility Matrix.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Single-fibre bidirectional operation halves fibre usage compared with duplex optics
- Industrial temperature range of -40 to 85 C
- Supports both 10G and 25G operation on the same module
- Supports CPRI data rate options 7, 8, 9 and 10
- SFF-8472 digital diagnostic monitoring
- Interoperable with other IEEE-compliant 25G interfaces where applicable
- Tested on Cisco SFP28 ports
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: SFP28, single-fibre bidirectional (BiDi)
- Data rates: 10G and 25G
- Standards: 10GBASE-LR, 10GBASE-BR10, 25GBASE-BR10
- Reach: 10 km on SMF G.652
- Cable type: single strand SMF G.652
- Wavelength: 1330 nm Tx / 1270 nm Rx
- Tx wavelength range: 1320 to 1340 nm
- Rx wavelength range: 1260 to 1280 nm
- Transmit power 10G: -8.2 to +0.5 dBm
- Receive power 10G: -16.2 to +0.5 dBm
- Transmit power 25G: -7.0 to +2.0 dBm
- Receive power 25G: -15.0 to +2.0 dBm
- Operating temperature: -40 to 85 C
- Storage temperature: -40 to 85 C
- Max power consumption: 1.5 W
- Pull tab colour: Violet
- FEC: RS-FEC required on host port for full 25G reach
- CPRI support: data rate options 7, 8, 9 and 10
- Digital diagnostics: SFF-8472
- Laser safety: Class 1 (IEC 60825-1, 21CFR-1040)
- Compliance: RoHS 6
FAQs
Q: Does this module need a licence or subscription?
A: No. No licence or subscription is required. The module is powered from the host SFP28 port and draws a maximum of 1.5 W.
Q: Which module does it pair with at the far end?
A: It must be paired with an SFP-10/25G-BXU-I at the opposite end of a single strand of single-mode fibre. This SFP-10/25G-BXD-I is the downstream end, transmitting at 1330 nm and receiving at 1270 nm.
Q: Does the host port need FEC for 25G operation?
A: Yes. RS-FEC is required on the host port for full-reach 25G operation. Without RS-FEC the reach drops to about 3.5 km with BASE-R FEC, or about 1.5 km with no FEC, depending on fibre quality.
Q: What patch cords can I use with it?
A: Only PC or UPC patch cords are supported. APC connectors are not supported.
Q: Which Cisco switches support this module?
A: Supported platforms are listed in the Transceiver Module Group (TMG) Compatibility Matrix at tmgmatrix.cisco.com. Check your switch model and software version there before ordering.
