Cisco

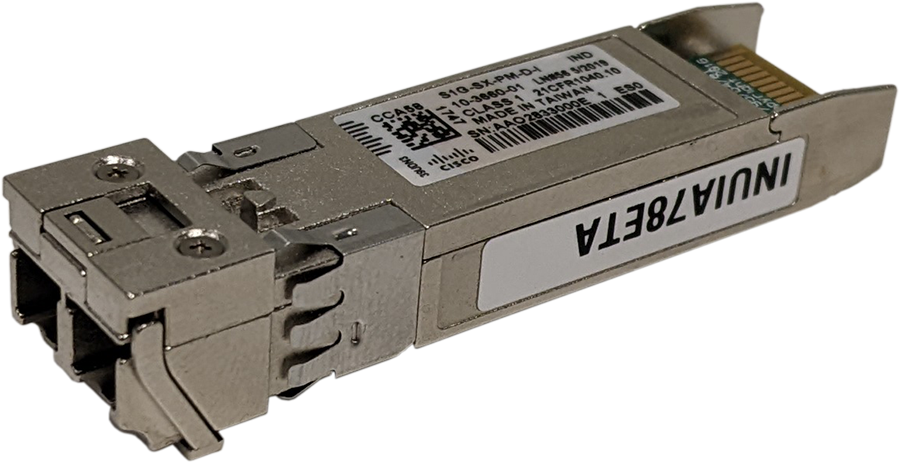

Cisco S1G-SX-PM-D-I | Assurance SFP 1G SX Transceiver, 850nm, 550m, I-Temp

SKU:S1G-SX-PM-D-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Assurance SFP is a 1G short-reach 1000BASE-SX smart SFP transceiver with an onboard FPGA. It is built for service-provider mobile backhaul, Carrier Ethernet and IP service deployments that need in-line service demarcation, SLA performance monitoring and service activation testing, without extra rack space or head-end test equipment.

This S1G-SX-PM-D-I variant runs over 850nm multimode fibre with an LC Duplex connector, reaching 550 m on 50 um core fibre and 275 m on 62.5 um core fibre. It is rated for the industrial temperature range of -40 to 85 C and draws 1.75 W from the host SFP port. Digital optical monitoring follows SFF-8472, and IEEE-1588 PTP Class B is supported.

The module is managed through Cisco Crosswork Assurance (Provider Connectivity Assurance), where firmware and FPGA updates can also be applied in the network. It uses FPGA technology, so its initialisation time is longer than standard MSA SFP specifications.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Service Activation Testing with RFC2544 and Y.1564 generation and reflection at line rate
- Performance monitoring including TWAMP, ETH-DM, ETH-LB, ICMP/UDP Echo and Y.1731 OAM
- Fully featured FPGA for active Layer 2-4 traffic generation and measurement
- Wire-speed, MEF-compliant Carrier Ethernet service demarcation with Layer 2 OAM
- Flowmeter for per-flow bandwidth metering and microburst detection
- FlowBroker remote packet capture on 1G transceivers
- Zero-touch provisioning with IPv4/IPv6 management, DHCP and LLDP enabled by default
- Force Link Up option to manage the SFP when fibre is disconnected or the link is down

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: 1GbE SFP, SX
- Wavelength: 850 nm
- Cable type: Multimode fibre (MMF)
- Optical connector: LC Duplex
- Core size: 50/62.5 um
- Reach: 550 m (50 um core) / 275 m (62.5 um core)
- Transmit power: -9.5 dBm min / -3 dBm max
- Receive power: -17 dBm min / 0 dBm max
- Link budget: 9.5 dB
- Transmit and receive wavelengths: 830-860 nm
- Bail colour: Beige
- Power: 1.75 W
- Size (H x W x D): 8.5 x 13.4 x 56.6 mm
- Module weight: Typically 75 g or less
- Operating temperature (industrial, non-condensing): -40 to 85 C (-40 to 185 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Digital optical monitoring: SFF-8472 MSA
- IEEE-1588 PTP: Class B
- GR-3108: Class 2
- Management: SFF-8742, Cisco Crosswork Assurance
- Control protocol encryption: Grain128a
- Laser safety: Class 1 (21CFR-1040 LN#50 7/2001; IEC60825-1)
- TWAMP: max 4000 sessions, 80000 PPS total, 250 PPS max per session

FAQs

Q: Does this SFP need a separate licence?
A: No separate licence or subscription is listed for this SKU. It is managed through Cisco Crosswork Assurance (Provider Connectivity Assurance), which is a separate platform.

Q: How much power does it draw?
A: The module draws 1.75 W from the host SFP port. It needs no separate PoE or external power supply.

Q: What is the maximum reach?
A: Reach is 550 m over 50 um core multimode fibre and 275 m over 62.5 um core multimode fibre, using an LC Duplex connector at 850nm.

Q: Which Cisco platforms is it compatible with?
A: Assurance SFPs behave like standard SFPs and are being certified on many Cisco platforms. Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for the status on your platform.

Q: Can it operate in harsh temperature environments?
A: Yes. This I-Temp variant is rated for -40 to 85 C operating temperature, non-condensing.

Q: How are firmware updates applied?
A: Transceiver firmware and the FPGA can be upgraded in the network through Cisco Crosswork Assurance.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
