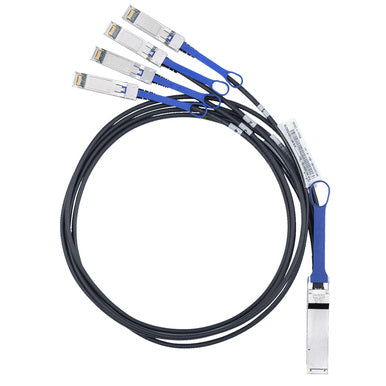

Cisco QSFP-4X10G-AOC7M | 40G QSFP+ to 4x 10G SFP+ Breakout AOC, 7m
SKU:QSFP-4X10G-AOC7M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This active optical breakout cable connects a 40G QSFP+ port to four 10G SFP+ ports over a single 7m run. The optics are integrated into the cable ends, so no separate transceivers are needed. It suits data centre, high-performance computing and enterprise core or distribution links where one 40GbE port must fan out to several 10GbE server or switch ports within a rack or row.
The 40G QSFP+ connector sits on one end and splits into four 10G SFP+ connectors on the other, with the breakout point 4m from the 40G end. The cable runs over 850nm multimode optics and has a blue pull tab. The QSFP end uses a 3.5mm cable with a 60mm bend radius, and the SFP end uses a 3mm cable with a 30mm bend radius. Operating temperature is 0 to 70 C, and link BER is better than 1E-15.
It follows IEEE 802.3ba, the QSFP+ MSA SFF-8436 and the SFP+ MSA SFF-8431 and SFF-8461 standards. Check the Cisco Transceiver Module Compatibility Matrix for supported host platforms and software versions.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable I/O device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Lets one 40G QSFP port connect to four 10G SFP+ ports
- Integrated optics, so no separate transceivers are required
- High-speed electrical interface compliant with IEEE 802.3ba
- QSFP form factor with 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
- Certified and tested on Cisco QSFP 40G ports for performance, quality and reliability
- Exceeds IEEE specifications, guaranteeing link BER better than 1E-15
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: QSFP+ to 4x SFP+ active optical breakout cable
- Connectors: 40G QSFP+ end to 4x 10G SFP+ ends
- Cable length: 7m
- Breakout location: 4m from the 40G end
- Optics: integrated AOC, 850nm multimode
- Pull tab colour: Blue
- Cable diameter, QSFP end: 3.5mm
- Bend radius, QSFP end: 60mm
- Face plate distance, QSFP end: 100mm
- Cable diameter, SFP end: 3mm
- Bend radius, SFP end: 30mm
- Face plate distance, SFP end: 80mm
- Jacket material: PVC, Orange
- QSFP connector module maximum dimensions (H x W x D): 13.5 x 18.4 x 72.4mm
- QSFP connector module weight: 100 grams or less
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Link BER: better than 1E-15
- Standards: IEEE 802.3ba, QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and SFF-8461, RoHS 6
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive-powered optical cable with no licensing requirement.
Q: Does it need external power?
A: No. The cable is powered from the host port, so no external power supply is required.
Q: What ports does it connect to?
A: The 40G end plugs into a Cisco 40G QSFP or QSFP+ port, and the four breakout ends plug into 10G SFP+ ports. Check the Cisco Transceiver Module Compatibility Matrix for supported host platforms and software versions.
Q: Where does the cable split into four ends?
A: The breakout point is 4m from the 40G end, leaving the remaining length to reach the four 10G SFP+ ports.
Q: How does the 7m version differ from other lengths?
A: Only the cable length differs. This SKU provides a 7m run with the breakout 4m from the 40G end.
