Cisco

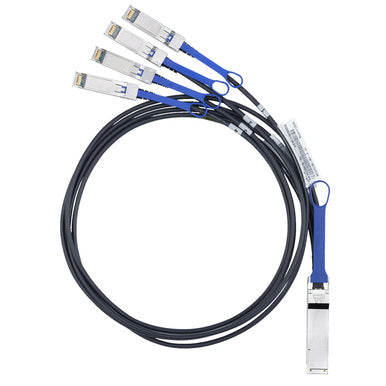

Cisco QSFP-4X10G-AOC2M | 40G QSFP+ to 4x 10G SFP+ Active Optical Cable, 2m

SKU:QSFP-4X10G-AOC2M

$1,204.21 inc. GST
$1,094.74 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 40G QSFP+ to 4x 10G SFP+ active optical breakout cable is a 2 m assembly with one 40G QSFP connector on one end and four 10G SFP+ connectors on the other. It is designed for data centre, high-performance computing, enterprise core and distribution, and service provider networks that need to split a single 40G port into four 10G links over very short distances.

The cable runs from a 40G QSFP port on a Cisco switch to four 10G SFP+ ports on a Cisco switch, within a rack or across adjacent racks. The breakout point sits 0.66 m from the QSFP end, and the orange PVC jacket is thinner and lighter than a copper equivalent, which eases cable routing and airflow in high-density racks. Being optical, it has no EMI issues. The QSFP connector has a brown pull tab and the cable operates across the commercial range of 0 to 70 C.

The electrical interface complies with IEEE 802.3ba, the QSFP end follows the QSFP+ MSA SFF-8436 and the SFP+ ends follow SFF-8431 and SFF-8461. Supported Cisco platforms and software versions are listed in the Cisco Optics-to-Device Compatibility Matrix, and this SKU is also listed as an ordering option for the Nexus 5600 platform.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Thinner and lighter than copper cables, which makes cabling easier
- Supports efficient system airflow and has no EMI issues in high-density racks
- Suited to very short distances, within racks and across adjacent racks
- High-speed electrical interface compliant with the IEEE 802.3ba standard
- QSFP form factor with a 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
- Certified and tested on Cisco QSFP 40G ports
- Link bit-error rate better than 1E-15, exceeding IEEE specifications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Type: QSFP+ (40G) to 4x SFP+ (10G) active optical breakout cable
- Cable length: 2 m
- Breakout location from QSFP end: 0.66 m
- Pull tab colour: Brown
- Jacket: PVC, Orange
- Cable diameter, QSFP end: 3.5 mm
- Bend radius, QSFP end: 60 mm
- Face plate distance, QSFP end: 100 mm
- Cable diameter, SFP end: 3 mm
- Bend radius, SFP end: 30 mm
- Face plate distance, SFP end: 80 mm
- QSFP connector module weight: typically 100 g or less
- QSFP connector module maximum dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3ba, QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and SFF-8461, RoHS 6

FAQs

Q: What does this cable connect?
A: It connects a 40G QSFP port on a Cisco switch to four 10G SFP+ ports on a Cisco switch, giving four 10G links from a single 40G port.

Q: How far can this cable reach?
A: The cable is 2 m long, intended for very short-reach links within a rack or between adjacent racks.

Q: Does it need a separate power supply or licence?
A: No. It is powered from the host ports and needs no separate licence.

Q: How do I confirm it works with my switch?
A: Check your platform and software version in the Cisco Optics-to-Device Compatibility Matrix. This SKU is also listed as an ordering option for the Nexus 5600 platform.

Q: Where does the cable split into the four 10G legs?
A: The breakout point is 0.66 m from the 40G QSFP end, leaving the remaining length to reach the four SFP+ ports.
