Cisco

Cisco QSFP-4X10G-AOC10M | 40G QSFP+ to 4x 10G SFP+ Breakout AOC, 10m

SKU:QSFP-4X10G-AOC10M

$1,368.42 inc. GST
$1,244.02 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

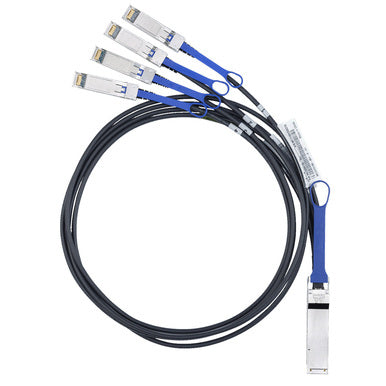

This is a 40G QSFP+ to 4x 10G SFP+ active optical breakout cable from Cisco's 40GBASE QSFP range. It splits one 40 Gigabit Ethernet QSFP port into four independent 10 Gigabit Ethernet SFP+ links over multimode fibre, which suits top-of-rack and aggregation links in data centres, high-performance computing, enterprise core and distribution, and service provider networks.

The 10m cable length is the key variant detail. It uses 850 nm class multimode optics, a PVC orange jacket and a red pull tab. The recommended minimum distance to the breakout (fan-out) structure is 7 metres, so plan routing from the QSFP end with that in mind. The QSFP end has a 3.5 mm cable diameter and 60 mm bend radius, and each SFP+ leg has a 3 mm diameter and 30 mm bend radius. It operates from 0 to 70 C and draws power from the host ports, so no separate supply is needed.

It is designed for Cisco switches and routers with 40G QSFP ports. The Cisco Nexus 3164Q, Nexus 6004 and Nexus 5624Q are listed as supported platforms, and exact platform and software support can be checked in the Cisco Optics-to-Device Compatibility Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable I/O device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Breaks one 40G port out into four 10G SFP+ connections
- High-speed electrical interface compliant with IEEE 802.3ba
- QSFP form factor, 2-wire I2C interface and low-speed electrical interfaces compliant with SFF-8436 and the QSFP MSA
- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
- Breakout structure is designed not to interfere with adjacent port modules or cables

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: QSFP-4X10G-AOC10M
- Type: QSFP to four SFP+ active optical breakout cable
- Breakout: 40G to 4 x 10G
- Cable length: 10 m
- Fibre: multimode, 850 nm class optics
- Pull tab colour: Red
- Jacket: PVC, Orange
- Minimum recommended breakout (fan-out) structure distance: 7 meters
- Cable diameter (QSFP end): 3.5 mm
- Bend radius (QSFP end): 60 mm
- Face plate distance (QSFP end): 100 mm
- Cable diameter (SFP end): 3 mm
- Bend radius (SFP end): 30 mm
- Face plate distance (SFP end): 80 mm
- QSFP connector module maximum dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- QSFP connector module weight: 100 g or less
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Link BER: better than 1E-15
- Standards: IEEE 802.3ba, QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and SFF-8461, RoHS 6

FAQs

Q: Does it need a licence or separate power?
A: No. It needs no licence and no separate power supply, as it is powered from the host QSFP and SFP+ ports.

Q: Which Cisco platforms support it?
A: It is supported on Cisco switches and routers with 40G QSFP ports, including the Nexus 3164Q, Nexus 6004 and Nexus 5624Q. Check the Cisco Optics-to-Device Compatibility Matrix for exact platform and software support.

Q: What is the minimum distance to the breakout structure?
A: The recommended minimum distance from the QSFP end to the breakout (fan-out) structure is 7 metres, so the 10m length leaves room for routing.

Q: What does it connect to at each end?
A: One end is a single 40G QSFP+ connector and the other end splits into four 10G SFP+ connectors, running over multimode fibre with 850 nm class optics.

Q: How does it differ from other lengths in this range?
A: Only the cable length differs. This SKU is 10m, and the breakout function, connectors and fibre type are the same.
