Cisco

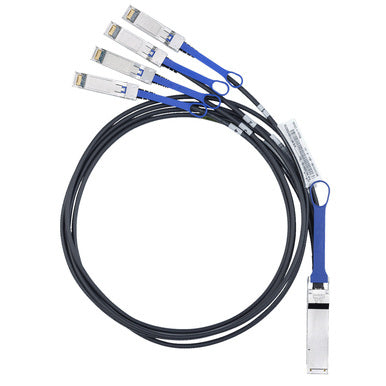

Cisco QSFP-4X10G-AC7M | QSFP+ to 4x SFP+ Breakout Cable, 7m, Active

SKU:QSFP-4X10G-AC7M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is an active copper direct-attach breakout cable from the Cisco 40GBASE QSFP range. It connects one 40G QSFP+ port on one end to four 10G SFP+ ports on the other, so a single 40G port can be split into four 10G links. It suits short-reach data centre connectivity, including top-of-rack and end-of-row breakout and 40G-to-10G migration.

The cable is 40GBASE-CR4 to 4x 10GBASE-CU with a 7 m overall length, and the breakout point sits 4 m from the 40G end. The active construction gives a longer copper reach than the passive breakout cables, which stop at 5 m. It uses 26 AWG twinaxial cable with a black PVC jacket and blue pull tabs, and draws 1.5 W at each end from the host port. Link bit-error rate is better than 1E-15 and the assembly operates from 0 to 70 C.

It is a hot-swappable I/O device and meets IEEE 802.3ba, QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8431 and SFF-8461. It is supported on Cisco Nexus 2000/2300 fabric extenders and Nexus 3000, 5000/5600 and 6000 series platforms that support 40G QSFP+ breakout. The 10 m version is QSFP-4X10G-AC10M.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable I/O device for Cisco 40 Gigabit Ethernet QSFP ports
- Splits one 40G QSFP+ port into four 10G SFP+ links
- Active copper construction for 7 m reach, beyond the 5 m limit of passive breakout cables
- Certified and tested on Cisco QSFP 40G ports for performance, quality and reliability
- High-speed electrical interface compliant with IEEE 802.3ba
- QSFP form factor and I2C interface compliant with SFF-8436 and the QSFP MSA
- Exceeds IEEE specifications with link BER better than 1E-15

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: QSFP-4X10G-AC7M
- Cable type: Active direct-attach copper breakout assembly
- Interface: 40GBASE-CR4 QSFP+ to 4x 10GBASE-CU SFP+
- Cable length: 7 m
- Breakout location: 4 m from the 40G end
- Cable AWG: 26
- Power consumption: 1.5 W each end
- Pull tab colour: Blue
- Jacket material: PVC
- Jacket colour: Black
- QSFP end cable diameter: 9 mm
- QSFP end bend radius: 50 mm
- QSFP end face plate distance: 100 mm
- SFP end cable diameter: 5 mm
- SFP end bend radius: 45 mm
- SFP end face plate distance: 70 mm
- Link bit-error rate: better than 1E-15
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3ba, QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and SFF-8461, RoHS 6
- Safety: Cable jacket UL E116441 compliant, ELV compliant

FAQs

Q: What does this cable connect?
A: One end plugs into a 40G QSFP+ port and the other end splits into four SFP+ connectors for 10G ports, so one 40G port serves four 10G devices.

Q: How is the 7 m active cable different from the passive breakout cables?
A: The active version reaches 7 m, while the passive QSFP-4SFP10G-CU series covers 1 to 5 m. The 10 m active option is QSFP-4X10G-AC10M.

Q: Does it need external power?
A: No. It is powered from the host switch port and uses 1.5 W at each end.

Q: Which Cisco platforms support it?
A: It is supported on Cisco Nexus 2000/2300 fabric extenders and Nexus 3000, 5000/5600 and 6000 series platforms that support 40G QSFP+ breakout. The minimum NX-OS release varies by platform, so check the Cisco 40GE Transceiver Compatibility Matrix.

Q: Where does the cable split into four?
A: The breakout point is 4 m from the 40G QSFP+ end, leaving a 3 m run to each of the four SFP+ connectors.
