Cisco QSFP-4SFP10G-CU5M | 40G QSFP+ to 4x 10G SFP+ Breakout DAC, 5m Passive Copper
SKU:QSFP-4SFP10G-CU5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

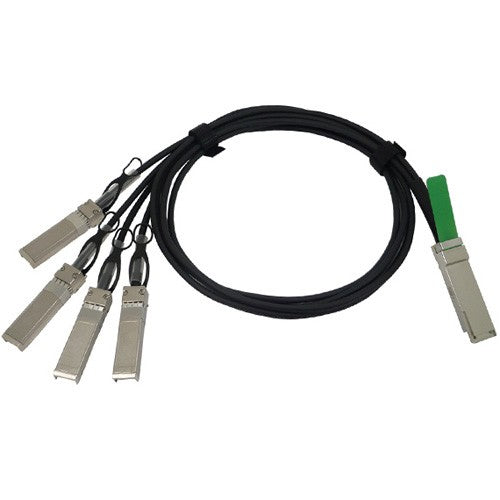

This is a 5m passive twinax copper breakout cable that connects one 40G QSFP+ port to four 10G SFP+ ports. It is built for short-reach data centre links, letting a single 40G switch port serve four 10G server or switch ports within a rack or between adjacent racks.
The cable uses 40GBASE-CR4 on the QSFP+ end and 10GBASE-CU on each of the four SFP+ ends, over passive twinax copper with a 5m reach. Transceivers are integrated into the cable assembly, so there are no separate optics to buy. It draws roughly 1.5 W per transceiver from the host port and needs no external power, with low link latency of approximately 0.25 microsecond.
The 5m length is one of three in this family, alongside the 1m QSFP-4SFP10G-CU1M and 3m QSFP-4SFP10G-CU3M. It is listed in the transceiver support matrices of Cisco Nexus 3000, 5600 and 6000 series switches.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Lets a single 40G QSFP+ port run as four independent 10G links
- Passive twinax copper with integrated transceivers, no separate optics required
- Low-cost, energy-efficient and low-latency for short-reach links
- Suited to in-rack and adjacent-rack cabling
- Draws power from the host port, no external supply
- Listed as supported on Cisco Nexus 3000, 5600 and 6000 series switches
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: QSFP-4SFP10G-CU5M
- Connector A: QSFP+ (40 Gigabit Ethernet, 40GBASE-CR4)
- Connector B: 4 x SFP+ (10 Gigabit Ethernet, 10GBASE-CU)
- Media: Passive twinax copper
- Length: 5 m
- Cable type: Breakout (one 40G port to four 10G ports)
- Maximum power consumption: approximately 1.5 W per transceiver
- Link latency: approximately 0.25 microsecond
- External power: not required, powered from the host port
FAQs
Q: Does this cable need a licence or external power?
A: No. It is a passive cable with no external power, drawing approximately 1.5 W per transceiver from the host port.
Q: Which switches is it listed as supported on?
A: It appears in the transceiver support matrices for Cisco Nexus 3016, 3064, 3164Q, 5624Q/5648Q and 6004 switches. Check the Cisco Transceiver Module Compatibility Matrix for your platform and software release.
Q: How does the 5m version differ from the other lengths?
A: The family shares the same connectors and breakout design. QSFP-4SFP10G-CU1M is 1m and QSFP-4SFP10G-CU3M is 3m, while this 5m model reaches between adjacent racks.
Q: How many links does it provide?
A: One 40G QSFP+ port is split into four 10G SFP+ links, so each SFP+ end connects to a separate 10G port.
