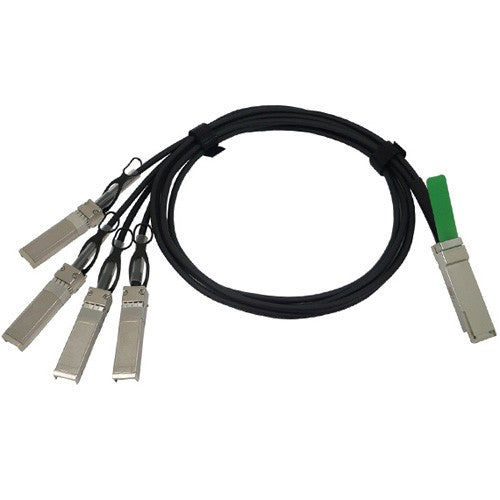

Cisco QSFP-4SFP10G-CU4M | 40G QSFP+ to 4x 10G SFP+ Breakout Cable, 4m, Passive
SKU:QSFP-4SFP10G-CU4M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QSFP-4SFP10G-CU4M is a passive copper breakout cable that connects one 40G QSFP port to four 10G SFP+ ports. It is built for very short, cost-effective links within a rack or across adjacent racks, and suits data centre, high-performance computing, enterprise core and distribution, and service provider environments. A typical use is breaking one 40G switch port out to four 10G servers or switch ports.
The cable is 4 m long and runs 40GBASE-CR4 on the QSFP end to 4x 10GBASE-CU on the SFP+ ends. The breakout point sits 1.5 m from the 40G end. It uses 26 AWG copper conductors with a black PVC jacket and an orange pull tab. Being passive, it needs no external power. The assembly complies with IEEE 802.3ba, the QSFP+ MSA SFF-8436 and the SFP+ MSA SFF-8431 and SFF-8461 specifications.
The QSFP end plugs into a 40G QSFP port on a Cisco switch, and each of the four SFP+ ends plugs into a 10G SFP+ port. It is hot-swappable and has been tested on Cisco QSFP 40G ports for performance, quality and reliability. Check the Cisco Optics-to-Device Compatibility Matrix for supported host platforms.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cost-effective way to connect a 40G QSFP port to four 10G SFP+ ports at very short distances
- Suited to connections within racks and across adjacent racks
- Hot-swappable input/output device
- Tested on Cisco QSFP 40G ports for performance, quality and reliability
- High-speed electrical interface compliant with IEEE 802.3ba
- QSFP form factor and 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: QSFP-4SFP10G-CU4M
- Cable type: Passive direct-attach copper cable assembly
- Interface: 40GBASE-CR4 QSFP to 4x 10GBASE-CU SFP+
- Cable length: 4 m
- Breakout location from 40G end: 1.5 m
- Cable AWG: 26
- Jacket material: PVC
- Jacket colour: Black
- Pull tab colour: Orange
- QSFP end bend radius: 9 mm
- QSFP end face plate distance: 50 mm
- SFP+ end diameter: 5 mm
- SFP+ end bend radius: 45 mm
- SFP+ end face plate distance: 70 mm
- QSFP connector module max dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- QSFP connector module weight: 100 g or less (typical)
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3ba, QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and SFF-8461, RoHS 6
- Safety: Cable jacket UL E116441 compliant, ELV compliant
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper cable and draws no external power.
Q: Where does the cable split into four?
A: The breakout point is 1.5 m from the 40G QSFP end, leaving the four SFP+ legs for the remaining length of the 4 m cable.
Q: What ports does it connect to?
A: The QSFP end plugs into a 40G QSFP port on a Cisco switch, and the four SFP+ ends plug into 10G SFP+ ports. Check the Cisco Optics-to-Device Compatibility Matrix for supported host platforms.
Q: How does this differ from other lengths of this cable?
A: This SKU is the 4 m passive version. Other lengths use the same passive copper design but suit different distances between the 40G port and the 10G ports.
Q: Is this cable suitable for long runs between rooms or floors?
A: No. Passive copper direct-attach cables are intended for very short links, such as within a rack or between adjacent racks.
