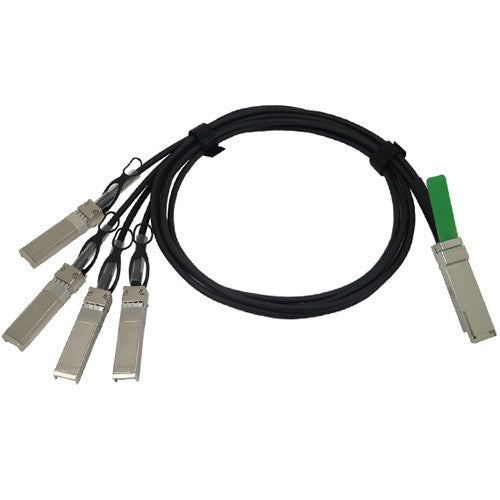

Cisco QSFP-4SFP10G-CU3M | 40G QSFP+ to 4x 10G SFP+ DAC, Passive, 3m, Orange
SKU:QSFP-4SFP10G-CU3M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This passive copper direct-attach breakout cable links a 40G QSFP port on one end to four 10G SFP+ ports on the other. It is designed for very short-reach connections within a rack or across adjacent racks in data centres, high-performance computing and enterprise core and distribution layers.
The interface is 40GBASE-CR4 on the QSFP end splitting to 4x 10GBASE-CU on the SFP+ ends. This SKU is the 3 m length with an orange pull tab. It uses 30 AWG cable with a black PVC jacket, and the breakout point sits 1 m from the 40G end. Being passive, it needs no external power and is hot-swappable. The operating temperature range is 0 to 70 C.
It is intended for Cisco switches and routers with 40G QSFP ports that support 4x10G breakout mode, such as the Nexus 3164Q. Confirm the exact platform in the Cisco Optics-to-Device Compatibility Matrix before ordering.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Connects one 40G QSFP port to four 10G SFP+ ports
- Passive copper design with no external power required
- Cost-effective for short links within racks and across adjacent racks
- Hot-swappable I/O device
- High-speed electrical interface compliant with IEEE 802.3ba
- QSFP form factor and 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
- UL-compliant jacket and ELV-compliant cable
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Interface: 1 x 40G QSFP+ (40GBASE-CR4) to 4 x 10G SFP+ (10GBASE-CU)
- Cable type: Passive copper direct-attach assembly
- Cable length: 3 m
- Breakout location from 40G end: 1 m
- Conductor gauge: 30 AWG
- Pull tab colour: Orange
- Jacket: Black PVC
- QSFP end cable diameter: 7 mm
- QSFP end bend radius: 50 mm
- QSFP end face plate distance: 100 mm
- SFP end cable diameter: 5 mm
- SFP end bend radius: 45 mm
- SFP end face plate distance: 70 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3ba, QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and SFF-8461, RoHS 6
- Safety: Cable jacket UL E116441 compliant, ELV compliant
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper cable and draws power only through the host ports.
Q: What is the maximum reach?
A: This SKU is a 3 m cable, intended for very short links within a rack or between adjacent racks.
Q: Which devices does it work with?
A: It works with Cisco switches and routers that have 40G QSFP ports able to run 4x10G breakout mode, such as the Nexus 3164Q. Check the exact platform in the Cisco Optics-to-Device Compatibility Matrix.
Q: Where does the cable split into four?
A: The breakout point is 1 m from the 40G QSFP end, leaving the remaining length to reach the four 10G SFP+ ends.
Q: How does it differ from other lengths of this breakout cable?
A: This SKU is the passive 3 m version with an orange pull tab. Other lengths use the same 40G QSFP to 4x 10G SFP+ design with a different cable length.
