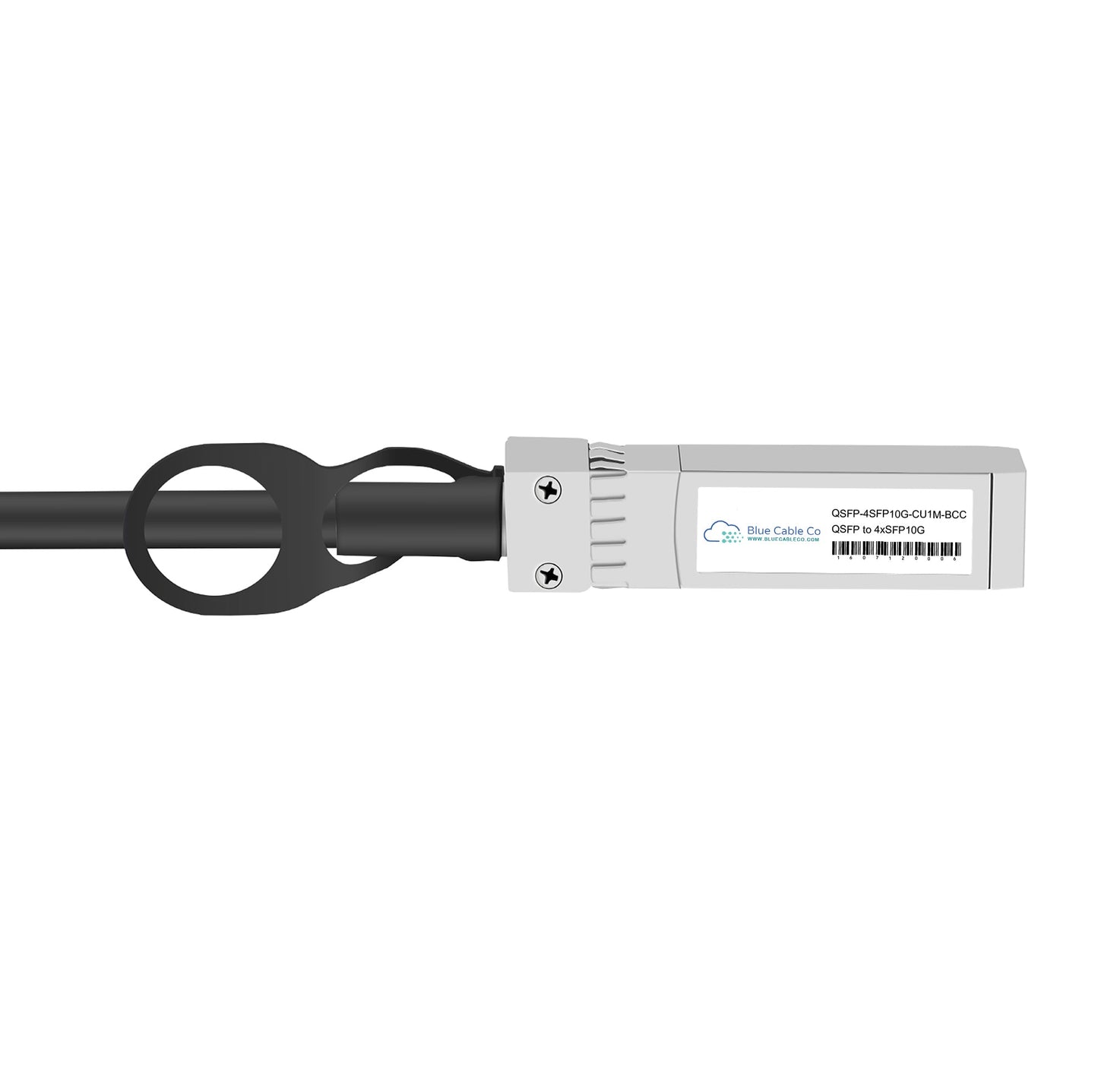

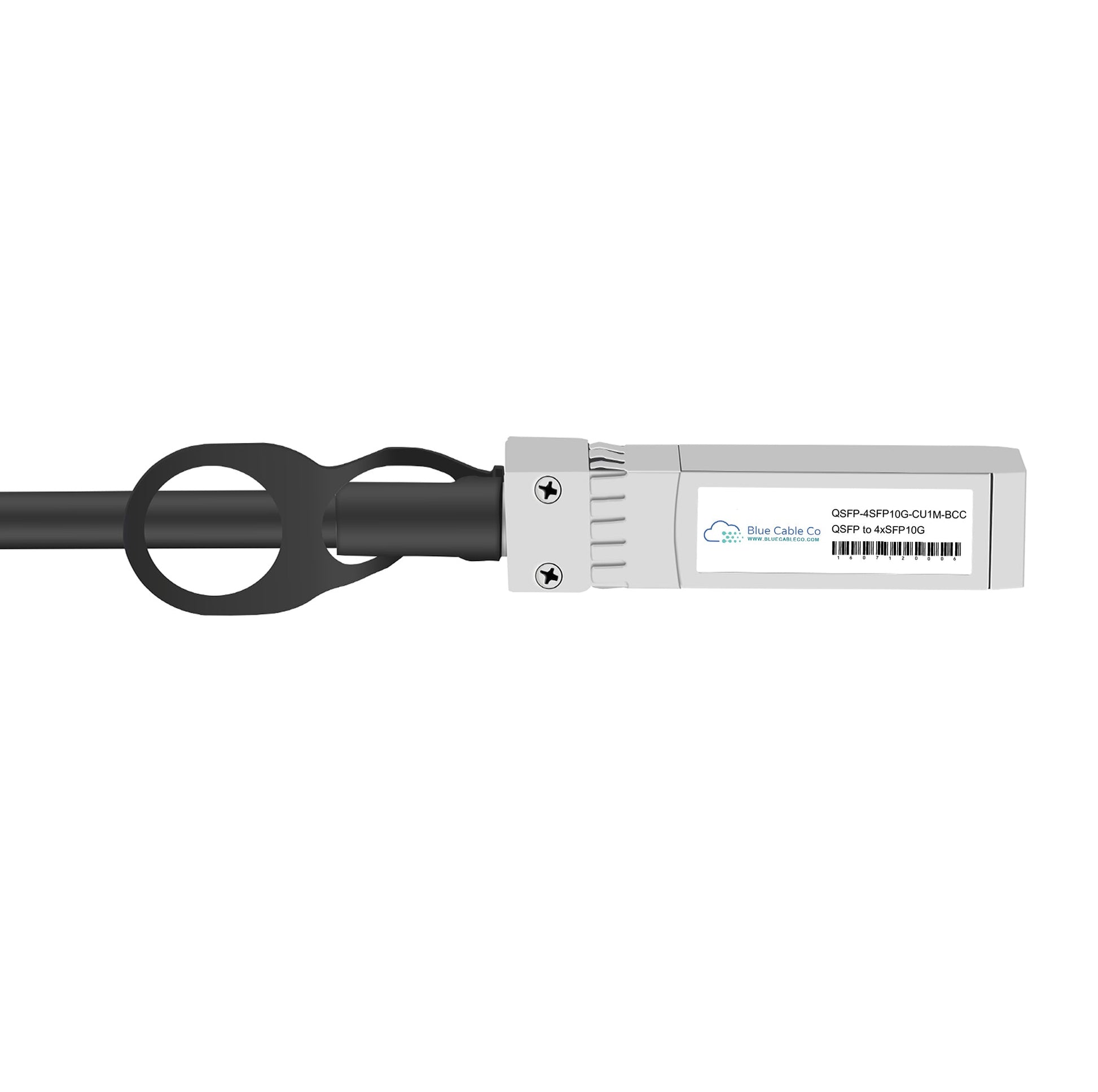

Cisco QSFP-4SFP10G-CU1M | 40G QSFP+ to 4x 10G SFP+ Breakout DAC, 1m Passive
SKU:QSFP-4SFP10G-CU1M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This passive copper breakout cable connects one 40 Gigabit Ethernet QSFP+ port to four 10 Gigabit Ethernet SFP+ ports over a 1 metre run. It suits short-reach top-of-rack and in-rack connections in data centre, high-performance computing, enterprise core and distribution, and service provider environments, where a single 40G switch port needs to be split into four 10G links to servers or switches.
The cable is a 40GBASE-CR4 assembly built from 30 AWG copper with a black PVC jacket and a beige pull tab. The breakout point sits 0.33 m from the 40G QSFP end. Being passive, it has no active electronics, which keeps power draw low and removes the need for external power.
It is supported on Cisco switches and routers with 40G QSFP+ ports, with the 10G ends plugging into SFP+ ports. It meets IEEE 802.3ba, QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8431 and SFF-8461. Check the Cisco Optics-to-Device Compatibility Matrix for the exact supported platforms.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable device that plugs into a 40 Gigabit Ethernet QSFP port
- Splits one 40G port into four independent 10G SFP+ links
- Passive copper design for low-power short-reach connectivity
- High-speed electrical interface compliant with IEEE 802.3ba
- QSFP form factor with 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
- Tested on Cisco QSFP 40G ports for performance, quality and reliability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cable type: Passive direct-attach copper breakout (40GBASE-CR4)
- Connectors: 1 x 40G QSFP+ to 4 x 10G SFP+
- Cable length: 1 m
- Cable gauge: 30 AWG
- Breakout location: 0.33 m from the 40G QSFP end
- Pull tab colour: Beige
- Jacket: Black PVC
- QSFP end cable diameter: 7 mm
- QSFP end bend radius: 50 mm
- QSFP end face plate distance: 100 mm
- SFP end cable diameter: 5 mm
- SFP end bend radius: 45 mm
- SFP end face plate distance: 70 mm
- QSFP connector maximum dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- QSFP connector weight: 100 g or less (typical)
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards: IEEE 802.3ba, SFF-8436, SFF-8431, SFF-8461, RoHS 6
- Safety: Cable jacket UL E116441 compliant, ELV compliant
FAQs
Q: Does this cable need a licence or external power?
A: No. It is a passive copper cable with no licence, subscription or external power required.
Q: What does it connect to?
A: The QSFP+ end plugs into a 40G QSFP+ port and the four SFP+ ends plug into 10G SFP+ ports on servers or switches.
Q: Which platforms support it?
A: It is supported on Cisco switches and routers with 40G QSFP+ ports. Check the Cisco Optics-to-Device Compatibility Matrix for exact supported platforms.
Q: How does the 1m version differ from other lengths?
A: Sibling passive versions are available at 0.5 m, 2 m, 3 m, 4 m and 5 m. The 7 m and 10 m versions (QSFP-4X10G-AC7M and AC10M) are active cables.
Q: Where does the cable split into four?
A: The breakout is located 0.33 m from the 40G QSFP end, leaving the remainder of the 1 m length for the four 10G SFP+ legs.
