Cisco

Cisco QSFP-40GE-LR4 | 40G QSFP+ LR4 Transceiver, SMF, 10km, Duplex LC

SKU:QSFP-40GE-LR4

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

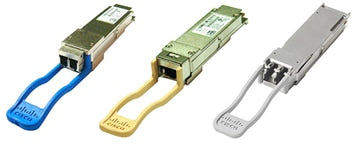

The Cisco 40GBASE-LR4 is a hot-swappable QSFP+ optical transceiver for 40 Gigabit Ethernet over single-mode fibre. It suits data-centre and campus links of up to 10 km, such as spine and leaf, inter-building and inter-row connections on Nexus-class switches.

The module carries 40GBASE-LR4 across four multiplexed CWDM lanes at 1271, 1291, 1311 and 1331 nm, with a nominal wavelength of 1310 nm. Multiplexing and demultiplexing are handled inside the module, so only a standard G.652 single-mode fibre pair with duplex LC connectors is needed. This SKU is the 40GbE-only version with no OTU3 support. Transmit power is -7 to +2.3 dBm per lane, receive power is -13.7 to +2.3 dBm per lane, and typical power draw is 3.5 W from the host port.

It is listed as a supported optic on Nexus 6004 and Nexus 7000 M3-Series 24-port 40GbE modules and interoperates with other 40GBASE-LR4 optics at 10 km over single-mode fibre. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports link lengths up to 10 km over a standard G.652 single-mode fibre pair with duplex LC connectors
- Carries the 40GbE signal over four wavelengths, with multiplexing and demultiplexing handled inside the module
- Hot-swappable QSFP+ module with four independent optical transmit and receive channels
- Listed as a supported optic on Nexus 6004 and Nexus 7000 M3-Series 40GbE modules
- Ethernet-only version of the 40GBASE-LR4 optic, without OTU3 data rate support
- Interoperates with other 40GBASE-LR4 optics at 10 km over single-mode fibre

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: QSFP-40GE-LR4
- Form factor: QSFP+
- Standard: 40GBASE-LR4, SFF-8436 and QSFP MSA
- Data rate: 40 Gigabit Ethernet only (no OTU3)
- Nominal wavelength: 1310 nm
- Lane wavelengths: 1271, 1291, 1311, 1331 nm (4 lanes)
- Cable type: Single-mode fibre (SMF), G.652
- Maximum cabling distance: 10 km (6.2 miles)
- Connector: Duplex LC
- Transmit power per lane: -7 to +2.3 dBm
- Receive power per lane: -13.7 to +2.3 dBm
- Power consumption: 3.5 W
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Pull tab colour: Blue

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required to use the QSFP-40GE-LR4.

Q: What fibre and connector does it use?
A: It uses a standard G.652 single-mode fibre pair terminated with duplex LC connectors, for links up to 10 km.

Q: How does it differ from QSFP-40G-LR4?
A: The QSFP-40GE-LR4 supports 40 Gigabit Ethernet only. The QSFP-40G-LR4 is the sibling that adds OTU3 data rate support.

Q: Which Cisco platforms list it as a supported optic?
A: It is listed as a supported optic on Cisco Nexus 6004 and Nexus 7000 M3-Series 24-port 40GbE modules.

Q: How much power does it draw?
A: Typical module power consumption is 3.5 W, drawn from the host port.
