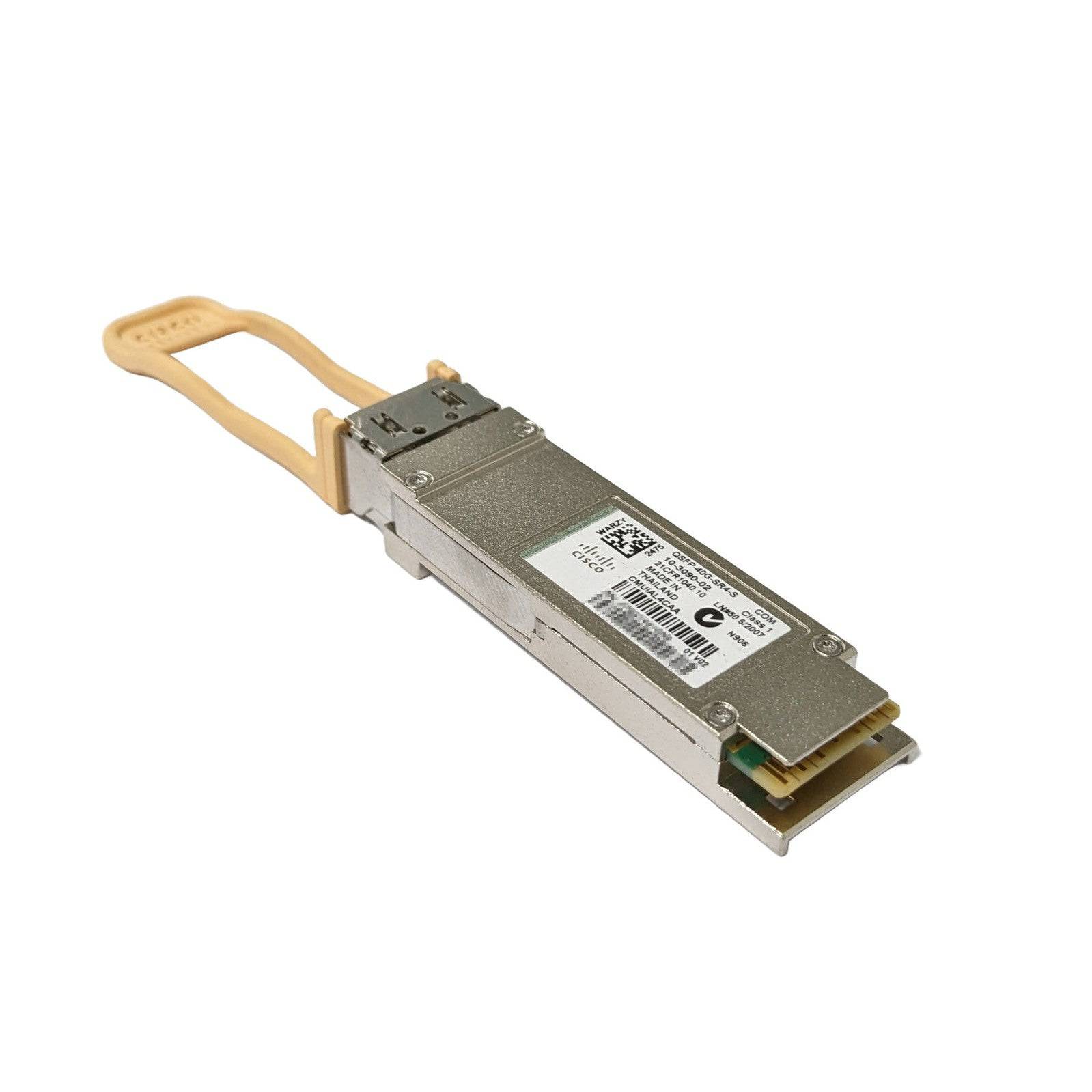

Cisco QSFP-40G-SR4-S | 40G QSFP+ SR4 Transceiver, MPO-12, S-Class, OM3/OM4

SKU:QSFP-40G-SR4-S

$1,849.10 inc. GST
$1,681.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QSFP-40G-SR4-S is an S-Class 40GBASE-SR4 QSFP+ optical transceiver for short-reach 40 Gigabit Ethernet links in data centres and high-performance computing environments. It suits switch-to-switch and switch-to-server connections over parallel multimode fibre and follows the IEEE 40GBASE-SR4 optical specification.

The module runs four lanes at 850 nm over an MPO-12 connector. Reach is 100 m on OM3 and 150 m on OM4/OM5, with the 150 m figure applying to an engineered link with a maximum 1 dB loss budget. Link BER of 1E-12 is guaranteed at those distances. Power consumption is 1.5 W, drawn from the host QSFP+ port, and the operating temperature range is 0 to 70 C. This S-Class variant is a fixed 40G module only. It does not support 4x10G breakout or FCoE.

It works in Cisco switches and routers with QSFP/QSFP+ ports, including the Nexus 5600 platform. It needs MPO/MTP female-terminated 12-fibre multimode cabling in OM3, OM4 or OM5. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- S-Class module aligned to IEEE 40GBASE-SR4 optical specifications
- High-bandwidth 40G links over 12-fibre parallel fibre terminated with MPO/MTP female connectors
- Low power draw of about 1.5 W from the host port
- High-speed electrical interface compliant with IEEE 802.3ba
- 2-wire I2C management interface per SFF-8436 and the QSFP MSA
- Guaranteed link BER of 1E-12 at 100/150/150 m on OM3/OM4/OM5

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Standard: 40GBASE-SR4, 4 lanes, 850 nm MMF
- Form factor: QSFP+ (QSFP MSA SFF-8436)
- Data rate: 40 Gbps
- Connector type: MPO-12
- Nominal wavelength: 850 nm
- Transmit and receive wavelength range: 840 to 860 nm
- Cable type: Multimode fibre (MMF), 50.0 micron core
- Modal bandwidth: 2000 MHzkm (OM3), 4700 MHzkm (OM4/OM5)
- Reach: 100 m (OM3), 150 m (OM4/OM5, engineered link with max 1 dB loss budget)
- Minimum cabling distance: 0.5 m
- Transmit power (max, per lane): 2.4 dBm
- Transmit power (min, per lane): -7.6 dBm
- Receive power (max, per lane): 2.4 dBm
- Receive power (min, per lane): -9.5 dBm
- Power consumption: 1.5 W
- Pull tab colour: Beige
- Link BER: 1E-12 guaranteed at 100/150/150 m on OM3/OM4/OM5
- Laser class: 1
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm (maximum)
- Weight: 100 g or less (typical)
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards: IEEE 802.3ba (-SR4), QSFP+ MSA SFF-8436, GR-1435-CORE, RoHS 6
- FCoE support: No
- 4x10G breakout support: No

Also Known As

QSFP-40G-SR4-S=

FAQs

Q: Does this module need a licence or subscription?
A: No. The QSFP-40G-SR4-S needs no licence or subscription and is powered from the host QSFP+ port.

Q: Can I use it for 4x10G breakout?
A: No. This S-Class module is a fixed 40G module and does not support 4x10G breakout. Use QSFP-40G-SR4 or QSFP-40G-CSR4 for breakout links.

Q: What fibre cabling does it need?
A: It needs MPO/MTP female-terminated 12-fibre multimode cabling. Reach is 100 m on OM3 and 150 m on OM4/OM5.

Q: Does it support FCoE?
A: No. The QSFP-40G-SR4-S does not support FCoE.

Q: Which platforms is it used in?
A: It is used in Cisco switches and routers with QSFP/QSFP+ ports, such as the Nexus 5600 platform. Check the Cisco Optics-to-Device Compatibility Matrix for specific platforms and software versions.
