Cisco

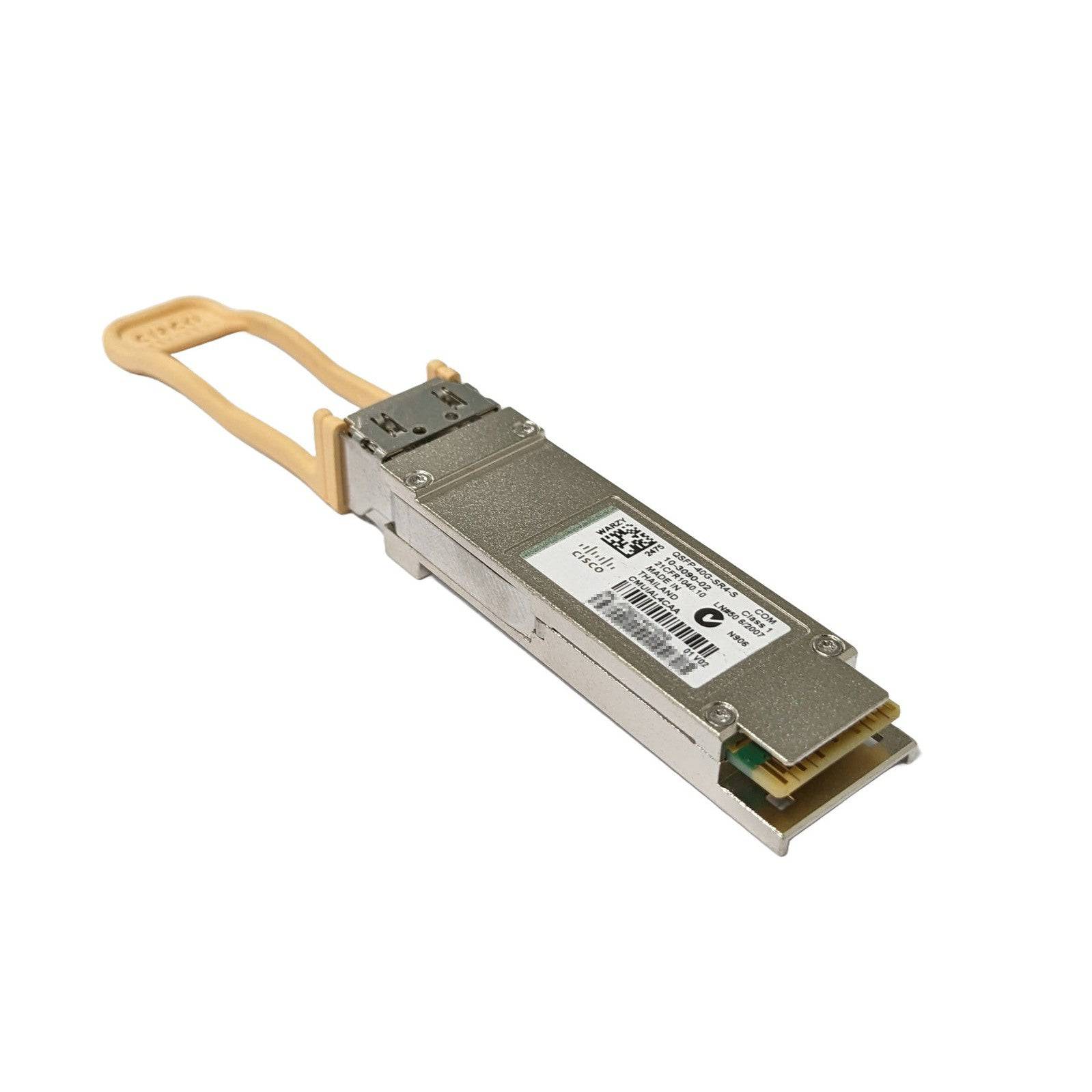

Cisco QSFP-40G-SR4 | 40G QSFP+ SR4 Transceiver, MPO-12, 850nm, 150m OM4

SKU:QSFP-40G-SR4

$3,279.10 inc. GST
$2,981.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

2 in stock

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QSFP-40G-SR4 is a 40GBASE-SR4 QSFP+ optical transceiver for short-reach 40 Gigabit Ethernet over parallel multimode fibre. It suits rack-to-rack links inside the data centre, and it can also be used in 4x10G breakout mode to connect a 40G port to four 10G interfaces.

The module runs 4 lanes at 850 nm over a 12-fibre MPO connector with a beige pull tab. Supported reach depends on the fibre grade: 30 m on OM2, 100 m on OM3 and 150 m on OM4 or OM5. It draws 1.5 W from the host port, with a total loss budget of 1.9 dB on OM3 and 1.5 dB on OM4/OM5 and a BER of 1E-15.

It fits QSFP and QSFP+ 40G ports on Cisco switches and routers and interoperates with other 40GBASE-SR4 modules over MPO-12 parallel fibre. In breakout mode it connects through parallel-to-duplex breakout cables to four 10G interfaces such as FET-10G. For platform-specific support, check the Cisco Transceiver Module Compatibility Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Native 40G optical links over 12-fibre ribbon cable with MPO connectors
- Can run in 4x10G mode with parallel-to-duplex breakout cables to four 10G interfaces
- Supports 30 m on OM2, 100 m on OM3 and 150 m on OM4/OM5 multimode fibre
- Hot-pluggable QSFP+ form factor
- Low 1.5 W power consumption, powered by the host switch port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Part number: QSFP-40G-SR4
- Standard: 40GBASE-SR4, 4 lanes
- Form factor: QSFP+
- Wavelength: 850 nm
- Cable type: Multimode fibre (MMF)
- Core size: 50.0 microns
- Connector: MPO-12 (12-fibre parallel fibre)
- Reach on OM2: 30 m (500 MHzkm)
- Reach on OM3: 100 m (2000 MHzkm)
- Reach on OM4/OM5: 150 m (4700 MHzkm)
- Power consumption: 1.5 W
- Pull tab colour: Beige
- Total loss budget, OM3: 1.9 dB
- Total loss budget, OM4/OM5: 1.5 dB
- BER: 1E-15

Also Known As

QSFP-40G-SR4=

FAQs

Q: What fibre and connector does it need?
A: It needs 12-fibre parallel multimode fibre with an MPO-12 connector. Reach is 30 m on OM2, 100 m on OM3 and 150 m on OM4 or OM5.

Q: Can it be used for 4x10G breakout?
A: Yes. It can run in 4x10G mode using parallel-to-duplex breakout cables to connect to four 10G interfaces, for example FET-10G.

Q: Does it need a licence or external power?
A: No licence is listed for this module. It draws 1.5 W from the host switch port and needs no separate power supply.

Q: Which ports does it work in?
A: It fits QSFP and QSFP+ 40G ports on Cisco switches and routers. Check the Cisco Transceiver Module Compatibility Matrix for specific platforms.

Q: How does it differ from QSFP-40G-SR4-S?
A: QSFP-40G-SR4 supports the 30 m OM2 reach. The S-Class version, QSFP-40G-SR4-S, does not support 30 m on OM2.
