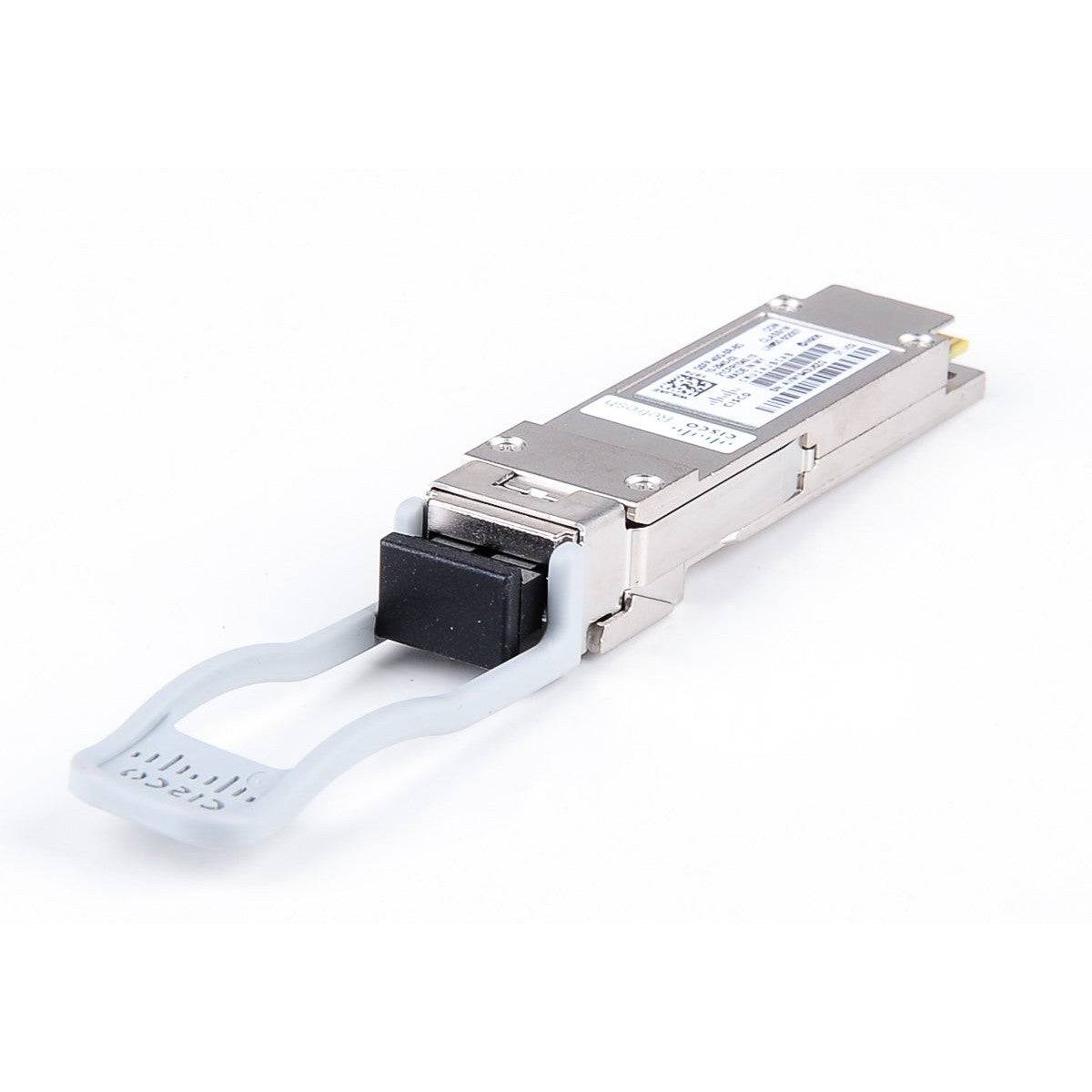

Cisco QSFP-40G-SR-BD | 40G QSFP+ BiDi Transceiver, Duplex LC, 100m OM3
SKU:QSFP-40G-SR-BD
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QSFP-40G-SR-BD is a hot-swappable 40 Gigabit Ethernet BiDi QSFP transceiver from the Cisco 40GBASE QSFP module range. It runs 40G over a standard duplex LC multimode fibre pair, so existing 10G duplex multimode cabling can be reused when moving to 40G without installing MPO-12 parallel fibre. It suits short-reach 40G links in data centres and campus aggregation, such as switch-to-switch uplinks on Nexus or Catalyst platforms.
The module is 40GBASE-SR-BiDi, carrying two 20 Gbps channels in the 832 to 918 nm range for an aggregate 40 Gbps. Reach is 100 m on OM3 and 150 m on OM4 or OM5 over 50 micron multimode fibre, with 30 m supported on OM2. Transmit power is -4 to +5 dBm per lane, receive sensitivity is -6 dBm per lane, and power consumption is 3.5 W. It uses a gray pull tab and operates from +10 to 70 C. No licence or subscription is required.
It works in Cisco QSFP 40G ports and complies with the QSFP MSA. Both ends of a link need BiDi optics, as the module is not directly interoperable with 40GBASE-SR4 (MPO-12) optics. Confirm supported switches and software versions in the Cisco Optics-to-Device Compatibility Matrix.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable module that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Reuses existing duplex 10G multimode fibre infrastructure for migration to 40G
- No MPO-12 parallel cabling required
- Complies with the QSFP MSA specification for use on QSFP 40G platforms
- Certified and tested on Cisco QSFP 40G ports
- Low 3.5 W power draw, powered from the host QSFP port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
Also Known As
FAQs
Technical Specifications
- Standard: 40GBASE-SR-BiDi, duplex MMF
- Form factor: QSFP
- Connector: LC duplex
- Channels: 2 x 20 Gbps, aggregate 40 Gbps
- Wavelength: 832 to 918 nm
- Cable type: MMF, 50.0 micron core
- Modal bandwidth: 500 (OM2), 2000 (OM3), 4700 (OM4/OM5) MHzkm
- Reach: 30 m (OM2), 100 m (OM3), 150 m (OM4/OM5)
- Link loss budget: OM3 100 m 1.9 dB (plus 0.7 dB incremental margin for connector loss); OM4/OM5 150 m 1.5 dB
- BER: 1E-15 on OM3 at 100 m; 1E-12 on OM4/OM5 at 150 m
- Transmit power: -4 to +5 dBm per lane
- Receive power: max +5 dBm, sensitivity -6 dBm per lane
- Power consumption: 3.5 W
- Pull tab colour: Gray
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Weight: 100 grams or less
- Operating temperature: +10 to 70 C (50 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Laser class: 1M
Also Known As
QSFP-40G-SR-BD=
FAQs
Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. The module is powered from the host QSFP port.
Q: Can it link to a 40GBASE-SR4 optic?
A: No. It is not directly interoperable with 40GBASE-SR4 (MPO-12) optics. Both ends of a BiDi link need BiDi optics.
Q: What fibre and distances does it support?
A: It runs over duplex LC multimode fibre with 100 m reach on OM3 and 150 m on OM4 or OM5, and 30 m on OM2.
Q: Where can I confirm which switches support it?
A: It works in Cisco QSFP 40G ports. Cisco's Optics-to-Device Compatibility Matrix (tmgmatrix.cisco.com) lists supported switches and software versions.
Q: Is there a monitoring companion part?
A: Yes. The QSFP-40G-BD-RX monitor module is the companion part for passive-tap monitoring.
