Cisco

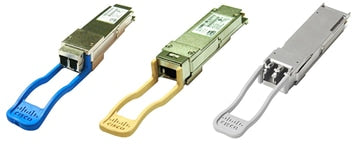

Cisco QSFP-40G-LR4L-S | 40G QSFP+ Transceiver, LR4 Lite, 2km, LC Duplex

SKU:QSFP-40G-LR4L-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 40GBASE-LR4 Lite QSFP+ transceiver is a 40 Gigabit Ethernet optical module designed for single-mode fibre links at campus and data centre distances. It uses a duplex LC connector and operates in the 1310 nm wavelength window, making it suited to short-reach interconnects between switches, routers and aggregation layers where a full 10 km LR4 module is more than the link requires.

The LR4 Lite variant supports reach of up to 2 km over single-mode fibre. It uses the QSFP+ form factor and the 40GBASE-LR4 signalling scheme, which carries four lanes in the 1310 nm band over a single fibre pair. The 2 km reach and LC duplex connection are the attributes that set this module apart from the standard 10 km LR4 and the multimode SR4 options.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 40 Gigabit Ethernet over a single-mode fibre pair
- LR4 Lite optics for reach up to 2 km
- Four-lane signalling in the 1310 nm band
- Duplex LC connector for standard fibre patching
- QSFP+ form factor for high-density 40G ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Standard: 40GBASE-LR4 Lite
- Form factor: QSFP+
- Wavelength: 1310 nm
- Maximum reach: 2 km
- Fibre type: Single-mode
- Connector: Duplex LC

FAQs

Q: What fibre type does this transceiver use?
A: It is designed for single-mode fibre with a duplex LC connector, supporting reach of up to 2 km.

Q: How does the LR4 Lite differ from a standard 40GBASE-LR4 module?
A: The LR4 Lite variant is specified for a 2 km reach, while the standard 40GBASE-LR4 module supports longer links. It suits shorter single-mode runs within a campus or data centre.

Q: What wavelength does it operate at?
A: It operates in the 1310 nm band using four lanes, as defined for 40GBASE-LR4 signalling.

Q: Which port type does it fit?
A: It fits QSFP+ ports that support 40GBASE-LR4 optics.
