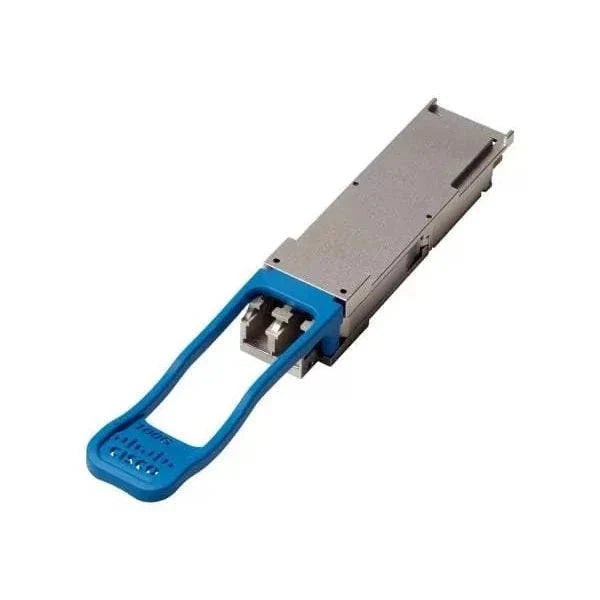

Cisco QSFP-40G-LR4-S | 40G QSFP+ Transceiver, S-Class, SMF, 10km, LC
SKU:QSFP-40G-LR4-S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QSFP-40G-LR4-S is a hot-swappable 40GBASE-LR4 QSFP+ transceiver for single-mode fibre. It suits data centre, high-performance computing, enterprise core and distribution layer, and service provider 40G links that run up to 10 km over a duplex LC pair.
The module carries 40 Gigabit Ethernet over four wavelengths in the 1310 nm window (1271, 1291, 1311 and 1331 nm), with multiplexing and demultiplexing handled inside the module. It is the S-Class variant with a blue pull tab and supports 40GBASE Ethernet only, with no OTU3 or FCoE support. Maximum power consumption is 3.5 W, drawn from the host QSFP port, and the commercial operating range is 0 to 70 C. Per-lane transmit power runs from -7 dBm to 2.3 dBm, and a 1E-12 link BER is guaranteed at 10 km on SMF.
It plugs into Cisco 40G QSFP ports and interoperates with IEEE-compliant 40GBASE-LR4 interfaces. It needs G.652 single-mode fibre terminated with duplex LC connectors. No licence or subscription is required. The sibling QSFP-40G-LR4 adds OTU3 support, which this S-Class model does not have.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable module that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Interoperable with other IEEE-compliant 40GBASE interfaces
- Certified and tested on Cisco QSFP 40G ports for performance, quality and reliability
- High-speed electrical interface compliant with IEEE 802.3ba
- QSFP form factor with a 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
- Four-wavelength multiplexing and demultiplexing handled within the module
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
Also Known As
FAQs
Technical Specifications
- Type: 40GBASE-LR4 QSFP+ transceiver
- Variant: S-Class, 40GBASE Ethernet only (no OTU3)
- Wavelength: 1310 nm (four lanes: 1271, 1291, 1311, 1331 nm)
- Fibre type: Single-mode fibre G.652
- Maximum reach: 10 km
- Connector: Duplex LC
- Power consumption: 3.5 W maximum
- Pull tab colour: Blue
- Transmit power: -7 to 2.3 dBm per lane
- Receive power: -13.7 to 2.3 dBm per lane
- Link BER: 1E-12 guaranteed at 10 km on SMF
- FCoE support: No
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Weight: 100 g or less (typical)
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Laser class: 1
- Standards: IEEE 802.3ba (40GBASE-LR4), QSFP+ MSA SFF-8436, RoHS 6
Also Known As
QSFP-40G-LR4-S=
FAQs
Q: Does the QSFP-40G-LR4-S need a licence or subscription?
A: No. The module needs no licence or subscription. It works as soon as it is seated in a supported 40G QSFP port.
Q: How much power does it draw?
A: It draws a maximum of 3.5 W, supplied by the host QSFP port, so it needs no separate power connection.
Q: What fibre and connectors does it need?
A: It needs G.652 single-mode fibre with duplex LC connectors. It supports links up to 10 km.
Q: What is the difference between this S-Class module and the QSFP-40G-LR4?
A: The QSFP-40G-LR4-S supports 40GBASE Ethernet only. The sibling QSFP-40G-LR4 adds OTU3 support, which this model does not have.
Q: Which platforms does it work with?
A: It plugs into Cisco 40G QSFP ports, for example on Nexus, Catalyst and ASR platforms, and interoperates with IEEE 40GBASE-LR4 interfaces. Check the platform's transceiver compatibility matrix for supported software versions.
