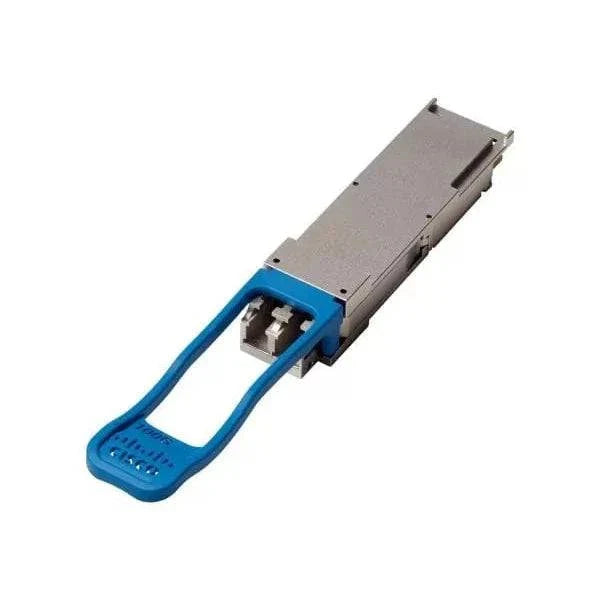

Cisco QSFP-40G-LR4 | 40GBASE-LR4 QSFP Transceiver, SMF, 10km, OTU3
SKU:QSFP-40G-LR4
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QSFP-40G-LR4 is a 40GBASE-LR4 QSFP+ optical transceiver for 40 Gigabit Ethernet links of up to 10 km over a duplex G.652 single-mode fibre pair with LC connectors. It suits switch and router uplinks in data centres, enterprise core and distribution layers, and service provider networks.
Four CWDM wavelengths at 1271, 1291, 1311 and 1331 nm are multiplexed and demultiplexed inside the module, so a single fibre pair carries the full 40G. Unlike the S-Class variant, this SKU also supports the OTU3 data rate, which makes it a fit for optical transport (OTN) applications as well as Ethernet. Typical power consumption is 3.5 W, drawn from the host QSFP port. It is rated for 0 to 70 C operation and has a blue pull tab.
It is supported on Cisco switches and routers with QSFP or QSFP+ ports, and the exact platform and software release should be checked against the Cisco Optics-to-Device Compatibility Matrix before deployment.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Carries 40 Gigabit Ethernet over a standard G.652 single-mode fibre pair with duplex LC connectors
- Four wavelengths are multiplexed and demultiplexed within the module
- Supports the OTU3 data rate for optical transport applications
- Reach of up to 10 km between switches and routers
- Suited to high-density 40G QSFP platforms in data centre, enterprise and service provider networks
- Low power draw of 3.5 W per module
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
Also Known As
FAQs
Technical Specifications
- Form factor: QSFP+
- Standard: 40GBASE-LR4
- Data rate: 40 Gigabit Ethernet, OTU3 data-rate support
- Wavelength: 1310 nm band, four lanes at 1271, 1291, 1311 and 1331 nm
- Fibre type: Single-mode fibre G.652
- Reach: up to 10 km
- Connector: Duplex LC
- Power consumption: 3.5 W
- Transmit power per lane: -7 to 2.3 dBm
- Receive power per lane: -13.7 to 2.3 dBm
- Pull tab colour: Blue
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm (maximum)
- Weight: 100 g or less (typical)
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
Also Known As
QSFP-40G-LR4=
FAQs
Q: Does this module support OTU3?
A: Yes. The QSFP-40G-LR4 supports the OTU3 data rate in addition to 40GBASE Ethernet, which distinguishes it from the S-Class QSFP-40G-LR4-S.
Q: What fibre and distance does it support?
A: It runs over a duplex G.652 single-mode fibre pair with LC connectors, with a reach of up to 10 km.
Q: Which devices does it work with?
A: It works with Cisco switches and routers that have QSFP or QSFP+ ports. Confirm the exact platform and software release in the Cisco Optics-to-Device Compatibility Matrix.
Q: How much power does it use?
A: Typical power consumption is 3.5 W, drawn from the host QSFP port, so no separate power connection is needed.
Q: How does it differ from the QSFP-40G-LR4-S?
A: Both reach 10 km over single-mode fibre, but the QSFP-40G-LR4 also supports the OTU3 data rate, while the S-Class version supports the 40GBASE Ethernet rate only.
