Cisco

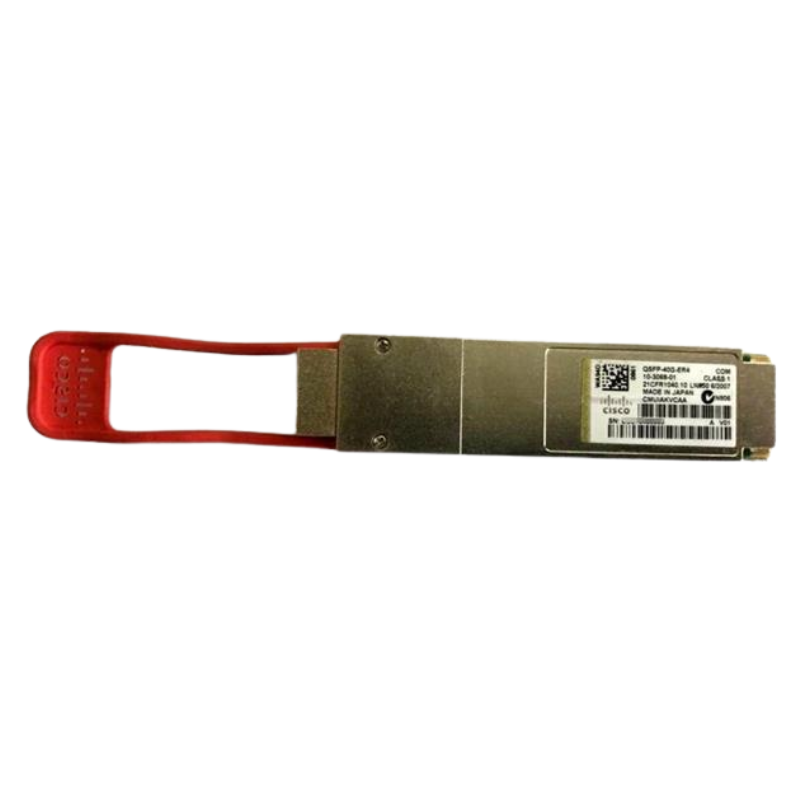

Cisco QSFP-40G-ER4 | 40GBASE-ER4 QSFP+ Transceiver, SMF, 40km, OTU3

SKU:QSFP-40G-ER4

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 40GBASE-ER4 QSFP+ transceiver carries 40 Gigabit Ethernet or OTU3 signals over duplex G.652 single-mode fibre with LC connectors. It is built for long-reach 40G links in data centre, enterprise core and distribution, and service provider networks, including OTU3 transport.

The module reaches up to 40 km using four wavelengths in the 1310 nm range (1271, 1291, 1311 and 1331 nm), with multiplexing and demultiplexing handled inside the module. Links longer than 30 km are engineered links, so attenuation may be required depending on the link architecture. Power consumption is 3.5 W, drawn from the host QSFP port, and the operating temperature range is 0 to 70 C. No licence or subscription is required for the optic itself.

The QSFP-40G-ER4 plugs into Cisco 40G QSFP and QSFP+ ports on Cisco switches and routers. Only patch cords with PC or UPC connectors are supported. It does not provide 4x10G breakout, which is offered by the QSFP-4X10G-LR-S module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable module for 40 Gigabit Ethernet Cisco QSFP ports
- Reaches up to 40 km over duplex single-mode fibre
- OTU3 data-rate support alongside 40GE
- High-speed electrical interface compliant with IEEE 802.3ba
- QSFP form factor and 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
- Four-wavelength multiplexing and demultiplexing handled inside the module
- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Form factor: QSFP+ (40GBASE-ER4)
- Data rate: 40 Gigabit Ethernet, OTU3 support
- Wavelength: four lanes at 1271, 1291, 1311 and 1331 nm
- Fibre type: single-mode fibre (G.652)
- Connector: duplex LC
- Reach: up to 40 km
- Minimum cabling distance: 2 m
- Transmit power: -2.7 to 4.5 dBm per lane
- Receive power: -21.2 to -4.5 dBm per lane
- Bit error rate: guaranteed up to 1E-12
- Power consumption: 3.5 W
- Pull tab colour: Red
- Laser class: 1
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3ba, QSFP+ MSA SFF-8436, SFF-8431/8461, GR-20-CORE, GR-326-CORE, GR-1435-CORE, RoHS 6

Also Known As

QSFP-40G-ER4=

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. The optic itself requires no licence or subscription.

Q: How much power does it draw?
A: It consumes 3.5 W, drawn from the host QSFP port, so no separate power supply is needed.

Q: Which ports does it work with?
A: It plugs into Cisco 40G QSFP and QSFP+ ports on Cisco switches and routers. Check the Cisco Optics-to-Device Compatibility Matrix for supported platforms and software versions.

Q: Can it be used as a 4x10G breakout?
A: No. This module does not offer 4x10G breakout. That is provided by the QSFP-4X10G-LR-S module.

Q: What patch cords are supported?
A: Only patch cords with PC or UPC connectors are supported. Use duplex LC single-mode fibre (G.652).

Q: Are links beyond 30 km supported?
A: Yes, up to 40 km. Links over 30 km are engineered links, and attenuation may be required depending on the link architecture.
