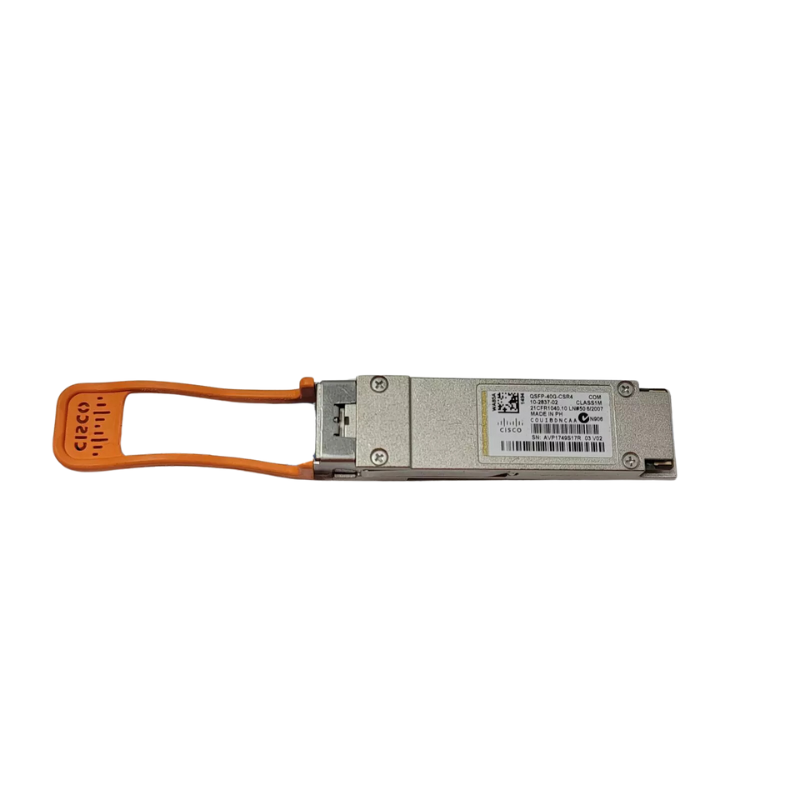

Cisco QSFP-40G-CSR4 | 40G QSFP+ CSR4 Transceiver, MPO-12, 300m OM3, 850nm

SKU:QSFP-40G-CSR4

$2,253.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 40GBASE-CSR4 is a hot-swappable QSFP+ optical transceiver from the Cisco 40GBASE QSFP module family. It extends the standard 40GBASE-SR4 reach over multimode fibre, making it well suited to data centre, high-performance computing, enterprise core and distribution layers, and service provider 40G links that run on laser-optimised fibre.

It operates at 850 nm over four lanes with a 12-fibre MPO connector. Reach is 300 m on OM3 and 400 m on OM4/OM5, with 82 m on OM2. Power consumption is 1.5 W, drawn from the host QSFP+ port. The module can run as a native 40G link, or in 4x10G breakout mode to four 10GBASE-SR interfaces using parallel-to-duplex breakout cables. Each 10G lane complies with 10GBASE-SR specifications.

This transceiver is supported on Cisco switches and routers with 40G QSFP+ ports. It needs female MPO/MTP 12-fibre multimode cabling in OM3, OM4 or OM5. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable module that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Native 40G over 12-fibre parallel cable, or 4x10G breakout via parallel-to-duplex breakout cables
- Each 10G lane complies with IEEE 10GBASE-SR specifications
- High-speed electrical interface compliant with IEEE 802.3ba
- 2-wire I2C management interface compliant with SFF-8436 and the QSFP MSA
- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
- Extended 300 m to 400 m reach on laser-optimised multimode fibre

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Standard: 40GBASE-CSR4, 4 lanes, 850 nm MMF
- Form factor: QSFP+, 40 Gigabit Ethernet
- Connector: MPO-12 (12-fibre parallel, female MPO/MTP)
- Reach: 82 m (OM2), 300 m (OM3), 400 m (OM4/OM5)
- Minimum cabling distance: 0.5 m
- Receive wavelength range: 840 to 860 nm
- Core size: 50.0 microns
- Modal bandwidth: 500 (OM2), 2000 (OM3), 4700 (OM4/OM5) MHzkm
- Transmit power: 0 dBm max, -7.3 dBm min per lane
- Receive power: 0 dBm max, -9.9 dBm min per lane
- Power consumption: 1.5 W
- Pull tab colour: Orange
- Link BER: better than 1E-12
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Weight: 100 g or less
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards: IEEE 802.3ba, IEEE 802.3ae (-CSR4), QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431/8461, RoHS 6

Also Known As

QSFP-40G-CSR4=, QSFP-40G-CSR4-RF

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required, the module is powered from the host QSFP+ port and draws a maximum of 1.5 W.

Q: What fibre and connector does it use?
A: It uses a 12-fibre MPO connector with female MPO/MTP multimode cabling. Reach is 300 m on OM3 and 400 m on OM4/OM5, and 82 m on OM2.

Q: Can it be used as 4x10G breakout?
A: Yes. Using parallel-to-duplex breakout cables, it can connect to four 10GBASE-SR (SFP+) interfaces, with each 10G lane complying with 10GBASE-SR.

Q: Which devices does it work with?
A: It is supported on Cisco switches and routers with 40G QSFP+ ports. Check the Cisco Optics-to-Device Compatibility Matrix for specific platforms.

Q: How does it differ from a standard 40GBASE-SR4 optic?
A: The CSR4 extends reach beyond the standard SR4 to 300 m on OM3 and 400 m on OM4/OM5 over the same MPO-12 parallel multimode fibre.
