Cisco

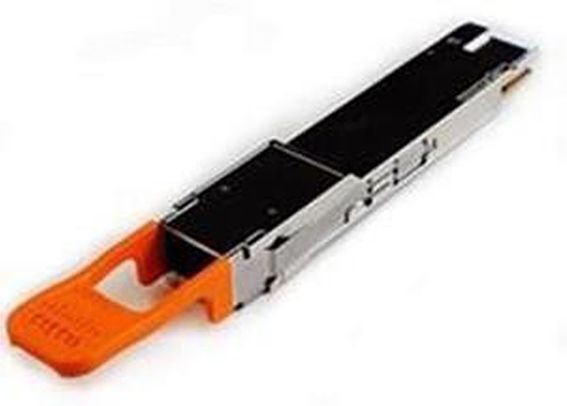

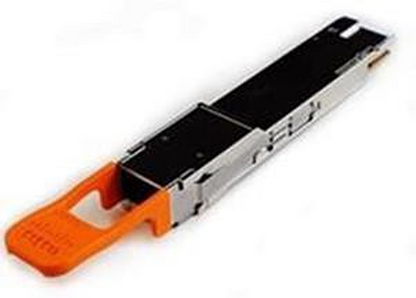

Cisco QSFP-400G-DR4 | 400G QSFP112 Transceiver, 400GBASE-DR4, 500m SMF, MPO-12

SKU:QSFP-400G-DR4

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 400G QSFP112 transceiver is a hot-swappable optical module for 400GBASE-DR4 links over parallel single-mode fibre, reaching up to 500 m. It is built for AI/ML fabrics, HPC and high-density data centre leaf and spine networks, and is primarily used to connect servers through NICs.

The module runs four lanes of 100G PAM4 at a nominal 1310 nm wavelength over an MPO-12 APC connector, with a nominal data rate of 425 Gbps and a maximum supported insertion loss of 3 dB. It supports breakout to 4x100G DR1 or 2x200G DR2, and draws a maximum of 9 W from the host port. No licence or subscription is required.

In breakout mode it interoperates with QDD-400G-DR4-S, QDD-8X100G-FR, QSFP-100G-DR-S, QDD-4X100G-FR-S, QSFP-100G-FR-S, QSFP-100G-LR-S and QDD-4X100G-LR-S over 500 m of SMF at 3 dB. Check the Cisco TMG Compatibility Matrix for specific host support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable and plugs into a 400G QSFP112 port
- Four parallel SMF pairs on MPO-12, one wavelength per fibre
- Breakout to 4x100G DR1 or 2x200G DR2
- Cables are also available for 2x400G and 4x200G breakout from 800G ports
- Compliant with IEEE 802.3 and the QSFP112 MSA (CMIS Rev 4.1)
- Interoperable with other IEEE-compliant 400G interfaces where applicable
- Low power draw of 9 W maximum in a compact, thermally efficient form factor
- Tested and qualified on NICs from Cisco and other manufacturers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP112
- Standard: 400GBASE-DR4
- Nominal data rate: 425 Gbps
- Lane rate: 100G PAM4
- Electrical interface: 400GAUI-4
- Nominal wavelength: 1310 nm
- Fibre type: SMF G.652, parallel
- Reach: 500 m
- Optical connector: MPO-12 APC
- Maximum insertion loss: 3 dB
- Average transmit power per lane: -2.9 dBm to 4 dBm
- Average receive power per lane: -5.9 dBm to 4 dBm
- Pre-FEC BER: 2.4x10-4
- FEC: Performed on the host platform
- Maximum power consumption: 9 W
- Dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Weight (max): 100 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Pull tab colour: Orange
- Laser class: Class 1
- Management: QSFP112 MSA, CMIS Rev 4.1
- Standards: IEEE 802.3ck, IEEE 802.3 400GBASE-DR4, 802.3cd CL136, 802.3cu CL140, 802.3ba CL88
- Compliance: RoHS 6, FCC/ICES, CENELEC, VCCI, NEBS GR-1089

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required to use this module.

Q: How much power does it draw?
A: It draws a maximum of 9 W from the host port and has no separate power supply.

Q: What can it connect to in breakout mode?
A: It supports 4x100G DR1 or 2x200G DR2 breakout and interoperates with QDD-400G-DR4-S, QDD-8X100G-FR, QSFP-100G-DR-S, QDD-4X100G-FR-S, QSFP-100G-FR-S, QSFP-100G-LR-S and QDD-4X100G-LR-S over 500 m of SMF at 3 dB.

Q: What hosts is it intended for?
A: It is primarily supported on NICs that provide Ethernet connectivity to servers, and has been validated on third-party NICs. Check the Cisco TMG Compatibility Matrix for specific hosts.

Q: What fibre and connector does it use?
A: It uses parallel single-mode fibre (G.652) with an MPO-12 APC connector, with a maximum reach of 500 m.
