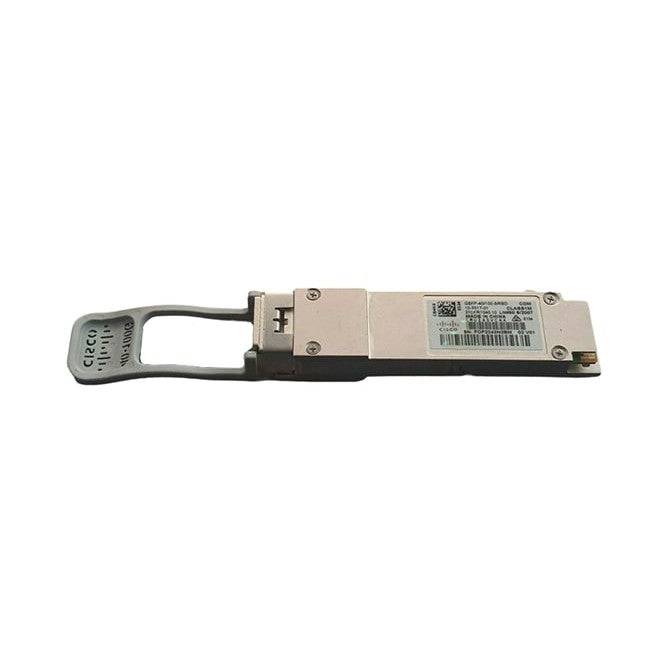

Cisco QSFP-40/100-SRBD | QSFP28 Dual-Rate 40G/100G SR-BiDi Transceiver, 100m OM4
SKU:QSFP-40/100-SRBD
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco QSFP-40/100-SRBD is a dual-rate 40G/100G bi-directional QSFP28 optical transceiver with a duplex LC connector. It is built for short-reach data centre and interconnect links over multimode fibre, and lets you reuse existing duplex 10G multimode cabling when migrating to either 40G or 100G Ethernet.
The same module runs at 40G or 100G. In 100G mode it reaches 70 m on OM3, 100 m on OM4 and 150 m on OM5 fibre. In 40G mode it reaches 100 m on OM3 and 150 m on OM4. It uses 50 micron two-strand multimode fibre with 855 nm and 908 nm wavelengths, and draws 3.5 W from the host port. Operating temperature is +10 to +60 C in 100G mode and +10 to +70 C in 40G mode.
The module is hot-swappable and plugs into a Cisco 100 Gigabit Ethernet QSFP port. It is supported on Cisco switches and routers listed in the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix. Unlike the sibling QSFP-100G-SR1.2, which is 100G only, this SKU also supports 40G operation.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable module for Cisco 100 Gigabit Ethernet QSFP ports
- Dual-rate operation, the same module runs at 40G or 100G
- Reuses existing duplex 10G multimode fibre for migration to 40G or 100G
- Aggregated link over two-strand multimode fibre using two transmit and receive channels
- Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
- Tested on Cisco QSFP-100G ports for performance, quality and reliability
- RoHS 6 compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
Also Known As
FAQs
Technical Specifications
- Form factor: QSFP (QSFP28), dual-rate 40G/100G
- Connector: Duplex LC
- Fibre: 50 micron multimode (OM3/OM4/OM5), two-strand
- Wavelengths: 855 nm and 908 nm
- 100G reach: 70 m OM3, 100 m OM4, 150 m OM5
- 40G reach: 100 m OM3, 150 m OM4
- Modal bandwidth: 2000 MHzkm (OM3), 4700 MHzkm (OM4 and OM5), specified at 850 nm
- Link loss budget, 100G OM4 (100 m): 1.9 dB
- Link loss budget, 40G OM3 (100 m): 1.9 dB
- Transmit power per lane: -6 to +4 dBm (100G), -4 to +5 dBm (40G)
- Receive power per lane: -7.9 to +4 dBm (100G), -6 to +5 dBm (40G)
- Power consumption: 3.5 W
- Operating temperature: +10 to +60 C (100G mode), +10 to +70 C (40G mode)
- Storage temperature: -40 to 85 C
- Laser class: 1M
- Pull tab colour: Gray
- Electrical interface: IEEE 802.3bm compliant, QSFP28 per SFF-8665, management per SFF-8636
Also Known As
QSFP-40/100-SRBD=
FAQs
Q: What reach does it support at 40G and at 100G?
A: At 100G it reaches 70 m on OM3, 100 m on OM4 and 150 m on OM5. At 40G it reaches 100 m on OM3 and 150 m on OM4.
Q: What fibre and connector does it use?
A: It uses 50 micron two-strand multimode fibre (OM3, OM4 or OM5) with a duplex LC connector, so existing duplex 10G multimode cabling can be reused.
Q: Does it need a licence?
A: No licence is required for the transceiver itself. It is powered by the host QSFP port and draws 3.5 W.
Q: How does it differ from QSFP-100G-SR1.2?
A: QSFP-100G-SR1.2 is 100G only, whereas the QSFP-40/100-SRBD also supports 40G operation, so it suits links that may migrate between 40G and 100G.
Q: Which Cisco platforms support it?
A: Supported platforms are listed in the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix, which covers the Cisco switches and routers with QSFP 100G ports.
