Cisco

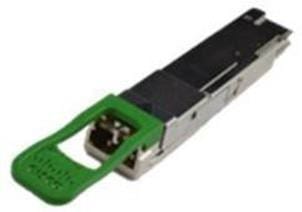

Cisco QSFP-200G-FR4-S | 200G QSFP56 Transceiver, 200GBASE-FR4, 2km SMF, LC

SKU:QSFP-200G-FR4-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QSFP-200G-FR4-S is a hot-swappable 200G QSFP56 optical transceiver for duplex single-mode links up to 2 km. It is aimed at AI/ML data centres, server NICs, data centre switches, high-performance computing and enterprise core and distribution links, as well as service provider applications.

The module meets IEEE 802.3 200GBASE-FR4 and carries the 200GE signal over four CWDM wavelengths at 1270, 1290, 1310 and 1330 nm, with multiplexing and demultiplexing handled inside the module. It uses a duplex LC SMF connector over G.652 fibre and supports a maximum insertion loss of 4 dB. Average transmit power is -4.2 to 4.7 dBm per lane, the host electrical interface is 200GAUI-4, and it operates from 0 to 70 C. FEC is performed on the host platform.

It works in QSFP56 ports and can also operate in higher-speed QSFP112 and QSFP-DD ports. It is supported on Cisco switches, routers and NICs, and interoperates with other IEEE-compliant 200GBASE-FR4 optics. Use PC or UPC duplex LC patch cords only. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable module that plugs into QSFP ports
- Four CWDM wavelengths multiplexed and demultiplexed inside the module
- Interoperable with other IEEE-compliant 200GBASE interfaces
- Compliant with IEEE 802.3, QSFP56 MSA CMIS and OIF 56G PAM4
- Can operate in higher-speed QSFP112 and QSFP-DD ports
- Certified and tested on Cisco ports
- Supported on Cisco switches, routers and NICs, and on third-party host platforms
- RoHS 6 compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Standard: IEEE 802.3 200GBASE-FR4
- Nominal data rate: 200GE
- Form factor: QSFP56
- Connector: Duplex LC SMF (PC/UPC)
- Link reach: 2 km
- Fibre type: SMF G.652
- Nominal wavelengths: 1270, 1290, 1310, 1330 nm
- Average transmit power per lane: -4.2 to 4.7 dBm
- Average receive power per lane (max): 4.7 dBm
- Maximum supported insertion loss: 4 dB
- Pre-FEC BER: 2.4x10-4
- Electrical interface: 200GAUI-4 / OIF CEI-56G-VSR-PAM4
- FEC: Performed on the host platform
- Management interface: CMIS Rev 4.0
- Pull tab colour: Green
- Dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Weight (max): 100 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Laser class: Class 1

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. The module is powered from the host QSFP port.

Q: What patch cords should I use?
A: Use duplex LC single-mode patch cords with PC or UPC polish only. Angled (APC) connectors are not supported.

Q: Can it be used in QSFP112 or QSFP-DD ports?
A: Yes. It works in QSFP56 ports and can also operate in higher-speed QSFP112 and QSFP-DD ports.

Q: Will it link with other vendors' 200GBASE-FR4 optics?
A: Yes. It interoperates with other IEEE-compliant 200GBASE-FR4 optics over single-mode fibre up to 2 km.

Q: How do I check platform support?
A: Check the Cisco Transceiver Modules Compatibility Matrix and the Module Interoperability Matrix for your switch, router or NIC model.
