Cisco

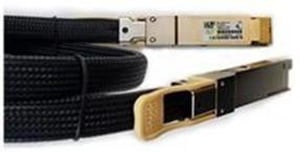

Cisco QSFP-200-CU3M | 200G QSFP56 Passive DAC Cable, 3 m, Orange Pull Tab

SKU:QSFP-200-CU3M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 200G QSFP56 direct attach copper cable (DAC) has a QSFP56 connector at each end and provides a 200GBASE-CR4 link over 3 metres. It suits short-reach connections between switches, routers and server NICs within a rack or across adjacent racks, including data centre, AI/ML, HPC, enterprise core and distribution, and service provider environments.

The passive copper assembly needs no external power and draws a maximum of 1.5 W per end from the host port. It supports 200G and 100G Ethernet rates, uses a 200GAUI-4 C2M high-speed electrical interface (OIF CEI-56G-VSR-PAM4), and is hot-swappable. This 3 m version has an orange pull tab. Forward Error Correction is performed on the host platform, and the cable has no breakout capability.

QSFP56 cables can also operate in higher-speed QSFP112 and QSFP-DD ports. It is supported on Cisco switches, routers and NICs, and on third-party host platforms and NICs. Check the Cisco Transceiver Modules Compatibility Matrix for specific platforms. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable device that plugs into QSFP ports
- Passive copper design with no external power required
- Supports 200G and 100G Ethernet rates
- High-speed electrical interfaces compliant with IEEE 802.3
- Compliant with SFF QSFP56 MSA, CMIS Rev 4.1, OIF 56G PAM4 and IEEE 802.3
- Can also operate in higher-speed QSFP112 and QSFP-DD ports
- Cost-effective for very short links within and between adjacent racks
- Tested on Cisco platforms for performance, quality and reliability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: Passive copper direct attach cable (DAC)
- Connectors: QSFP56 to QSFP56
- Standard: 200GBASE-CR4
- Length: 3 m
- Pull tab colour: Orange
- Nominal data rate: 200GE
- Supported rates: 200G and 100G Ethernet
- High-speed electrical interface: 200GAUI-4 C2M, OIF CEI-56G-VSR-PAM4
- Maximum power consumption: 1.5 W per end
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Cable weight (max): 600 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Breakout capability: None (port-to-port)
- Port compatibility: QSFP56, QSFP112 and QSFP-DD ports
- Standards: QSFP56 MSA, QSFP-DD MSA hardware Rev 4.1, CMIS Rev 4.0, IEEE 802.3-2022
- Compliance: RoHS 6, FCC/ICES, CENELEC, VCCI, Telcordia NEBS, GR-1089

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive cable and requires no licence or subscription.

Q: Does it need external power?
A: No. It is passive and draws a maximum of 1.5 W per end from the host port.

Q: Can it be used in QSFP-DD or QSFP112 ports?
A: Yes. QSFP56 cables can operate in higher-speed QSFP112 and QSFP-DD ports.

Q: Where does Forward Error Correction (FEC) take place?
A: FEC is performed on the host platform, not within the cable.

Q: Can it split into multiple lower-speed links?
A: No. It is a port-to-port cable with no breakout capability, and it supports 200G and 100G Ethernet rates.

Q: Which devices is it supported on?
A: It is supported on Cisco switches, routers and NICs, and on third-party host platforms and NICs. Check the Cisco Transceiver Modules Compatibility Matrix for specific platforms.
