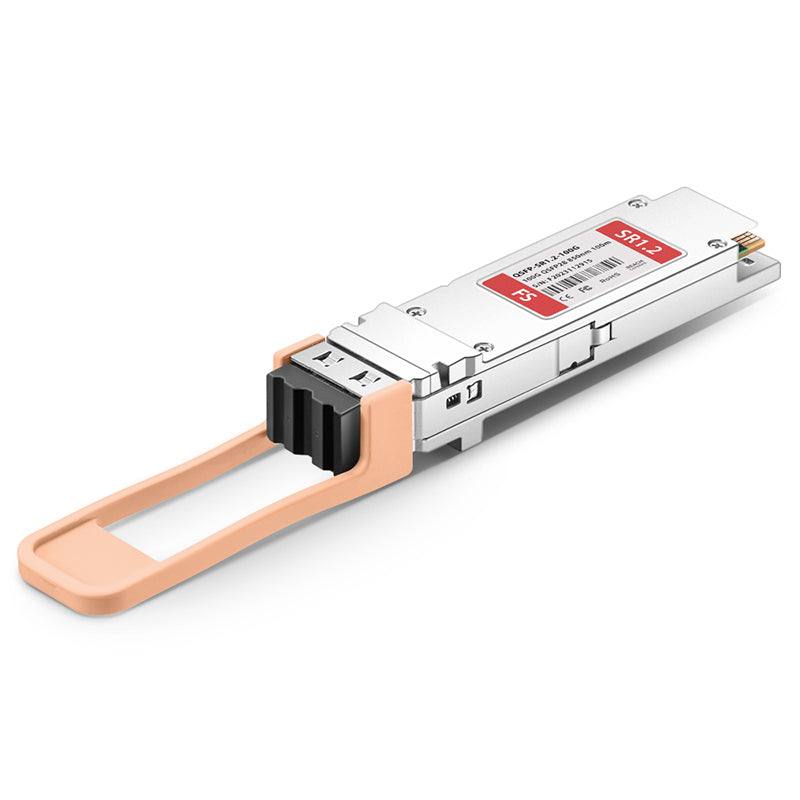

Cisco QSFP-100G-SR1.2 | 100G QSFP28 Transceiver, SR1.2 BiDi, 100m OM4, LC
SKU:QSFP-100G-SR1.2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QSFP-100G-SR1.2 is a 100 Gigabit Ethernet QSFP28 optical transceiver for short-reach links inside the data centre. It uses bidirectional (BiDi) 850nm-class signalling, so each 100G link needs only a single duplex LC multimode fibre pair, making it a practical fit for existing OM3, OM4 and OM5 cabling.
The SR1.2 BiDi standard carries two 50G PAM4 wavelengths on each fibre. Reach is 100m on OM4 multimode fibre, with 70m on OM3 and 150m on OM5 when linked to a QDD-400G-SR4.2-BD module. The link channel insertion loss budget is 1.9 dB, and forward error correction is performed on the host platform. The connector is LC duplex.
This module is designed to be the 100G endpoint for a 4x100G breakout from the Cisco QDD-400G-SR4.2-BD 400G QSFP-DD module. It also interoperates with the QDD-400G-BD module running in 100G mode. Confirm host platform and software support in the Cisco Transceiver Module Compatibility Matrix before deployment.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- BiDi operation carries two 50G wavelengths on each fibre, so only one duplex LC fibre pair is needed per 100G link
- Serves as the 100G breakout endpoint for the Cisco QDD-400G-SR4.2-BD 400G QSFP-DD module (4 x 100GE)
- Interoperates with the QDD-400G-BD duplex MMF 400G QSFP-DD module running in 100G mode
- Supports existing OM3, OM4 and OM5 duplex multimode cabling
- Forward error correction is performed on the host platform
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: QSFP-100G-SR1.2
- Form factor: QSFP28
- Data rate: 100 Gbps
- Standard: SR1.2 BiDi (2 x 50G PAM4 bidirectional wavelengths per fibre)
- Wavelength: 850nm class
- Fibre type: Multimode fibre (MMF), duplex
- Connector: LC duplex
- Maximum reach on OM4: 100 m (link to QDD-400G-SR4.2-BD in 4x100G breakout)
- Maximum reach on OM3: 70 m (link to QDD-400G-SR4.2-BD in 4x100G breakout)
- Maximum reach on OM5: 150 m (link to QDD-400G-SR4.2-BD in 4x100G breakout)
- Link channel insertion loss budget: 1.9 dB (link to QDD-400G-SR4.2-BD in 4x100G breakout)
- Interoperates with: QDD-400G-SR4.2-BD (4 x 100G breakout) and QDD-400G-BD operating in 100G mode (50 m OM3 / 70 m OM4 / 100 m OM5)
FAQs
Q: What fibre and connector does the QSFP-100G-SR1.2 use?
A: It uses a duplex LC connector over multimode fibre. Reach is 100m on OM4 when linked to a QDD-400G-SR4.2-BD module in a 4x100G breakout.
Q: Which 400G modules does it work with?
A: It interoperates with the Cisco QDD-400G-SR4.2-BD in a 4 x 100G breakout, and with the QDD-400G-BD operating in 100G mode.
Q: What reach can I expect on different multimode fibre grades?
A: When linked to a QDD-400G-SR4.2-BD, reach is 70m on OM3, 100m on OM4 and 150m on OM5. The link channel insertion loss budget is 1.9 dB.
Q: Where is forward error correction handled?
A: FEC is performed on the host platform, so confirm that your switch or router supports it for this module.
Q: How do I confirm my switch supports this transceiver?
A: Check your host platform and software release in the Cisco Transceiver Module Compatibility Matrix at tmgmatrix.cisco.com before ordering.
