Cisco

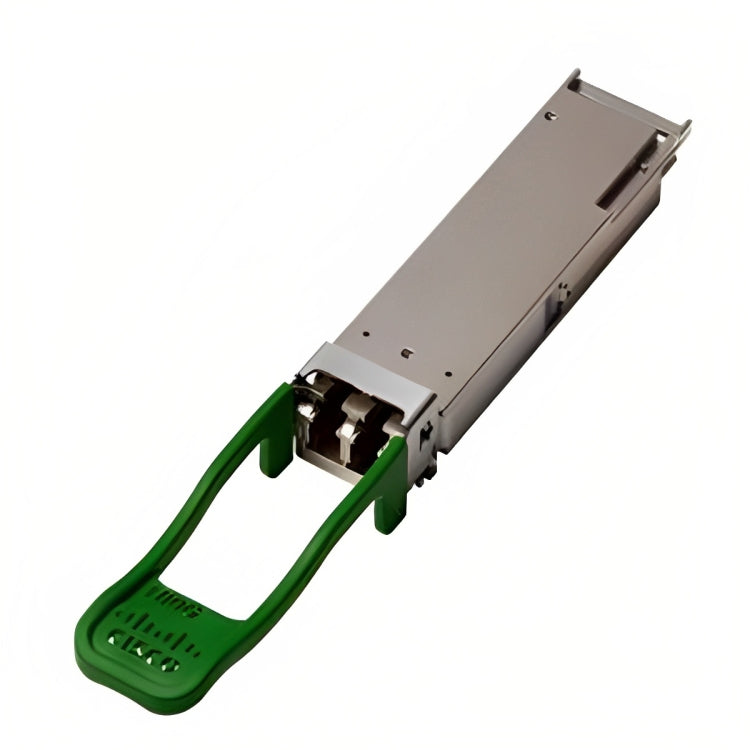

Cisco QSFP-100G-SM-SR | 100G QSFP28 Transceiver, CWDM4 Lite, 2km SMF, 10-60C

SKU:QSFP-100G-SM-SR

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QSFP-100G-SM-SR is a 100GBASE CWDM4 Lite QSFP28 optical transceiver for duplex LC single-mode fibre. It is aimed at data centre, high-performance computing, enterprise core and distribution, and service provider 100GE links that need to run up to 2 km over G.652 fibre.

The module carries the 100GE signal over four CWDM wavelengths at 1271, 1291, 1311 and 1331 nm, with multiplexing and demultiplexing handled inside the module. It has a 4.2 dB optical link budget, draws 3.5 W from the host QSFP port and is rated for an operating temperature of +10 to +60 C. Transmit power is -6.9 to +2.5 dBm per lane and receive power is -11.1 to +2.5 dBm per lane.

It fits Cisco QSFP-100G host ports and is interoperable with the QSFP-100G-CWDM4-S. Check the Cisco Transceiver Module Compatibility Matrix for supported host platforms and software releases.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four-lane CWDM design carries 100GE over duplex single-mode fibre
- Four-wavelength multiplexing and demultiplexing handled within the module
- 4.2 dB link budget gives headroom for patch-panel losses in a data centre link
- Interoperable with QSFP-100G-CWDM4-S
- Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
- Certified and tested by Cisco on QSFP-100G ports
- Low 3.5 W power consumption, powered from the host QSFP port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP28 (100G)
- Standard: 100GBASE CWDM4 Lite
- Connector: LC duplex
- Cable type: G.652 single-mode fibre
- Maximum cable distance: 2 km
- Nominal wavelengths: 1271, 1291, 1311, 1331 nm (four lanes)
- Optical link budget: 4.2 dB
- Transmit power per lane: -6.9 to +2.5 dBm
- Receive power per lane: -11.1 to +2.5 dBm
- Power consumption: 3.5 W
- Pull tab colour: Green
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm (QSFP module maximum outer dimensions)
- Operating temperature: +10 to +60 C (50 to 140 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Electrical interface: IEEE 802.3bm compliant high-speed electrical interface
- Compliance: RoHS 6; Laser Class 1 (IEC 60825-1, IEC 60825-2)

FAQs

Q: How far can the QSFP-100G-SM-SR reach?
A: It supports links of up to 2 km over G.652 single-mode fibre using a duplex LC connection, with a 4.2 dB optical link budget.

Q: Which transceivers is it interoperable with?
A: It is interoperable with the QSFP-100G-CWDM4-S, and with other IEEE-compliant 100GBASE interfaces where applicable.

Q: What operating temperature range does this module support?
A: It is rated for +10 to +60 C, which is what the Lite variant designation refers to. Make sure your installation environment falls within that range.

Q: What fibre and connector does it need?
A: It uses duplex LC connectors on G.652 single-mode fibre. The four CWDM wavelengths are multiplexed inside the module, so a single fibre pair is all that is required.

Q: How much power does it draw?
A: The module consumes 3.5 W, supplied by the host QSFP port.
