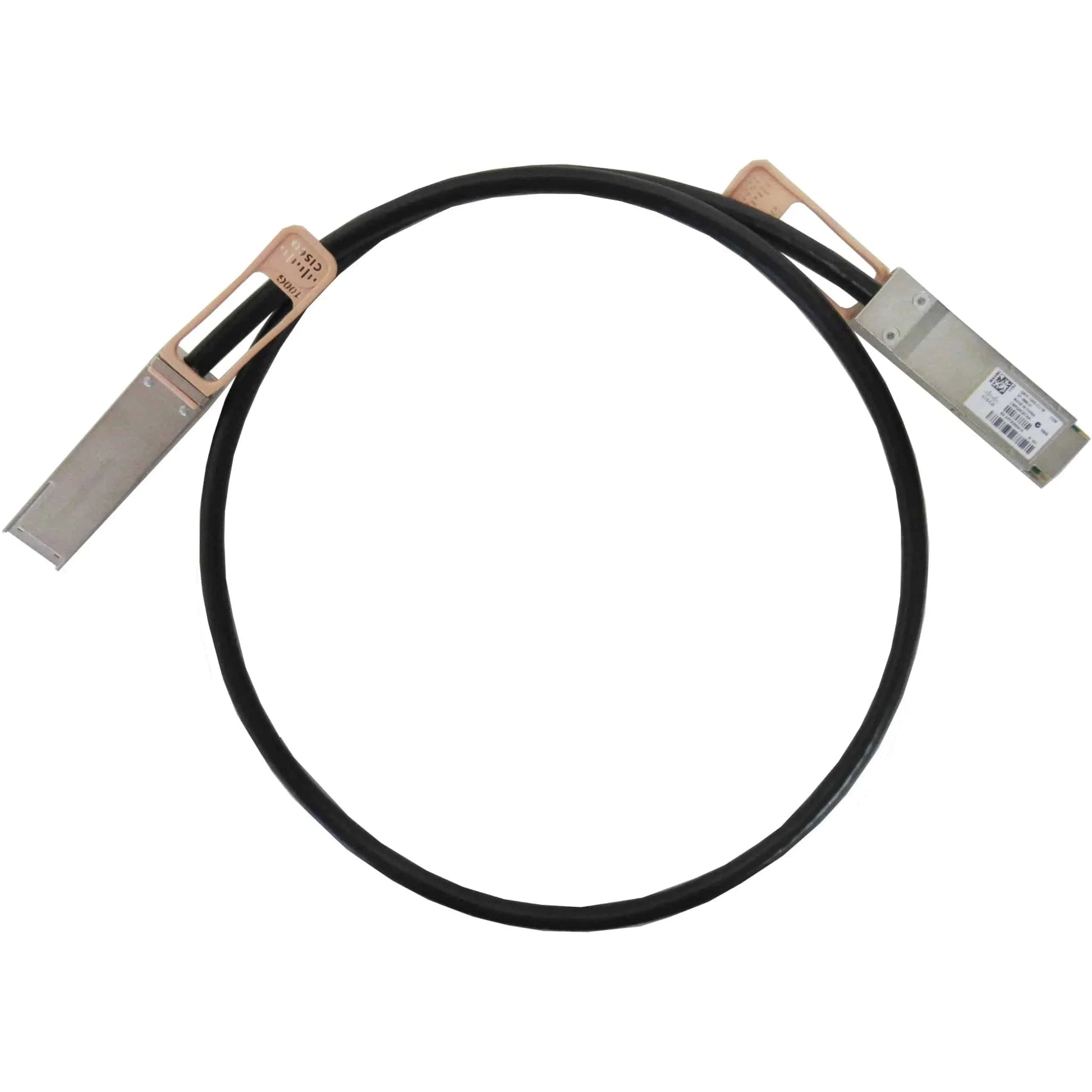

Cisco QSFP-100G-CU2.5M | 100G QSFP28 DAC Passive Copper Cable, 2.5m, Yellow Tab
SKU:QSFP-100G-CU2.5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a 100GBASE-CR4 passive twinax direct attach cable (DAC) with a QSFP28 connector on each end and a 2.5 metre reach. It is built for very short 100 Gigabit Ethernet links between Cisco switches and routers within a rack or across adjacent racks, and suits data centre, high-performance computing, enterprise core and distribution, and service provider networks.
The cable is passive and needs no external power, with connector power listed at 1.5 W per end. It uses a QSFP28 to QSFP28 interface, is hot-swappable, and has a high-speed electrical interface compliant with IEEE 802.3bm. The yellow pull tab and the 2.5 m length separate this part from the other lengths in the QSFP-100G-CU range, which also includes 1, 1.5, 2, 3 and 5 m versions.
It is supported on Cisco platforms with 100G QSFP ports, and is certified and tested on Cisco QSFP-100G ports for performance, quality and reliability. It is a cost-effective alternative to optical transceivers when the link distance is short.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable input/output device that plugs into a 100 Gigabit Ethernet Cisco QSFP port
- Passive twinax copper construction with no external power needed
- High-speed electrical interface compliant with IEEE 802.3bm
- Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
- Certified and tested on Cisco QSFP-100G ports for performance, quality and reliability
- Cost-effective 100G connectivity for very short links within racks and across adjacent racks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: QSFP-100G-CU2.5M
- Standard: 100GBASE-CR4 passive copper direct attach cable
- Connector type: QSFP28 to QSFP28
- Cable length: 2.5 m
- Pull tab colour: Yellow
- Connector power consumption: 1.5 W per end
- Connector module dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Weight: Cisco QSFP connector modules typically weigh 100 g or less
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Electrical interface: IEEE 802.3bm compliant
- Management interface standard: SFF-8636
- Form factor standard: SFF-8665 (QSFP28)
- Ethernet standards: IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm
- Safety: Cable jacket UL E116441 compliant, ELV compliant
- RoHS: RoHS 6
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper cable, so no external power is needed. The connectors draw about 1.5 W per end from the host port.
Q: What equipment does it work with?
A: It works with Cisco switches and routers that have 100G QSFP ports. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix to confirm support on your specific platform.
Q: How does it differ from the other QSFP-100G-CU cables?
A: The difference is length. This part is 2.5 m with a yellow pull tab, while the same range is also available in 1, 1.5, 2, 3 and 5 m lengths.
Q: What is the maximum distance I can run it?
A: This cable is 2.5 m long, so it suits links within a rack or between adjacent racks. Longer runs need a longer cable or an optical transceiver with fibre.
Q: Is the cable hot-swappable?
A: Yes. It can be inserted into or removed from a 100G QSFP port while the switch is powered.
