Cisco

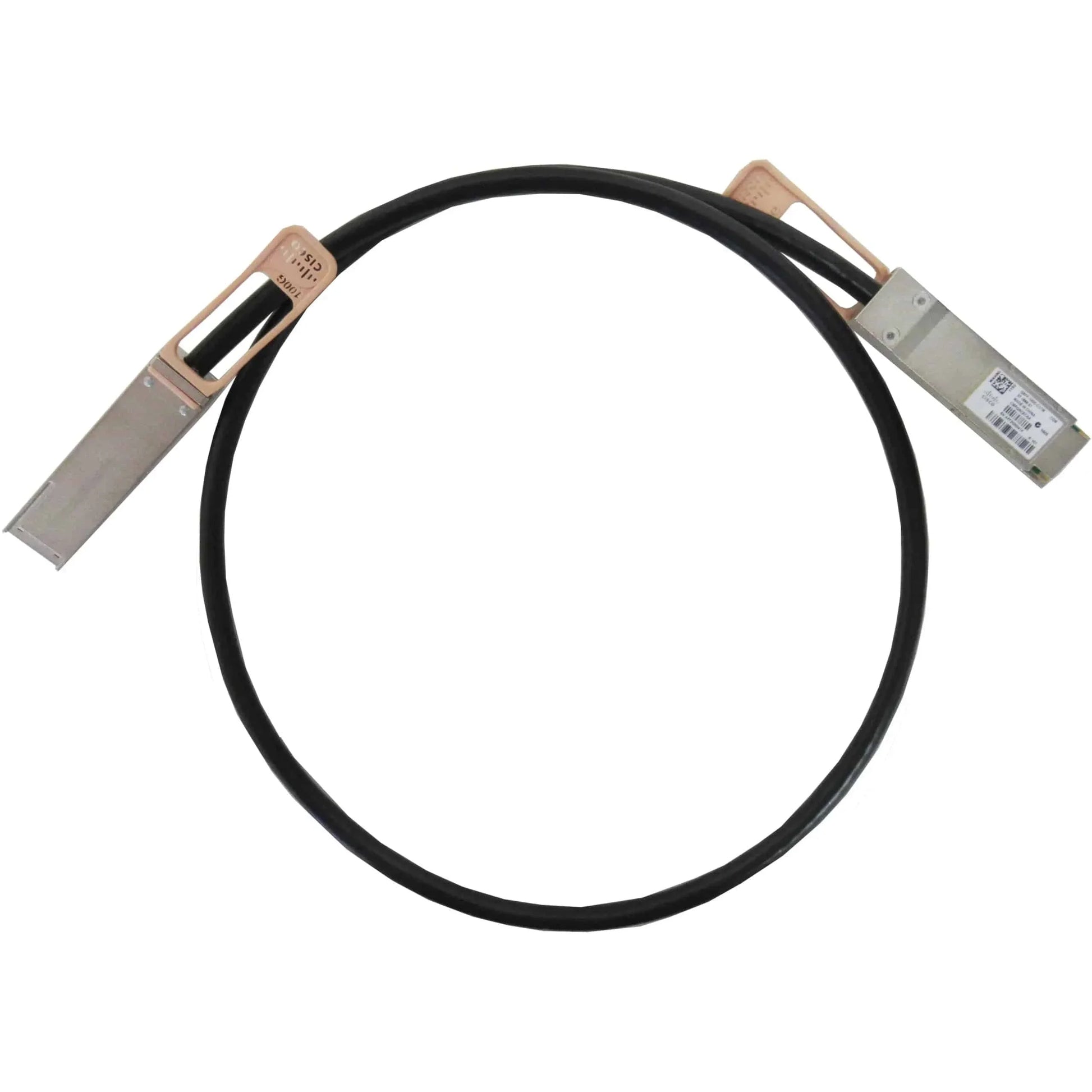

Cisco QSFP-100G-CU0.5M | 100G QSFP28 Passive DAC Cable, 100GBASE-CR4, 0.5m

SKU:QSFP-100G-CU0.5M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 100G QSFP28 passive direct-attach copper cable from the Cisco QSFP-100G range, built for very short 100 Gigabit Ethernet links. It suits connections between QSFP28 ports on Cisco switches inside a rack or across adjacent racks in data centres, HPC networks, enterprise core and distribution layers, and service provider environments.

The cable carries 100GBASE-CR4 over passive copper twinax, with a QSFP28 connector on each end and a length of 0.5 m. The 100 Gbps data rate is delivered as 4 x 25G lanes. Being passive, it needs no external power, which keeps it a cost-effective alternative to optical links at this distance. The QSFP28 form factor uses the SFF-8636 management interface and follows SFF-8665 and IEEE 802.3 standards.

It is intended for Cisco switches and routers with QSFP28 (QSFP-100G) ports. Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for supported platforms and minimum software versions for this specific part.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cost-effective 100G connectivity for very short links within and across adjacent racks
- Passive copper design with no external power needed
- Standards-based QSFP28 form factor with SFF-8636 management interface
- 100GBASE-CR4 operation over 4 x 25G lanes
- Suited to data centre, HPC, enterprise core and distribution, and service provider use
- RoHS 6 compliant with a UL-compliant cable jacket

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product family: Cisco QSFP-100G-CUxM 100GBASE-CR4 QSFP Passive Copper Cable
- Connector (both ends): QSFP28
- Cable type: Passive copper twinax (direct-attach)
- Length: 0.5 m
- Data rate: 100 Gigabit Ethernet (100GBASE-CR4), 4 x 25G lanes
- Power: Passive, no external power required
- Connector module dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Standards: SFF-8665 (QSFP28), SFF-8636 (management interface), IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm
- Cable jacket: UL E116441 compliant
- Copper cable: ELV compliant
- RoHS: RoHS 6

FAQs

Q: Does this cable need external power?
A: No. It is a passive copper twinax cable and needs no external power. It relies only on what the host QSFP28 port supplies.

Q: What ports does it connect to?
A: It connects QSFP28 (QSFP-100G) ports on Cisco switches and routers, with a QSFP28 connector on each end.

Q: How do I confirm it works with my platform?
A: Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for supported platforms and minimum software versions for QSFP-100G-CU0.5M.

Q: What distance does it cover?
A: This variant is 0.5 m long, intended for connections within a rack or between adjacent racks.

Q: How does it differ from the other QSFP-100G-CU cables?
A: The QSFP-100G-CUxM family uses the same 100GBASE-CR4 passive copper design. The variants differ only in cable length, and this one is 0.5 m.
