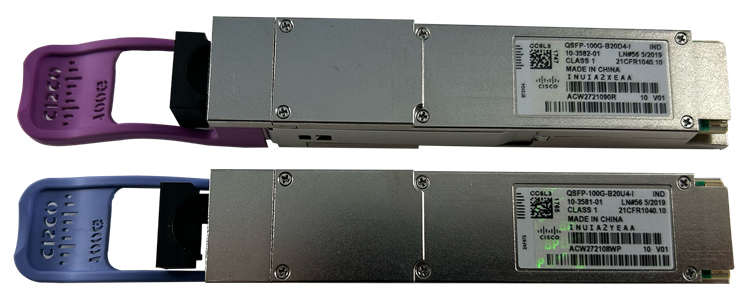

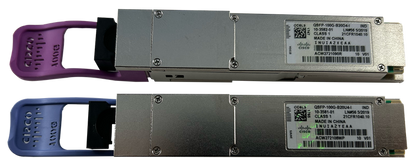

Cisco QSFP-100G-B20U4-I | 100G QSFP28 BiDi Transceiver, 20km SMF, Upstream

SKU:QSFP-100G-B20U4-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QSFP-100G-B20U4-I is a 100G bidirectional QSFP28 transceiver that carries full-duplex 100 Gbps over a single strand of single-mode fibre for up to 20 km. It is the upstream half of a matched pair and is designed for wireless 4G/5G front-, mid- and backhaul aggregation, service provider links connecting business customers to central offices or headends, data centre links to regional sites, and enterprise metro-office links.

This upstream unit transmits at 1296, 1300, 1304 and 1309 nm and receives at 1274, 1278, 1282 and 1287 nm, operating in the O-band with NRZ modulation over G.652 single-mode fibre with a simplex LC connector. Transmit power per lane ranges from -1.3 to 4.5 dBm, and receive power per lane from -12.5 to 4.5 dBm. It is rated for industrial temperatures from -40 to 85 C, draws 5 W across that range (4.5 W from 0 to 70 C), and supports digital optical monitoring. The host port must provide RS-FEC. The Slate Blue pull tab identifies the upstream unit.

This module must be paired with a QSFP-100G-B20D4-I downstream unit at the far end of the link. It fits QSFP28 ports on supported Cisco switches and routers, and Cisco publishes a 100 Gigabit Ethernet transceiver compatibility matrix for host support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full-duplex 100G at up to 20 km over a single strand of single-mode fibre, saving fibre
- Operates in matched pairs with a QSFP-100G-B20D4-I at the far end
- Low-power NRZ modulation in the O-band where fibre dispersion is minimal
- Industrial-temperature operation from -40 to 85 C
- Hot-swappable with digital optical monitoring (DOM) support
- Two pairs over a fibre pair give 200 Gbps with path resiliency
- Tested on Cisco QSFP-100G ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP28
- Data rate: 100 Gbps
- Standard: 100GBASE BiDi (LWDM, O-band)
- Unit type: Upstream, pairs with QSFP-100G-B20D4-I
- Reach: 20 km over G.652 single-mode fibre
- Connector: LC simplex
- Transmit wavelengths: 1296, 1300, 1304 and 1309 nm
- Receive wavelengths: 1274, 1278, 1282 and 1287 nm
- Transmit power per lane: -1.3 to 4.5 dBm
- Receive power per lane: -12.5 to 4.5 dBm
- Modulation: NRZ
- FEC: Host-based RS-FEC required
- Power consumption: 5 W (-40 to 85 C), 4.5 W (0 to 70 C)
- Operating temperature: -40 C cold start, -20 C mission mode to +85 C
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 13.5 x 18.4 x 87.4 mm
- Front panel clearance: 92 mm with short-boot LC connector, 25.4 mm bend radius
- Pull tab colour: Slate Blue
- Digital optical monitoring: DOM supported
- Hot-swappable: Yes
- Standards: SFF-8665, SFF-8636, IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm

FAQs

Q: What does this transceiver pair with?
A: It is the upstream unit and must be paired with a QSFP-100G-B20D4-I downstream unit at the other end of the link.

Q: Does the host port need to support RS-FEC?
A: Yes. This module requires host-based RS-FEC, so the QSFP28 port on your switch or router must support it.

Q: How much fibre does it need?
A: One strand of G.652 single-mode fibre with LC simplex connectors, supporting up to 20 km.

Q: What power does it draw?
A: It draws 5 W maximum across -40 to 85 C, or 4.5 W across 0 to 70 C, powered from the host QSFP28 port.

Q: Which hosts is it compatible with?
A: It works in QSFP28 ports on supported Cisco switches and routers. Cisco publishes a 100 Gigabit Ethernet transceiver compatibility matrix to confirm host support.
