Cisco

Cisco QSFP-100G-B20D4-I | 100G QSFP28 BiDi Transceiver, Downstream, 20km, LC

SKU:QSFP-100G-B20D4-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 100G QSFP28 bidirectional transceiver carries full-duplex 100Gbps over a single strand of G.652 single-mode fibre at up to 20km, using O-band LWDM wavelengths. It suits wireless operators aggregating 4G and 5G front-, mid- and backhaul routers, service providers connecting business customers to central offices or headends, data centres linking regional customers, and enterprises joining metro offices where only one fibre strand is available.

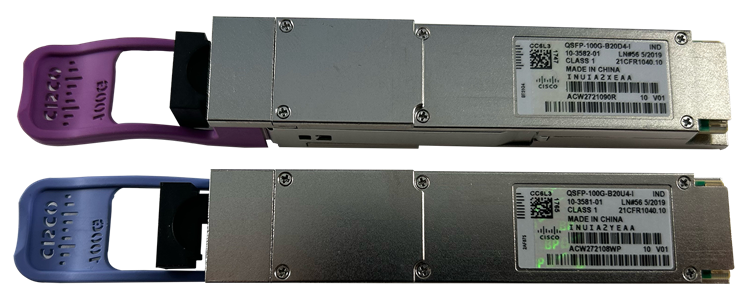

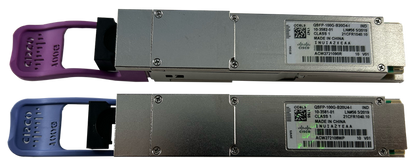

This is the downstream end of the BiDi pair, identified by its purple pull tab. It transmits on 1274, 1278, 1282 and 1287nm and receives on 1296, 1300, 1304 and 1309nm through a simplex LC connector. It uses NRZ modulation, requires RS-FEC on the host and supports Digital Optical Monitoring. Maximum power draw is 5.0W across the full -40 to 85C range, or 4.5W at 0 to 70C. No licence or subscription is required.

It fits QSFP28 ports on supported Cisco platforms and must be paired with a QSFP-100G-B20U4-I at the far end of the link, not with another downstream module. Check the Cisco Optics-to-Device Compatibility Matrix for platform and software support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full-duplex 100Gb at up to 20km on a single strand of single-mode fibre, saving fibre
- Operates in pairs with a QSFP-100G-B20U4-I at the far end
- O-band operation with minimal dispersion and low-latency NRZ modulation
- IEEE-1588 PTP Class C compatible, suited to 5G fronthaul, midhaul and backhaul
- Industrial temperature rated, and also operates in commercial-temperature platforms
- Two upstream and two downstream modules over a fibre pair give 200Gbps with path resiliency
- Hot-swappable with DOM monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP28
- Data rate: 100G
- Standard: 100GBASE BiDi
- Fibre type: Single-mode (G.652)
- Reach: 20km
- Connector: Simplex LC
- Transmit wavelengths: 1274, 1278, 1282 and 1287nm
- Receive wavelengths: 1296, 1300, 1304 and 1309nm
- Modulation: NRZ
- Required host FEC: RS-FEC
- Digital Optical Monitoring: Yes
- Maximum transmit power: 4.5 dBm
- Maximum receive power: 4.5 dBm
- Minimum receive power: -12.5 dBm
- Power consumption: 5.0W max (-40 to 85C), 4.5W max (0 to 70C)
- Operating temperature: -40C cold start, -20C to +85C mission mode, noncondensing
- Storage temperature: -40 to 85C
- Pull tab colour: Purple
- Dimensions (H x W x D): 13.5 x 18.4 x 87.4 mm
- Front panel clearance: 92 mm with short-boot LC connector
- IEEE-1588 PTP: Class C compatible

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required to use this module.

Q: What goes at the other end of the link?
A: It must be paired with a QSFP-100G-B20U4-I upstream module. Two downstream modules cannot be paired with each other.

Q: What does the host port need to support?
A: It needs a QSFP28 port that supports RS-FEC, which this module requires. Check the Cisco Optics-to-Device Compatibility Matrix for platform and software support.

Q: How much power does it draw and does it need extra cooling?
A: It draws up to 5.0W across the full industrial temperature range, or 4.5W at 0 to 70C. That is more than many QSFP28 optics, so the host platform needs adequate cooling.

Q: How does this differ from the upstream version?
A: This downstream module transmits on 1274 to 1287nm and receives on 1296 to 1309nm, and has a purple pull tab. The upstream QSFP-100G-B20U4-I uses the opposite wavelength plan and a slate blue pull tab.
