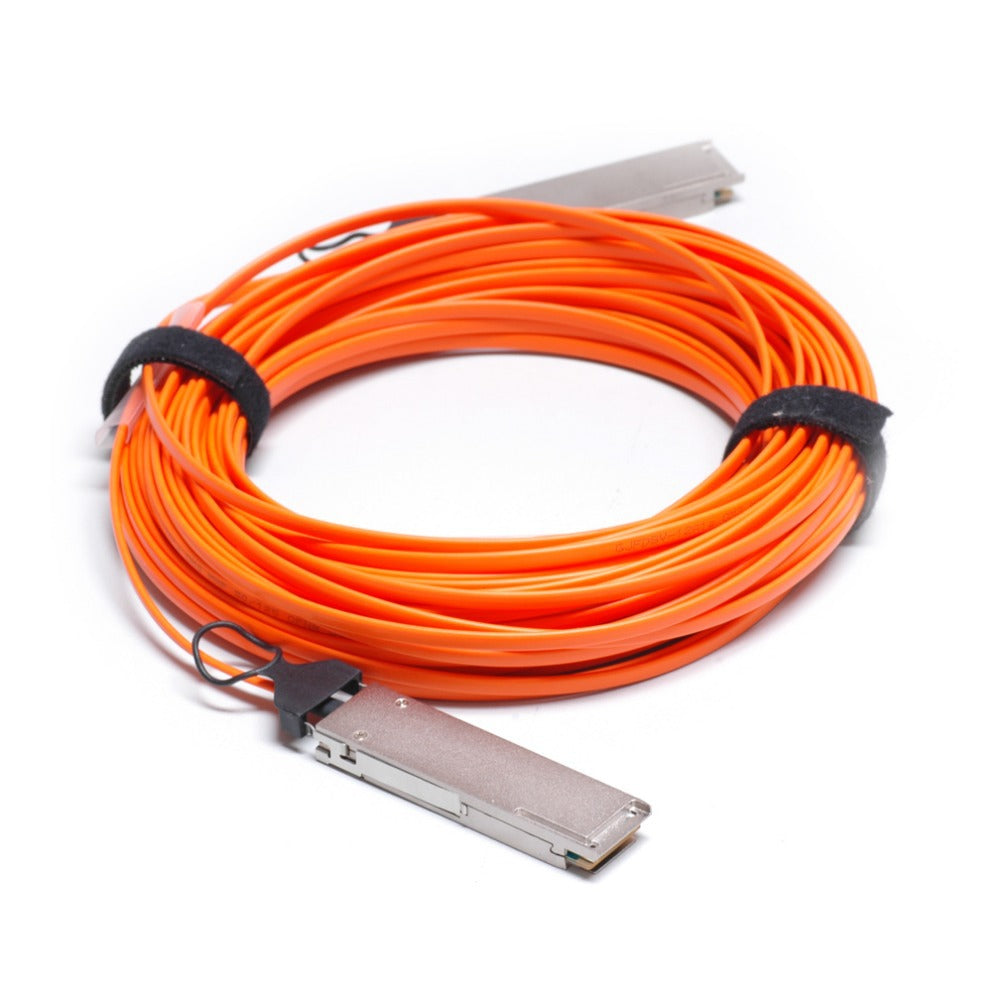

Cisco QSFP-100G-AOC10M | 100G QSFP28 Active Optical Cable, 10 m, Red Tab
SKU:QSFP-100G-AOC10M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QSFP-100G-AOC10M is a fixed-length 10 m QSFP28-to-QSFP28 active optical cable from the Cisco 100GBASE QSFP range. It is built for short-reach 100 Gigabit Ethernet links within and across racks in data centres, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
The cable carries 4 x 25G lanes between two QSFP28 ports, with the optical engines built into each connector end. Each end draws 3.5 W from the host port, so no separate power supply is needed. This 10 m version has a red pull tab, a 3.5 mm cable diameter and a 30 mm minimum bend radius. It is much thinner and lighter than copper cabling, which makes cable management easier and helps airflow in dense racks.
It is a hot-swappable I/O device with an IEEE 802.3bm compliant high-speed electrical interface, and it is certified and tested on Cisco QSFP-100G ports. It is supported on Cisco switches and routers with QSFP28 100G ports. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for specific platforms and software versions.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable I/O device that plugs into a Cisco 100G QSFP port
- Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
- Certified and tested on Cisco QSFP-100G ports for performance, quality and reliability
- High-speed electrical interface compliant with IEEE 802.3bm
- Thinner and lighter than copper cable, which simplifies cable management
- Supports efficient system airflow in high-density racks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: QSFP-100G-AOC10M
- Product type: Active optical cable assembly
- Connectors: QSFP28 to QSFP28 (4 x 25G)
- Cable distance: 10 m
- Power consumption: 3.5 W per end
- Pull tab colour: Red
- Cable diameter: 3.5 mm
- Minimum bend radius: 30 mm
- Maximum connector module dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Connector module weight: typically 100 g or less
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Electrical interface: IEEE 802.3bm compliant high-speed electrical interface
- Standards: SFF-8665 (QSFP28), SFF-8636, IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm
- Compliance: RoHS 6
- Laser safety: Class 1 per IEC 60825-1 and IEC 60825-2
FAQs
Q: Does this cable need a separate power supply?
A: No. It draws 3.5 W per end from the host QSFP28 port, so no separate power supply is needed.
Q: Which devices is it supported on?
A: It is supported on Cisco switches and routers with QSFP28 100G ports. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for specific platforms and software versions.
Q: Is the cable length adjustable or can the ends be replaced?
A: No. It is a fixed-length 10 m assembly with the optical modules permanently attached at both ends.
Q: How does it differ from other QSFP-100G AOC lengths?
A: This SKU is the 10 m length with a red pull tab. Other lengths in the range are separate part numbers with the same QSFP28-to-QSFP28 4 x 25G design.
Q: What is the minimum bend radius?
A: The minimum bend radius is 30 mm, and the cable diameter is 3.5 mm.
