Cisco

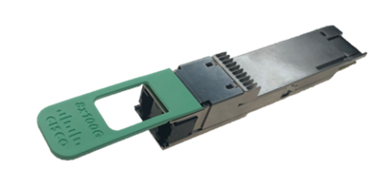

Cisco QDD-8X100G-FR | QSFP-DD800 8x100G FR1 Transceiver, 2km SMF, Dual MPO-12

SKU:QDD-8X100G-FR

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This QSFP-DD800 transceiver is built for data centres, high-performance computing networks, enterprise core and distribution layers, and service provider applications. It carries eight 100G lanes over single-mode fibre at 1310 nm and can run as a native 800G link, as two independent 400GBASE-DR4 links, or as an 8x100G breakout to QSFP28 optics.

The module reaches up to 2 km over G.652 parallel single-mode fibre using dual MPO-12 APC connectors. It uses the 800GAUI-8 electrical interface, draws a maximum of 17 W from the host port and operates from 0 to 75 C. It complies with IEEE 800GBASE-DR8-2, 400GBASE-DR4-2 and 100GBASE-FR1, and no licence or subscription is required. The 8x100G FR1 breakout can connect to QSFP28 100G-DR (up to 500 m), 100G-FR (up to 2 km) and 100G-LR (up to 2 km) optics.

It fits Cisco QSFP-DD 800G ports and is backward compatible with QSFP+, QSFP28, QSFP56 and QSFP-DD 400G modules. It requires patch cords with APC (angled) MPO connectors, and platform support should be checked against the Cisco TMG Compatibility Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable QSFP-DD800 module
- Compliant with IEEE 800GBASE-DR8-2, 400GBASE-DR4-2 and 100GBASE-FR1, and interoperable with other IEEE-compliant 800G modules regardless of form factor
- Breaks out 8x100G to QSFP28 100G-DR (up to 500 m), 100G-FR (up to 2 km) and 100G-LR (up to 2 km)
- Can be used as two independent 400GBASE-DR4 transceivers in a single port
- FEC is performed on the host platform
- Backward compatible: QSFP-DD800 ports accept QSFP+, QSFP28, QSFP56 and QSFP-DD 400G modules
- Optical and coding compliant to QSFP-DD MSA CMIS Rev 5.3, OIF 112G PAM4 and 100G Lambda MSA

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: QDD-8X100G-FR
- Form factor: QSFP-DD800
- Nominal data rate: 800GE
- Lanes: 8 x 100G (8x100GBASE-FR1 / 800G-DR8-2)
- High-speed electrical interface: 800GAUI-8
- Optical connector: Dual MPO-12 APC
- Nominal wavelength: 1310 nm
- Cable type: SMF (G.652), parallel
- Cable distance: 2 km
- Pull tab colour: Green
- Max power consumption: 17 W
- Average transmit power per lane: -2.9 to 4 dBm
- Average receive power per lane: -5.9 dBm (min, informative) to 4 dBm (max)
- Maximum supported insertion loss: 4 dB
- Pre-FEC BER: 2.4x10-4
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Module weight: 100 g maximum
- Operating temperature: 0 to 75 C
- Storage temperature: -40 to 85 C
- Laser class: 1
- Standards compliance: IEEE 800GBASE-DR8-2, 400GBASE-DR4-2, 100GBASE-FR1; QSFP-DD MSA CMIS Rev 5.3

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required to use it.

Q: How much power does it draw?
A: Maximum power consumption is 17 W, drawn from the host QSFP-DD port.

Q: What fibre patch cords does it need?
A: It uses dual MPO-12 connectors with an APC (angled) polish, so patch cords must have APC MPO connectors rather than PC or UPC. The fibre must be G.652 single-mode, up to 2 km.

Q: Can it break out to 100G optics?
A: Yes. It can break out 8x100G to QSFP28 100G-DR (up to 500 m), 100G-FR (up to 2 km) and 100G-LR (up to 2 km) optics. It can also run as two independent 400GBASE-DR4 links.

Q: Which ports does it fit?
A: It fits Cisco QSFP-DD 800G ports and is backward compatible with QSFP+, QSFP28, QSFP56 and QSFP-DD 400G modules. Check the Cisco TMG Compatibility Matrix for platform support.
