Cisco

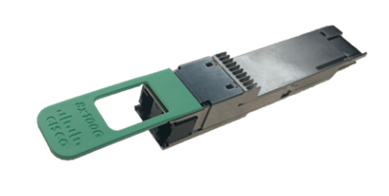

Cisco QDD-800G-DR8 | 800G QSFP-DD800 DR8 Transceiver, SMF, 500m, MPO-12

SKU:QDD-800G-DR8

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 800G QSFP-DD800 DR8 transceiver is a pluggable optical module for single-mode fibre links up to 500m, built for Cisco QSFP-DD 800G ports. It suits data centre, high-performance computing and AI networking environments that need high-density 800G connectivity.

It operates as an 800GBASE-DR8 module over single-mode fibre (SMF) with an MPO-12 connector, reaching up to 500m. It can also be used for breakout to 2 x 400G-DR4. In the same family, the QDD-800G-VR8 is the multimode 50m option, so this module is the choice when links need longer single-mode reach.

The QSFP-DD800 form factor is hot-swappable and management is through CMIS Rev 5.3. QSFP-DD800 ports also accept QSFP+, QSFP28, QSFP56 and QSFP-DD 400G modules, and forward error correction is performed on the host platform. It is supported on Cisco QSFP-DD 800G ports and is a listed optic in Cisco 8000 SONiC release notes. Check the Cisco Transceiver Modules Compatibility Matrix for exact platform support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable QSFP-DD800 module
- Certified and tested on Cisco QSFP-DD 800G ports
- 800GBASE-DR8 over single-mode fibre up to 500m
- Supports breakout to 2 x 400G-DR4
- QSFP-DD800 ports accept QSFP+, QSFP28, QSFP56 and QSFP-DD 400G modules
- Forward error correction performed on the host platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: QSFP-DD800
- Standard: 800GBASE-DR8
- Fibre type: Single-mode fibre (SMF)
- Reach: up to 500m
- Connector: MPO-12
- Breakout: 2 x 400G-DR4
- Management interface: CMIS Rev 5.3
- Laser class: 1
- Operating temperature: 0 to 75 C
- Storage temperature: -40 to 85 C
- Module weight: 100 g maximum
- Dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm

FAQs

Q: How does the QDD-800G-DR8 differ from the QDD-800G-VR8?
A: The QDD-800G-DR8 runs over single-mode fibre up to 500m using MPO-12. The QDD-800G-VR8 is the multimode option with a shorter 50m reach.

Q: Which ports does this transceiver work with?
A: It is designed for Cisco QSFP-DD 800G ports and is a listed optic in Cisco 8000 SONiC release notes. Check the Cisco Transceiver Modules Compatibility Matrix for exact platform support.

Q: What fibre and connector does it need?
A: It needs single-mode fibre terminated with an MPO-12 connector, for links up to 500m.

Q: Can it be used for 400G breakout?
A: Yes, it supports breakout to 2 x 400G-DR4.

Q: Can it be installed in older QSFP ports?
A: The QSFP-DD800 form factor is intended for QSFP-DD 800G ports. Those ports also accept QSFP+, QSFP28, QSFP56 and QSFP-DD 400G modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
