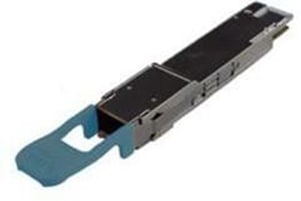

Cisco QDD-4X100G-LR-S | 400G QSFP-DD Transceiver, 4x100G LR1, 10km MPO-12

SKU:QDD-4X100G-LR-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 400G QSFP-DD optical transceiver is built for migrating data centre and service-provider networks from 100G to 400G. A single 400G port breaks out into four 100GBASE-LR1 links over parallel single-mode fibre, so new 400G platforms can still connect to existing 100G equipment.

Each of the four lanes runs at 1310 nm and reaches up to 10 km over G.652 single-mode fibre, with a maximum supported insertion loss of 6.3 dB. Connectivity is through an MPO-12 APC connector carrying four parallel fibre pairs, and the host interface is 400GAUI-8 (CEI-56G-VSR-PAM4). Maximum power consumption is 12 W, and forward error correction is performed on the host platform. The module measures 8.5 x 18.4 x 78.3 mm and has a blue pull tab.

In breakout mode it interoperates with QSFP-100G-DR (up to 500 m), QSFP-100G-FR (up to 2 km) and QSFP-100G-LR (up to 10 km) optics at the far end. It requires APC MPO-12 patch cords or breakout cabling, as PC/UPC connectors are not supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Operates as a 4x100G breakout from a single 400G QSFP-DD port
- Four parallel lanes, one wavelength per lane, over four SMF pairs through an MPO-12 connector
- Breakout interoperates with QSFP-100G-DR, QSFP-100G-FR and QSFP-100G-LR at the far end
- FEC is performed on the host platform
- Compliant with IEEE 802.3cu 100GBASE-LR1 and CMIS 4.0
- Laser Class 1 and RoHS 6 compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP-DD
- Data rate: 4 x 100GE breakout (400G aggregate)
- Standard: 100GBASE-LR1 (IEEE 802.3cu CL140)
- Host electrical interface: 400GAUI-8 / CEI-56G-VSR-PAM4
- Wavelength: 1310 nm
- Fibre type: SMF G.652
- Reach: up to 10 km
- Connector: MPO-12 SMF APC (12 fibres)
- Average transmit power per lane: -1.9 to 4.8 dBm
- Average receive power per lane: -8.2 to 4.8 dBm
- Maximum supported insertion loss: 6.3 dB
- Pre-FEC BER: 2.4x10-4
- Maximum power consumption: 12 W
- Dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Weight (max): 100 g
- Operating temperature: 0 to 75 C
- Storage temperature: -40 to 85 C
- Laser class: 1
- Pull tab colour: Blue
- Management interface: CMIS Rev 4.0

FAQs

Q: What fibre and connectors does it need?
A: It needs parallel single-mode fibre (G.652) terminated with an MPO-12 APC connector. APC MPO patch cords or breakout cabling are required, as PC/UPC connectors are not supported.

Q: Which 100G optics can it connect to in breakout mode?
A: It interoperates with QSFP-100G-DR-S up to 500 m, QSFP-100G-FR-S or QDD-4X100G-FR-S up to 2 km, and QSFP-100G-LR-S or QDD-4X100G-LR-S up to 10 km, within the stated loss budget of each link.

Q: What power does the module draw?
A: Maximum power consumption is 12 W, drawn from the host QSFP-DD port. Confirm that the host port and chassis cooling support a module at this power level.

Q: Which platforms support it?
A: It is supported on Cisco switches and routers with QSFP-DD ports. Check the Cisco Transceiver Module Compatibility Matrix for platform and software release support.

Q: Where is forward error correction handled?
A: FEC is performed on the host platform, so the host must support the required FEC mode for 100GBASE-LR1 links.
