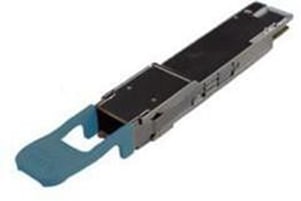

Cisco QDD-4X100G-LR-G | 400G QSFP-DD Transceiver, 4x100G LR Breakout, 10km, MPO-12 APC

SKU:QDD-4X100G-LR-G

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 400G QSFP-DD optical transceiver is built for breaking a single 400G port out into four independent 100G links. It carries four parallel 100G lanes over single-mode fibre at 1310nm and reaches up to 10km, which suits data centre and service provider links that need long-reach 100G connections from high-density 400G ports.

The module uses an MPO-12 APC connector with one wavelength per lane and complies with IEEE 802.3cu 100GBASE-LR1. The host electrical interface is 400GAUI-8 / CEI-56G-VSR-PAM4, and maximum power consumption is 12W, drawn from the host QSFP-DD port. Transmit power is -1.9 to 4.8 dBm per lane, receive power is -8.2 to 4.8 dBm per lane, and the maximum supported insertion loss is 6.3 dB. Forward error correction is performed on the host platform.

At the far end the breakout links interoperate with QSFP-100G-DR (500m), QSFP-100G-FR (2km) and QSFP-100G-LR (10km) optics. The link requires patch cords with APC MPO connectors, as PC and UPC connectors are not supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports 100G breakout link lengths of up to 10 km
- Four SMF lane pairs on a single MPO-12 connector, one wavelength per lane
- Breaks out to QSFP-100G-DR, QSFP-100G-FR and QSFP-100G-LR optics at the far end
- Requires patch cords with APC MPO connectors
- FEC is performed by the host platform
- High-density QSFP-DD form factor, backward compatible with lower-speed QSFP ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP-DD
- Data rate: 4x 100GE (400G aggregate)
- Standard compliance: IEEE 802.3cu 100GBASE-LR1
- Host electrical interface: 400GAUI-8 / CEI-56G-VSR-PAM4
- Wavelength: 1310 nm
- Fibre type: SMF G.652
- Maximum reach: 10 km
- Optical connector: MPO-12 SMF APC
- Max power consumption: 12 W
- Average transmit power per lane: -1.9 dBm min / 4.8 dBm max
- Average receive power per lane: -8.2 dBm min / 4.8 dBm max
- Maximum supported insertion loss: 6.3 dB
- Pre-FEC BER: 2.4x10-4
- Breakout: 4x 100G to QSFP-100G-DR (500m), QSFP-100G-FR (2km), QSFP-100G-LR (10km)
- FEC: performed on the host platform
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Module weight (max): 100 g
- Operating temperature: 0 to 75 C
- Storage temperature: -40 to 85 C

FAQs

Q: What fibre and connectors does this transceiver need?
A: It runs over single-mode fibre (G.652) and uses an MPO-12 APC connector. Patch cords must have APC MPO connectors, as PC and UPC are not supported.

Q: What can it connect to at the far end of a breakout?
A: Each of the four 100G lanes interoperates with QSFP-100G-DR (500m), QSFP-100G-FR (2km) or QSFP-100G-LR (10km) optics.

Q: How much power does it draw?
A: Maximum power consumption is 12W, supplied by the host QSFP-DD port. No external power is required.

Q: Which platforms is it supported on?
A: It is supported on selected Cisco switches and routers. Check the Cisco Transceiver Modules Compatibility Matrix before deployment to confirm your platform and software release.

Q: Where is forward error correction handled?
A: FEC is performed by the host platform, not by the transceiver module itself.
