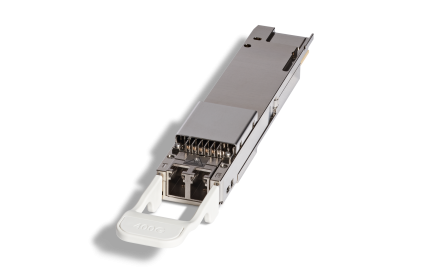

Cisco QDD-400G-DR4-S | 400G QSFP-DD Transceiver, 400GBASE-DR4, MPO-12, 500m
SKU:QDD-400G-DR4-S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 400G QSFP-DD transceiver runs 400GBASE-DR4 over parallel single-mode fibre, reaching up to 500 m. It is built for data-centre and high-performance 400G links, including migration from 400G ports to 100G ports, such as Nexus 9000 400G ports to 100G ports.
The module uses four parallel 100G PAM4 lanes at 1310 nm and terminates in an MPO-12 SMF APC connector, so it needs APC-polished MPO patch cords rather than PC/UPC. It supports 4x100GE breakout, with 100G-DR, FR or LR optics at the far end: QSFP-100G-DR-S, QDD-4X100G-FR-S and QDD-4X100G-LR-S, each at 500 m. The high-speed electrical interface is 400GAUI-8, and the module is a Laser Class 1 device with an operating temperature range of 0 to 75 C.
It is hot-swappable and fits Cisco QSFP-DD 400G ports. No licence is required, and the host port supplies power. Check the Cisco Optics-to-Device Compatibility Matrix for your host platform before deployment.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable into 400G Ethernet Cisco QSFP-DD ports
- Certified and tested on Cisco QSFP-DD 400G ports
- Interoperable with other IEEE-compliant 400GBASE interfaces
- Compliant with QSFP-DD MSA CMIS Rev 4.1, OIF 56G PAM4, IEEE 802.3 and 100G Lambda MSA
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Breakout mode gives up to four 100GE links
- RoHS 6 compliant, IEC/EN 60825-1 certified
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: QSFP-DD
- Standard: IEEE 802.3 400GBASE-DR4
- Nominal data rate: 425 Gbps
- Electrical interface: 400GAUI-8 / CEI-56G-VSR-PAM4
- Lanes: 4 x 100G PAM4 parallel
- Wavelength: 1310 nm
- Link length: 500 m
- Fibre type: SMF G.652, parallel, 4 pairs
- Optical connector: MPO-12 SMF APC
- Average transmit power per lane: -2.9 dBm min / 4 dBm max
- Average receive power per lane: -5.9 dBm min / 4 dBm max
- Maximum supported insertion loss: 3 dB
- Pre-FEC BER: 2.4x10-4 (FEC performed on host platform)
- Breakout: 4x100G to QSFP-100G-DR-S, QDD-4X100G-FR-S and QDD-4X100G-LR-S (500 m, 3 dB)
- Pull tab colour: Orange
- Dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Weight (max): 100 g
- Operating temperature: 0 to 75 C
- Storage temperature: -40 to 85 C
- Laser class: 1
FAQs
Q: Does this transceiver need a licence?
A: No. No licence is required. The host port supplies power to the module.
Q: What fibre and connector does it need?
A: It needs parallel single-mode fibre (G.652) with an APC-polished MPO-12 connector. PC/UPC patch cords are not suitable.
Q: Can it break out to 100G links?
A: Yes. It supports 4x100GE breakout to QSFP-100G-DR-S, QDD-4X100G-FR-S and QDD-4X100G-LR-S optics, each at 500 m with up to 3 dB insertion loss.
Q: Which ports does it work in?
A: It fits Cisco QSFP-DD 400G ports. Check the Cisco Optics-to-Device Compatibility Matrix for your specific host platform.
Q: What is the maximum reach?
A: Up to 500 m over parallel single-mode fibre, with a maximum supported insertion loss of 3 dB.
