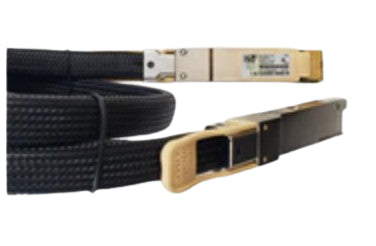

Cisco QDD-400-CU3M | 400G QSFP-DD Passive DAC Cable, 3 m, Orange Tab
SKU:QDD-400-CU3M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QDD-400-CU3M is a 3 m passive copper direct-attach cable from Cisco's 400G QSFP-DD cable and transceiver portfolio. It has a QSFP-DD connector at each end and carries 400 Gigabit Ethernet between Cisco QSFP-DD ports over short distances, making it suited to in-rack or adjacent-rack links in data centres, high-performance computing networks, enterprise core and distribution layers, and service provider networks.
This cable is a passive copper assembly with a nominal data rate of 425 Gbps and a 400GAUI-8 C2M, OIF CEI-56G-VSR-PAM4 high-speed electrical interface. It draws a maximum of 1.5 W per end from the host port and needs no external power. The cable length is 3 m and the pull tab is orange. No licence or subscription is required.
The cable is supported on Cisco switches and routers with QSFP-DD 400G ports. The QSFP-DD cage is backward compatible with QSFP+, QSFP28 and QSFP56 modules. Related cables in the same family are the QDD-4ZQ100-CUxM breakout to 4x QSFP56 100G and the QDD-2Q200-CUxM breakout to 2x QSFP56 200G.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable input/output device that plugs into Cisco 400G Ethernet QSFP-DD ports
- Passive copper design with no external power requirement
- Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
- Certified and tested on Cisco QSFP-DD 400G ports
- Compliant with IEEE 802.3, QSFP-DD MSA CMIS Rev 4.1 and OIF 56G PAM4
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: QSFP-DD to QSFP-DD
- Cable type: Passive copper cable assembly
- Cable length: 3 m
- Nominal data rate: 425 Gbps (400GbE)
- High-speed electrical interface: 400GAUI-8 C2M, OIF CEI-56G-VSR-PAM4
- Maximum power consumption: 1.5 W per end
- Optical connector: N/A (copper)
- Pull tab colour: Orange
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Module weight (max): 600 g
- Copper cable operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards: OIF CEI-56G-VSR-PAM4, QSFP-DD MSA hardware Rev 4.1, IEEE 802.3bs 400GAUI-8 Annex 120E, IEEE 802.3cd CL136, IEEE 802.3cu CL140, CMIS Rev 4.0
- Compliance: RoHS 6, FCC/ICES, CENELEC, VCCI, NEBS
- Cable jacket rating: VW-1 or FT-1
FAQs
Q: Does the QDD-400-CU3M need a licence or subscription?
A: No. It is a passive copper cable and no licence or subscription is required.
Q: Does it need external power?
A: No. It is passive and draws a maximum of 1.5 W per end from the host port.
Q: Which Cisco ports does it work with?
A: It is supported on Cisco switches and routers with QSFP-DD 400G ports. Check the Cisco Transceiver Modules Compatibility Matrix for specific platforms and software versions.
Q: How does it differ from the QDD-4ZQ100-CUxM and QDD-2Q200-CUxM cables?
A: The QDD-400-CU3M is a straight 400G QSFP-DD to QSFP-DD cable. The QDD-4ZQ100-CUxM breaks out to 4x QSFP56 100G and the QDD-2Q200-CUxM breaks out to 2x QSFP56 200G.
Q: What reach does this cable support?
A: The cable length is 3 m, so it suits in-rack or adjacent-rack connections.
