Cisco

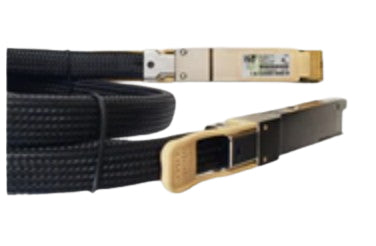

Cisco QDD-400-CU2M | 400G QSFP-DD Passive DAC Cable, 2 m, Brown Pull Tab

SKU:QDD-400-CU2M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QDD-400-CU2M is a passive copper direct attach cable with a QSFP-DD connector at each end, carrying 400 Gigabit Ethernet over a 2 m run. It is built for short-reach links between Cisco 400G QSFP-DD ports in data centre, high-performance computing, enterprise core and distribution, and service provider networks.

The cable runs at a nominal data rate of 425 Gbps using the 400GAUI-8 C2M electrical interface (OIF CEI-56G-VSR-PAM4). It is a passive assembly, so no external power is needed and it draws up to 1.5 W per end from the host port. Each module measures 8.5 x 18.4 x 78.3/93.3 mm with the pull tab, weighs up to 450 g, and this 2 m variant is identified by its brown pull tab. The copper cable is rated for operation from 0 to 70 C.

It is a hot-swappable device for Cisco switches and routers with QSFP-DD 400G ports, and is compliant with QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4 and IEEE 802.3. QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules. Confirm the exact platform and software support in the Cisco Transceiver Modules Compatibility Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable input/output device that plugs into Cisco 400G QSFP-DD Ethernet ports
- Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
- Certified and tested on Cisco QSFP-DD 400G ports for performance, quality and reliability
- Compliant with QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4 and IEEE 802.3
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Passive design needs no external power

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: Passive copper direct attach cable (DAC)
- Connectors: QSFP-DD to QSFP-DD
- Cable length: 2 m
- Pull tab colour: Brown
- Nominal data rate: 425 Gbps
- Electrical interface: 400GAUI-8 C2M, OIF CEI-56G-VSR-PAM4
- Max power consumption: 1.5 W per end
- Optical connector: N/A (copper)
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Module weight (max): 450 g
- Copper cable operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Compliance: RoHS 6

FAQs

Q: Does this cable need external power?
A: No. It is a passive copper cable with no external power needed. It draws up to 1.5 W per end from the host port.

Q: Which Cisco platforms support the QDD-400-CU2M?
A: It is supported on Cisco switches and routers with QSFP-DD 400G ports. Check the Cisco Transceiver Modules Compatibility Matrix for the exact platform and software versions.

Q: How does this differ from other QSFP-DD 400G cables?
A: This variant is a 2 m passive copper cable with a brown pull tab. Other lengths and cable types carry different part numbers.

Q: Can it connect to older QSFP ports?
A: QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules. This cable has a QSFP-DD connector at each end and is designed for 400G QSFP-DD ports.

Q: What distance does it cover?
A: The cable length is 2 m, intended for short-reach links such as within a rack or between adjacent racks.
