Cisco

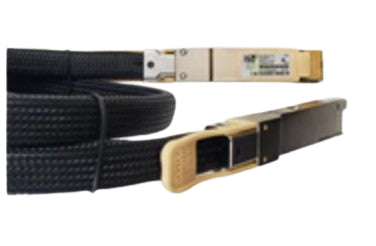

Cisco QDD-400-CU2.5M | 400G QSFP-DD Passive DAC Cable, 2.5 m, Yellow Tab

SKU:QDD-400-CU2.5M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 400G QSFP-DD to QSFP-DD passive copper direct-attach cable provides a short-reach 400GbE link between switches and routers. It suits data centre, HPC, enterprise core and distribution, and service provider networks where ports sit within a rack or across adjacent racks.

The cable is 2.5 m long with a yellow pull tab and weighs up to 550 g. It carries a nominal 425 Gbps data rate over a 400GAUI-8 C2M electrical interface (OIF CEI-56G-VSR-PAM4). Each end draws a maximum of 1.5 W from the host QSFP-DD port, so no separate power supply is needed. No licence or subscription is required. The module measures 8.5 x 18.4 x 78.3/93.3 mm with pull tab and operates from 0 to 70 C.

It is supported on Cisco switches and routers with QSFP-DD 400G ports, and the Cisco Transceiver Modules Compatibility Matrix lists platform support. It is hot-swappable and complies with IEEE 802.3cd and the QSFP-DD MSA. QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable device that plugs into Cisco 400G QSFP-DD ports
- Certified and tested on Cisco QSFP-DD 400G ports
- Compliant with IEEE 802.3 and the QSFP-DD MSA (CMIS Rev 4.1, OIF 56G PAM4)
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Cost-effective 400G connectivity for very short links within and between adjacent racks
- Passive design with no separate power supply or licence required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Type: Passive copper direct-attach cable
- Connectors: QSFP-DD to QSFP-DD
- Length: 2.5 m
- Nominal data rate: 425 Gbps (400GbE)
- High-speed electrical interface: 400GAUI-8 C2M, OIF CEI-56G-VSR-PAM4
- Max power consumption: 1.5 W per end
- Pull tab colour: Yellow
- Weight (max): 550 g
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Optical connector: N/A
- Nominal wavelength: N/A
- Standards: IEEE 802.3cd CL136, IEEE 802.3bs 400GAUI-8 Annex 120E, QSFP-DD MSA hardware Rev 4.1, CMIS Rev 4.0
- Compliance: RoHS 6, FCC/ICES, CENELEC, VCCI, NEBS (GR-1089)

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and no licence or subscription is required.

Q: How is the cable powered?
A: It is passive and draws a maximum of 1.5 W per end from the host QSFP-DD port. No external power is needed.

Q: Which devices does it work with?
A: It is supported on Cisco switches and routers with QSFP-DD 400G ports. Check the Cisco Transceiver Modules Compatibility Matrix for platform support.

Q: How does this cable differ from other QDD-400-CU lengths?
A: The QDD-400-CU family comes in 0.5, 1, 2, 2.5 and 3 m lengths. This SKU is the 2.5 m version with a yellow pull tab.

Q: Can it connect to QSFP28 or QSFP56 ports?
A: QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules. This cable has a QSFP-DD connector at each end, so it links two QSFP-DD ports.
