Cisco

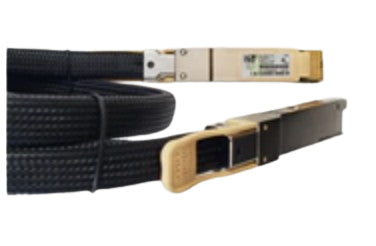

Cisco QDD-400-CU1M | 400G QSFP-DD Passive DAC Cable, 1 m, Tan Pull Tab

SKU:QDD-400-CU1M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 400G QSFP-DD passive copper direct-attach cable from the Cisco 400G QSFP-DD cable and transceiver family, with a QSFP-DD connector on each end and a length of 1 m. It suits very short, low-cost 400 Gigabit Ethernet links between QSFP-DD ports on switches and routers, either within a rack or across adjacent racks. Typical deployments are data centre, HPC, enterprise core and distribution, and service provider networks.

The assembly is a passive twinax copper design with a nominal data rate of 425 Gbps and a high-speed electrical interface of 400GAUI-8 C2M, OIF CEI-56G-VSR-PAM4. It draws a maximum of 1.5 W per end from the host port and needs no external power. This 1 m version has a tan pull tab, weighs up to 250 g per module and operates from 0 to 70 C.

It is a hot-swappable input/output device that plugs into 400G Ethernet Cisco QSFP-DD ports and is certified and tested on those ports. The QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules, and forward error correction is performed on the host platform. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable input/output device that plugs into 400G Ethernet Cisco QSFP-DD ports
- Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
- Certified and tested on Cisco QSFP-DD 400G ports
- Compliant with IEEE 802.3 high-speed electrical interfaces
- Compliant with QSFP-DD MSA CMIS Rev 4.1, OIF 56G PAM4 and IEEE 802.3
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Passive design with no external power requirement
- Forward error correction is performed on the host platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: QDD-400-CU1M
- Description: 400G QSFP-DD Transceiver, Passive Copper Cable, 1 meter
- Cable type: Passive copper cable assembly
- Connectors: QSFP-DD to QSFP-DD
- Cable distance: 1 m
- Pull tab colour: Tan
- Nominal data rate: 425 Gbps
- High-speed electrical interface: 400GAUI-8 C2M, OIF CEI-56G-VSR-PAM4
- Max power consumption: 1.5 W per end
- Optical connector: N/A
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Module weight (max): 250 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards compliance: QSFP-DD MSA hardware Rev 4.1; CMIS Rev 4.0; OIF CEI-56G-VSR-PAM4; IEEE 802.3bs 400GAUI-8 Annex 120E; IEEE 802.3cd CL136; IEEE 802.3cu CL140
- Regulatory: RoHS 6; FCC/ICES, CENELEC, VCCI, Telcordia NEBS; cable jacket UL/CSA VW-1 or FT-1

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and works without any licence or subscription.

Q: How is the cable powered?
A: It is passive and needs no external power. It draws a maximum of 1.5 W per end from the host QSFP-DD port.

Q: Which ports does it work with?
A: It works with Cisco switches and routers that have QSFP-DD 400G ports. The QSFP-DD port is also backward compatible with QSFP+, QSFP28 and QSFP56 modules. Cisco's Transceiver Modules Compatibility Matrix lists platform-level support.

Q: Where is forward error correction performed?
A: Forward error correction is performed on the host platform, not in the cable.

Q: How does QDD-400-CU1M differ from the other lengths in this family?
A: The QDD-400-CUxM cables share the same design and differ by length. This model is 1 m with a tan pull tab and weighs up to 250 g.
