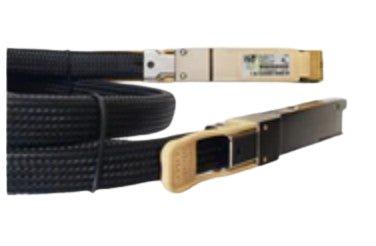

Cisco QDD-400-CU0.5M | 400G QSFP-DD Passive DAC Cable, 0.5 m, Tan Pull Tab
SKU:QDD-400-CU0.5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QDD-400-CU0.5M is a passive twinax copper direct attach cable with a QSFP-DD connector at each end. It creates a 400G link between two QSFP-DD ports and is intended for very short connections within a rack or between adjacent racks, where a low-cost copper link is preferable to optics.
This 0.5 m assembly has a nominal data rate of 425 Gbps (400GbE) and uses the 400GAUI-8 C2M electrical interface with OIF CEI-56G-VSR-PAM4 signalling. Being passive, it needs no external power and draws a maximum of 1.5 W per end from the host port. The tan pull tab and 0.5 m length distinguish it from longer QDD-400-CU lengths in the same family. Each assembly weighs up to 250 g and operates from 0 to 70 C.
It is supported on Cisco switches and routers with QSFP-DD 400G ports and interoperates with other IEEE and MSA-compliant 400G interfaces. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable QSFP-DD connectors for Cisco 400G QSFP-DD ports
- Passive twinax copper construction with no external power required
- Certified and tested on Cisco QSFP-DD 400G ports
- Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
- Compliant with QSFP-DD MSA CMIS Rev 4.1, OIF 56G PAM4 and IEEE 802.3
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Passive copper direct attach cable (DAC)
- Connectors: QSFP-DD to QSFP-DD
- Cable length: 0.5 m
- Nominal data rate: 425 Gbps (400GbE)
- High-speed electrical interface: 400GAUI-8 C2M, OIF CEI-56G-VSR-PAM4
- Maximum power consumption: 1.5 W per end
- Pull tab colour: Tan
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Module weight (max): 250 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards: OIF CEI-56G-VSR-PAM4, QSFP-DD MSA hardware Rev 4.1, CMIS Rev 4.0, IEEE 802.3bs 400GAUI-8 Annex 120E, IEEE 802.3cd CL136, IEEE 802.3cu CL140
- Compliance: RoHS 6, FCC/ICES, CENELEC, VCCI, Telcordia NEBS, GR-1089 EMC/electrical safety
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive cable and requires no licence or subscription.
Q: Does it need external power?
A: No. It is passive with no external power. It draws a maximum of 1.5 W per end from the host port.
Q: Which ports does it work with?
A: It works with Cisco switches and routers that have QSFP-DD 400G ports, and interoperates with other IEEE and MSA-compliant 400G interfaces. Check the Cisco Transceiver Modules Compatibility Matrix for specific platforms.
Q: How does this differ from other QDD-400-CU cables?
A: The QDD-400-CU0.5M is the 0.5 m length with a tan pull tab. Other SKUs in the family use the same QSFP-DD passive copper design at different lengths.
Q: What distance is it suited to?
A: At 0.5 m it is intended for very short links between QSFP-DD ports within a rack or between adjacent racks.
