Cisco QDD-400-AOC7M | 400G QSFP-DD Active Optical Cable, 7m, Blue Pull Tab
SKU:QDD-400-AOC7M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

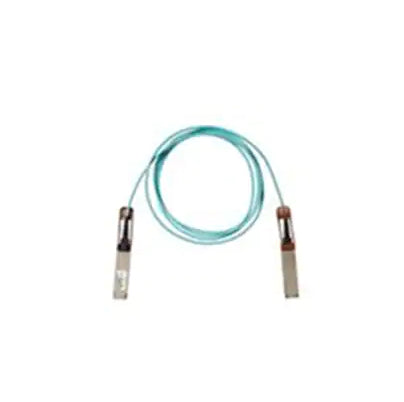

The Cisco QDD-400-AOC7M is a 7 m 400G Ethernet active optical cable with a QSFP-DD connector on each end. It suits short links within and between racks in data centres, high-performance computing networks, enterprise core and distribution layers, and service provider applications. It is thinner and lighter than copper cabling, which makes cable management easier and supports airflow in high-density racks.
The cable carries a nominal data rate of 425 Gbps over a 400GAUI-8 electrical interface using 8 x 50G PAM4 lanes. It is a fixed active optical cable assembly with no separate optical connector, so there are no optics to match at either end. Maximum power consumption is 12 W per end, supplied by the host QSFP-DD port, and no licence or subscription is required. This 7 m version is identified by its blue pull tab and weighs 230 g at most.
It is supported on Cisco switches and routers with QSFP-DD 400G ports. QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules. Check the Cisco Transceiver Modules Compatibility Matrix for exact platform and software support.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable module that plugs into a Cisco 400G QSFP-DD port
- Certified and tested on Cisco QSFP-DD 400G ports
- Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
- Compliant with QSFP-DD MSA CMIS, OIF 56G PAM4 and IEEE 802.3
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Thinner and lighter than copper cable for easier cable management
- Supports efficient airflow in high-density racks
- FEC is performed on the host platform
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: QDD-400-AOC7M
- Form factor: QSFP-DD to QSFP-DD
- Cable type: Active Optical Cable (AOC)
- Cable length: 7 m
- Nominal data rate: 425 Gbps
- Electrical interface: 400GAUI-8 (8 x 50G PAM4)
- Optical connector: Fixed active optical cable assembly
- Max power consumption: 12 W per end
- Pull tab colour: Blue
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Weight: 230 g (max)
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards: QSFP-DD MSA CMIS Rev 4.x, OIF CEI-56G-VSR-PAM4, IEEE 802.3bs 400GAUI-8 Annex 120E, IEEE 802.3
- Laser safety: Class 1 (21CFR-1040, IEC 60825-1)
- Environmental compliance: RoHS 6
- EMC and safety: FCC/ICES, CENELEC, VCCI, Telcordia NEBS, GR-1089
FAQs
Q: Does the QDD-400-AOC7M need a licence or subscription?
A: No. No licence or subscription is required. The cable works once connected to a supported QSFP-DD port.
Q: How is the cable powered?
A: Power comes from the host QSFP-DD port, with a maximum consumption of 12 W per end. No separate power supply is needed.
Q: What does it connect to?
A: It connects to Cisco switches and routers with QSFP-DD 400G ports. QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules. Check the Cisco Transceiver Modules Compatibility Matrix for exact platform and software support.
Q: How does this 7 m cable differ from other QSFP-DD AOC lengths?
A: It has a fixed 7 m length and a blue pull tab. Other lengths in the range use the same QSFP-DD to QSFP-DD design but suit different link distances.
Q: Does it need separate optics at each end?
A: No. It is a fixed active optical cable assembly with the optics built into each QSFP-DD end, so no separate transceivers or fibre patch cables are needed.
