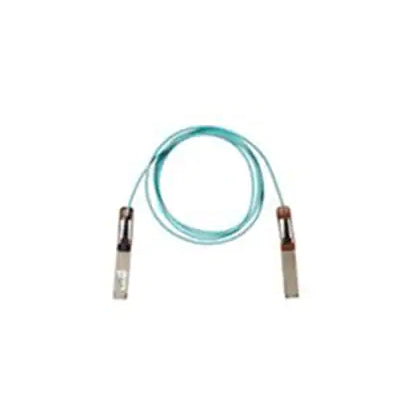

Cisco QDD-400-AOC5M | 400G QSFP-DD Active Optical Cable, 850nm MMF, 5 m
SKU:QDD-400-AOC5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 400G QSFP-DD to QSFP-DD active optical cable is a fixed-length 5 m assembly for short-reach connections within and between racks. It suits data centres, high-performance computing networks, enterprise core and distribution layers, and service provider applications. Being thinner and lighter than copper, it makes cable management easier and supports efficient airflow in high-density racks.
The cable uses a 400GAUI-8 high-speed electrical interface with 8 x 50G PAM4 lanes over 850 nm multimode fibre, with a nominal data rate of 425 Gbps. Each end draws a maximum of 12 W from the host port, so no separate power supply is needed. The assembly weighs 200 g and has a gray pull tab. Forward error correction is performed on the host platform. This 5 m version belongs to a family offered in 1, 2, 3, 5, 7, 10, 15, 20, 25 and 30 m lengths.
It is hot-swappable and supported on Cisco switches and routers with 400G QSFP-DD ports. QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules. Check the Cisco Transceiver Modules Compatibility Matrix for exact platform and software support.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, plugs into 400G Ethernet Cisco QSFP-DD ports
- Certified and tested on Cisco QSFP-DD 400G ports
- Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
- Compliant with QSFP-DD MSA CMIS Rev 4.1, OIF 56G PAM4, IEEE 802.3 and 100G Lambda MSA
- Thinner and lighter than copper cables, which makes cable management easier
- Supports efficient system airflow in high-density racks
- Suited to short distances within racks and across racks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: QSFP-DD to QSFP-DD (both ends)
- Cable type: Active optical cable assembly
- Length: 5 m
- Nominal data rate: 425 Gbps
- High-speed electrical interface: 400GAUI-8, 8 x 50G PAM4
- Optics: 850 nm multimode fibre
- Optical connector: None (fixed AOC)
- Maximum power consumption: 12 W per end
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Weight: 200 g
- Pull tab colour: Gray
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Forward error correction: Performed on the host platform
- Standards: QSFP-DD MSA CMIS Rev 4.1, OIF 56G PAM4, IEEE 802.3
FAQs
Q: Does this cable need a separate power supply?
A: No. It is powered from the host QSFP-DD port and draws a maximum of 12 W per end.
Q: What ports does it work with?
A: It works with Cisco switches and routers that have 400G QSFP-DD ports. QSFP-DD ports are also backward compatible with QSFP+, QSFP28 and QSFP56 modules. Check the Cisco Transceiver Modules Compatibility Matrix for exact platform and software support.
Q: Is forward error correction handled by the cable?
A: No. Forward error correction is performed on the host platform.
Q: What other lengths are available in this family?
A: This 5 m cable is part of a family offered in 1, 2, 3, 5, 7, 10, 15, 20, 25 and 30 m lengths. The gray pull tab identifies this version.
Q: Where is this cable typically used?
A: It is used for short-reach 400G links within and between racks in data centres, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
