Cisco QDD-400-AOC3M | 400G QSFP-DD Active Optical Cable, 3m, Orange Tab

SKU:QDD-400-AOC3M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

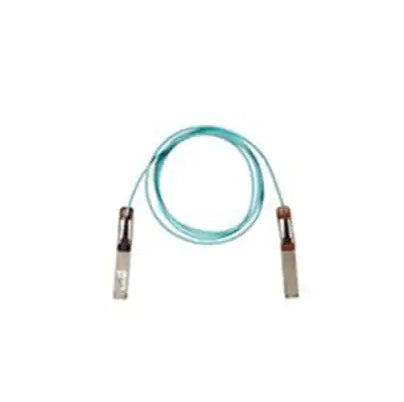

The QDD-400-AOC3M is a 3 m 400G QSFP-DD to QSFP-DD active optical cable assembly with integrated optics at both ends. It is built for short-reach 400GbE links inside data centres, high-performance computing networks, enterprise core and distribution layers, and service provider environments.

The cable runs at a nominal data rate of 425 Gbps (400GbE) using a 400GAUI-8 high-speed electrical interface. Each end draws a maximum of 12 W from the host port, and no licence or subscription is required. This variant is the 3 m length with an orange pull tab, and each module weighs up to 190 g. The module measures 8.5 x 18.4 x 78.3/93.3 mm (H x W x D) with the pull tab.

It is supported on Cisco switches and routers with QSFP-DD 400G ports, and the QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules. Check the Cisco Transceiver Modules Compatibility Matrix for specific platform and software support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable input/output device that plugs into a Cisco 400G Ethernet QSFP-DD port
- Integrated optics at both ends in a single active optical cable assembly
- Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
- Certified and tested on Cisco QSFP-DD 400G ports for performance, quality and reliability
- High-speed electrical and optical interfaces compliant with IEEE 802.3
- Compliant with QSFP-DD MSA CMIS, OIF 56G PAM4, IEEE 802.3 and 100G Lambda MSA
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: 400G QSFP-DD to QSFP-DD active optical cable assembly
- Cable length: 3 m
- Nominal data rate: 425 Gbps (400GbE)
- High-speed electrical interface: 400GAUI-8
- Maximum power consumption: 12 W per end
- Optical connector: Integrated cable, no separate connector
- Pull tab colour: Orange
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Module weight (max): 190 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Laser safety: Class 1 (21CFR-1040, IEC60825-1)

FAQs

Q: Does the QDD-400-AOC3M need a licence or subscription?
A: No. It is a passive-licence item with no licence or subscription required. It is powered from the host QSFP-DD port.

Q: How much power does it draw?
A: It draws a maximum of 12 W per end, supplied by the host QSFP-DD port.

Q: Which ports does it work with?
A: It is supported on Cisco switches and routers with QSFP-DD 400G ports. Check the Cisco Transceiver Modules Compatibility Matrix for specific platform and software support.

Q: Can it be used in QSFP+, QSFP28 or QSFP56 ports?
A: The QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules, but this cable is a QSFP-DD to QSFP-DD assembly intended for 400G QSFP-DD ports.

Q: Is this a transceiver or a cable?
A: It is an active optical cable, a fixed 3 m assembly with integrated optics at both ends, so it does not use separate optical transceivers or fibre patch cords.
