Cisco

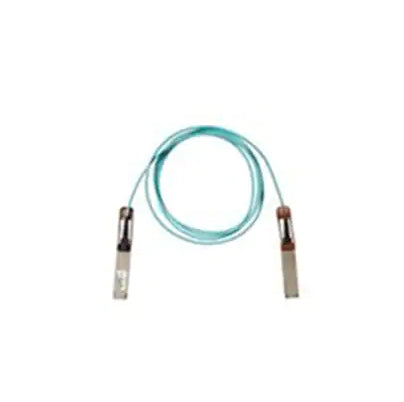

Cisco QDD-400-AOC30M | 400G QSFP-DD Active Optical Cable, 30m, Green Pull Tab

SKU:QDD-400-AOC30M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 30 m fixed-length 400G active optical cable with a QSFP-DD connector on each end. It suits short links within and between racks in data centre, high-performance computing and service provider networks, as well as enterprise core and distribution layers. Being optical, it is thinner and lighter than copper cabling, which eases cable management and helps airflow in high-density racks.

The cable runs a nominal data rate of 425 Gbps over a 400GAUI-8 electrical interface, with a maximum power draw of 12 W per end, powered from the host QSFP-DD port. It weighs a maximum of 490 g and uses a green pull tab, which together with the 30 m length separates it from the other lengths in the QDD-400-AOC range. Forward error correction is performed on the host platform.

It is intended for Cisco switches and routers with 400G QSFP-DD ports. QSFP-DD ports are also backward compatible with QSFP+, QSFP28 and QSFP56 modules. The cable is hot-swappable and conforms to IEEE 802.3, the QSFP-DD MSA CMIS and OIF 56G PAM4 specifications.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable design for plugging into Cisco 400G QSFP-DD ports
- Certified and tested on Cisco QSFP-DD 400G ports
- Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
- Compliant with IEEE 802.3, QSFP-DD MSA CMIS and OIF 56G PAM4
- Thinner and lighter than copper cables, easing cable management and improving airflow in high-density racks
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Fixed-length assembly with no separate optics or fibre to manage

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: QDD-400-AOC30M
- Product type: Active optical cable assembly
- Connectors: QSFP-DD to QSFP-DD
- Cable length: 30 m
- Nominal data rate: 425 Gbps
- High-speed electrical interface: 400GAUI-8
- Maximum power consumption: 12 W per end
- Pull tab colour: Green
- Weight (max): 490 g
- Module operating temperature: 0 to 75 C
- Storage temperature: -40 to 85 C
- FEC: performed on the host platform
- Standards: QSFP-DD MSA hardware Rev 4.1, CMIS Rev 4.0, IEEE 802.3bs 400GAUI-8 Annex 120E, OIF CEI-56G-VSR-PAM4, IEEE 802.3-2018
- Safety: Laser Class 1 (21CFR-1040 LN#50, IEC60825-1)
- Environmental: RoHS 6 compliant

FAQs

Q: What does this cable plug into?
A: It plugs into Cisco switches and routers with 400G QSFP-DD ports. Platform-level support can be checked in the Cisco Transceiver Modules Compatibility Matrix.

Q: Does it need a licence or subscription?
A: No. It is a passive-powered cable assembly drawn from the host port and does not require a software licence.

Q: How much power does it draw?
A: It draws a maximum of 12 W per end, supplied by the host QSFP-DD port.

Q: Can the length be changed or the cable terminated?
A: No. It is a fixed 30 m active optical cable assembly with a QSFP-DD connector permanently attached at each end. Other lengths from 1 m to 30 m are available as separate part numbers.

Q: Can it be used in a port designed for QSFP28 or QSFP56?
A: QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules, but this cable is a 400G QSFP-DD assembly and is intended for 400G QSFP-DD ports.
