Cisco

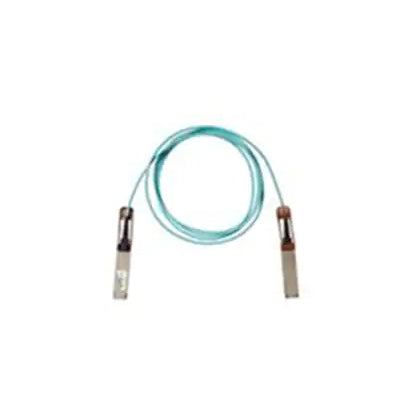

Cisco QDD-400-AOC2M | 400G QSFP-DD Active Optical Cable, 2m, Brown Tab

SKU:QDD-400-AOC2M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 400G QSFP-DD to QSFP-DD active optical cable is a 2 m fixed assembly from Cisco's QSFP-DD portfolio. It suits short links within a rack and between racks in data centres, high-performance computing, enterprise core and distribution layers, and service provider networks.

Both ends are QSFP-DD with a 400GAUI-8 high-speed electrical interface and a nominal data rate of 425 Gbps. Each end draws a maximum of 12 W from the host port, and the assembly weighs 180 g with a brown pull tab. It operates from 0 to 70 C, and FEC is performed on the host platform. No licence or subscription is required.

As an active optical cable it is much thinner and lighter than copper, which eases cable management and improves airflow in high-density racks. It is supported on Cisco switches and routers with 400G QSFP-DD ports, and QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable device that plugs into a 400G Ethernet Cisco QSFP-DD port
- Certified and tested on Cisco QSFP-DD 400G ports
- High-speed electrical and optical interfaces compliant with IEEE 802.3
- Compliant with QSFP-DD MSA CMIS Rev 4.1 and OIF 56G PAM4
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Thinner and lighter than copper cables, easing cable management and improving rack airflow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: QDD-400-AOC2M
- Type: 400G QSFP-DD Transceiver, Active Optical Cable
- Form factor: QSFP-DD to QSFP-DD (both ends)
- Link length: 2 m
- Nominal data rate: 425 Gbps
- High-speed electrical interface: 400GAUI-8
- Max power consumption: 12 W per end
- Optical connector: Fixed AOC assembly
- Pull tab colour: Brown
- Weight (max): 180 g
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards: QSFP-DD MSA hardware Rev 4.1, CMIS Rev 4.0, IEEE 802.3bs 400GAUI-8 Annex 120E, OIF CEI-56G-VSR-PAM4
- Regulatory: RoHS 6, IEC/EN 60825-1 +A2

FAQs

Q: Does this cable need a licence or subscription?
A: No. No licence or subscription is required.

Q: How much power does it draw?
A: It draws a maximum of 12 W per end, supplied by the host QSFP-DD port.

Q: Which platforms is it supported on?
A: Cisco switches and routers with 400G QSFP-DD ports. Check the Cisco Transceiver Modules Compatibility Matrix for the exact platform and software version.

Q: Where is FEC performed?
A: FEC is performed on the host platform, not in the cable.

Q: Can it be used in QSFP+, QSFP28 or QSFP56 ports?
A: QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules. This cable is a 400G QSFP-DD to QSFP-DD assembly intended for 400G QSFP-DD ports.
