Cisco

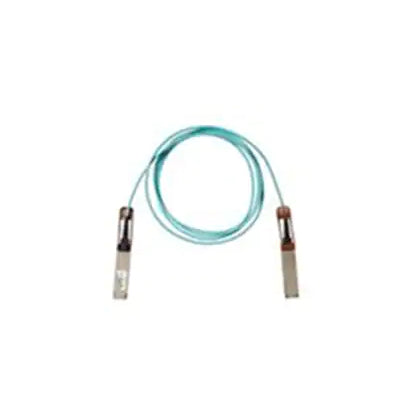

Cisco QDD-400-AOC25M | 400G QSFP-DD Active Optical Cable, 25 m, Green Pull Tab

SKU:QDD-400-AOC25M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco QDD-400-AOC25M is a 25 m active optical cable with a QSFP-DD connector at each end. It is built for 400G Ethernet links within a rack and across racks in data centres, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The integrated optical transceivers and fixed cable mean there is no separate optic to source or fibre to patch.

The cable carries a nominal data rate of 425 Gbps over a 400GAUI-8 high-speed electrical interface, with a maximum power draw of 12 W per end supplied by the host QSFP-DD port. This SKU is the 25 m length with a green pull tab, one of the lengths in the QDD-400-AOCxM family. Compared with copper, the cable is thin and lightweight, which makes cable management easier and helps airflow in dense racks. Forward error correction is performed on the host platform.

It is intended for Cisco switches and routers with QSFP-DD 400G ports and is certified and tested on those ports. It is also interoperable with IEEE-compliant 400GBASE interfaces where applicable. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, plugs into Cisco QSFP-DD 400G ports
- Certified and tested on Cisco QSFP-DD 400G ports
- Interoperable with IEEE-compliant 400GBASE interfaces where applicable
- Compliant with IEEE 802.3, QSFP-DD MSA CMIS Rev 4.1, OIF 56G PAM4 and 100G Lambda MSA
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Thin, lightweight cable that eases cable management and improves airflow in high-density racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: QDD-400-AOC25M
- Cable type: Active optical cable assembly, QSFP-DD to QSFP-DD
- Cable length: 25 m
- Nominal data rate: 425 Gbps
- High-speed electrical interface: 400GAUI-8
- Max power consumption: 12 W per end
- Optical connector: N/A (integrated transceivers, fixed cable)
- Weight (max): 430 g
- Pull tab colour: Green
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- FEC: Performed on the host platform
- Standards: QSFP-DD MSA CMIS Rev 4.1, OIF CEI-56G-VSR-PAM4, IEEE 802.3

FAQs

Q: Does this cable need a licence or subscription?
A: No. No licence or subscription is required to use this active optical cable.

Q: How is the cable powered?
A: It is powered from the host QSFP-DD port and draws up to 12 W per end. No external power supply is needed.

Q: Which platforms does it work with?
A: It is supported on Cisco switches and routers with QSFP-DD 400G ports. Cisco's Transceiver Modules Compatibility Matrix lists the supported platforms. It is also interoperable with IEEE-compliant 400GBASE interfaces where applicable.

Q: What other lengths are in this product family?
A: The QDD-400-AOCxM family is offered in 1, 2, 3, 5, 7, 10, 15, 20, 25 and 30 m lengths. This SKU is the 25 m version with a green pull tab.

Q: Where is forward error correction handled?
A: FEC is performed on the host platform, not within the cable assembly.
