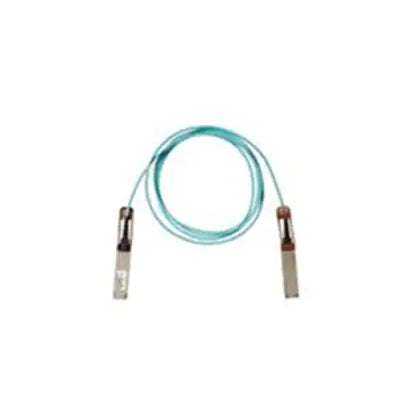

Cisco QDD-400-AOC1M | 400G QSFP-DD Active Optical Cable, 1m, Beige Pull Tab
SKU:QDD-400-AOC1M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The QDD-400-AOC1M is a 400G QSFP-DD to QSFP-DD active optical cable assembly with integrated optics, built for short links within a rack and between adjacent racks. It suits data centres, HPC networks, enterprise core and distribution layers, and service provider networks where 400G ports need to be joined over a short distance.
This 1m assembly runs 8x50G PAM4 (400GbE) over 850nm multimode fibre, with a 400GAUI-8 high-speed electrical interface and a nominal data rate of 425 Gbps. Each end draws a maximum of 12 W from the host QSFP-DD port, and the module weighs 160 g at most. It has a beige pull tab and operates from 0 to 70 C. FEC is performed on the host platform. Because the optics are built into the cable, there is no separate transceiver to fit and no optical connector to clean.
It is certified and tested on Cisco QSFP-DD 400G ports and complies with QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4 and IEEE 802.3. Active optical cables are much thinner and lighter than copper cabling, which eases cable management and improves airflow in dense racks. Check the Cisco Transceiver Modules Compatibility Matrix for the exact platforms and software releases that support it.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable device that plugs into a Cisco 400G Ethernet QSFP-DD port
- Certified and tested on Cisco QSFP-DD 400G ports
- High-speed electrical and optical interfaces compliant with IEEE 802.3
- Compliant with QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4 and 100G Lambda MSA
- QSFP-DD ports are backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Thinner and lighter than copper cabling, easing cable management and improving rack airflow
- Integrated optics with no separate transceivers or fibre connectors to manage
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Active optical cable (AOC)
- Form factor: QSFP-DD to QSFP-DD
- Length: 1 m
- Data rate: 400GbE, 8 x 50G PAM4
- Nominal data rate: 425 Gbps
- Wavelength: 850nm multimode fibre
- High-speed electrical interface: 400GAUI-8
- Maximum power consumption: 12 W per end
- Pull tab colour: Beige
- Module weight (max): 160 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Optical connector: None, fixed cable assembly
- FEC: Performed on the host platform
- Compliance: QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4, IEEE 802.3
FAQs
Q: What platforms is the QDD-400-AOC1M supported on?
A: It is supported on Cisco switches and routers with 400G QSFP-DD ports. Check the Cisco Transceiver Modules Compatibility Matrix for the exact platforms and software releases.
Q: How much power does it draw?
A: It draws a maximum of 12 W per end, powered from the host QSFP-DD port, so no separate power supply is needed.
Q: Does it need a licence or subscription?
A: No. It is a passive-to-the-host cable assembly and does not require any licence or subscription.
Q: How does it differ from the other QDD-400-AOC lengths?
A: The SKU is the 1m version with a beige pull tab. The electrical and optical specifications are the same across lengths, but the reach and cable length differ, so choose the length that matches your rack layout.
Q: Is the optical connector replaceable?
A: No. It is a fixed cable assembly with integrated optics at both ends and no separate optical connector, so the whole cable is replaced as one unit.
Q: Where is forward error correction handled?
A: FEC is performed on the host platform, not within the cable assembly itself.
