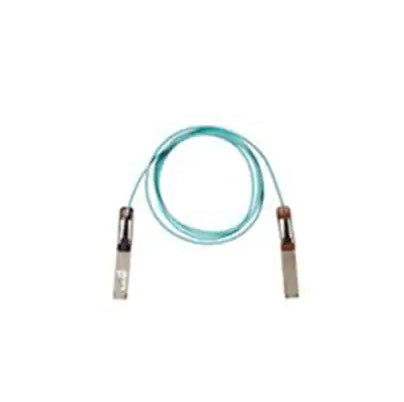

Cisco QDD-400-AOC15M | 400G QSFP-DD Active Optical Cable, 15m, 850nm MMF

SKU:QDD-400-AOC15M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 400G QSFP-DD active optical cable links two QSFP-DD ports over a 15 m run, making it a practical choice for short-reach 400GbE connections within a rack or between racks in high-density data centres, such as switch-to-switch or switch-to-server links. The cable has a black pull tab and is much thinner and lighter than equivalent copper cabling, which helps with cable management and airflow.

It carries 400GbE over an 8 x 50G PAM4 electrical interface (400GAUI-8) using 850nm multimode fibre. Maximum power consumption is 12 W per end, drawn directly from the host QSFP-DD port, so no separate power supply is needed. Each end weighs up to 320 g for the module and measures 8.5 x 18.4 x 78.3/93.3 mm including the pull tab. It is managed through CMIS Rev 4.0, and forward error correction is performed on the host platform. No licence or subscription is required.

It is intended for Cisco switches and routers with QSFP-DD 400G ports. The Cisco Transceiver Modules Compatibility Matrix and Module Interoperability Matrix can be used to confirm platform and software support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-pluggable QSFP-DD active optical cable with an integrated 400G link
- Thinner and lighter than copper cabling, which eases cable management
- Helps improve airflow in high-density racks
- Also offered in 1, 2, 3, 5, 7, 10, 20, 25 and 30 m lengths
- Managed through the Common Management Specification (CMIS) Rev 4.0
- Draws power from the host port with no separate power supply needed

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: QDD-400-AOC15M
- Type: 400G QSFP-DD to QSFP-DD active optical cable
- Cable length: 15 m
- Data rate: 400GbE
- Electrical interface: 8 x 50G PAM4 (400GAUI-8)
- Optical wavelength: 850nm multimode fibre
- Pull tab colour: Black
- Maximum power consumption: 12 W per end
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Module weight (max): 320 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Management interface: CMIS Rev 4.0
- Standards: OIF CEI-56G-VSR-PAM4, QSFP-DD MSA hardware Rev 4.1, IEEE 802.3bs 400GAUI-8 Annex 120E
- Laser safety: Class 1 (21CFR-1040 LN#50, IEC60825-1)
- FEC: Performed on the host platform

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive-managed hardware component and no licence or subscription is required.

Q: How much power does it draw?
A: Maximum power consumption is 12 W per end, supplied by the host QSFP-DD port. No separate power supply is needed.

Q: What equipment does it work with?
A: It is designed for Cisco switches and routers with QSFP-DD 400G ports. Check the Cisco Transceiver Modules Compatibility Matrix and Module Interoperability Matrix for specific platform and software support.

Q: Where does forward error correction happen?
A: FEC is performed on the host platform, not in the cable itself.

Q: What other lengths are in this range?
A: The 400G QSFP-DD active optical cable range is available in 1, 2, 3, 5, 7, 10, 15, 20, 25 and 30 m lengths. This SKU is the 15 m version with a black pull tab.
