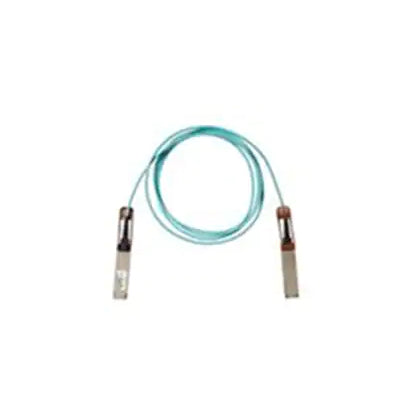

Cisco QDD-400-AOC10M | 400G QSFP-DD Active Optical Cable, 10m, Red Pull Tab

SKU:QDD-400-AOC10M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QDD-400-AOC10M is a 400G QSFP-DD to QSFP-DD active optical cable with transceivers permanently attached at both ends. It suits short-distance 400G connections within a rack and between adjacent racks in data centres, where thin, light cabling helps cable management and airflow in high-density racks.

This 10 m assembly runs 400GbE over 850 nm multimode fibre using 8 x 50G PAM4 electrical lanes (400GAUI-8). Each end draws a maximum of 12 W from the host QSFP-DD port, so no external power is needed. The cable weighs 270 g and operates from 0 to 70 C. The red pull tab and 10 m length distinguish this SKU from other lengths in the same QSFP-DD AOC range.

It is designed for Cisco switches and routers with QSFP-DD 400G ports, and the QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules. Check the Cisco Transceiver Modules Compatibility Matrix for the specific platform and software release.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable device that plugs into a Cisco 400G QSFP-DD Ethernet port
- Certified and tested on Cisco QSFP-DD 400G ports
- Compliant with IEEE 802.3 high-speed electrical and optical interfaces
- Compliant with QSFP-DD MSA CMIS, OIF 56G PAM4 and IEEE 802.3
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
- Thinner and lighter than copper cable, easing cable management and airflow in dense racks
- Forward error correction is performed on the host platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP-DD to QSFP-DD
- Cable type: Active optical cable assembly
- Cable length: 10 m
- Data rate: 400GbE, 8 x 50G PAM4
- High-speed electrical interface: 400GAUI-8
- Wavelength: 850 nm multimode fibre
- Maximum power consumption: 12 W per end
- Pull tab colour: Red
- Cable weight: 270 g
- Module dimensions with pull tab (H x W x D): 8.5 x 18.4 x 78.3/93.3 mm
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Laser safety: Class 1 (IEC 60825-1, 21CFR-1040)
- Standards: QSFP-DD MSA hardware Rev 4.1, OIF CEI-56G-VSR-PAM4, CMIS Rev 4.0, IEEE 802.3bs 400GAUI-8
- Compliance: RoHS 6

FAQs

Q: Does this cable need external power?
A: No. Each end draws a maximum of 12 W from the host QSFP-DD port, so no external power supply is required.

Q: Which devices does it work with?
A: It is supported on Cisco switches and routers with QSFP-DD 400G ports. Check the Cisco Transceiver Modules Compatibility Matrix for your specific platform and software release.

Q: Can it be used in older QSFP ports?
A: The QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules, but this cable has QSFP-DD connectors on both ends, so it needs QSFP-DD ports at each end.

Q: What distinguishes this SKU from other QSFP-DD AOCs?
A: This SKU is the 10 m length with a red pull tab. Other lengths in the range use different part numbers.

Q: Is the fibre replaceable or does it use optical connectors?
A: No. It is a fixed active optical cable with the optics permanently attached at both ends, so there are no separate optical connectors.
