Cisco

Cisco Q-4SFP25G-CU2.5M | 100G QSFP28 to 4x 25G SFP28 Breakout DAC, 2.5m, Passive

SKU:Q-4SFP25G-CU2.5M

$537.63 inc. GST
$488.75 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

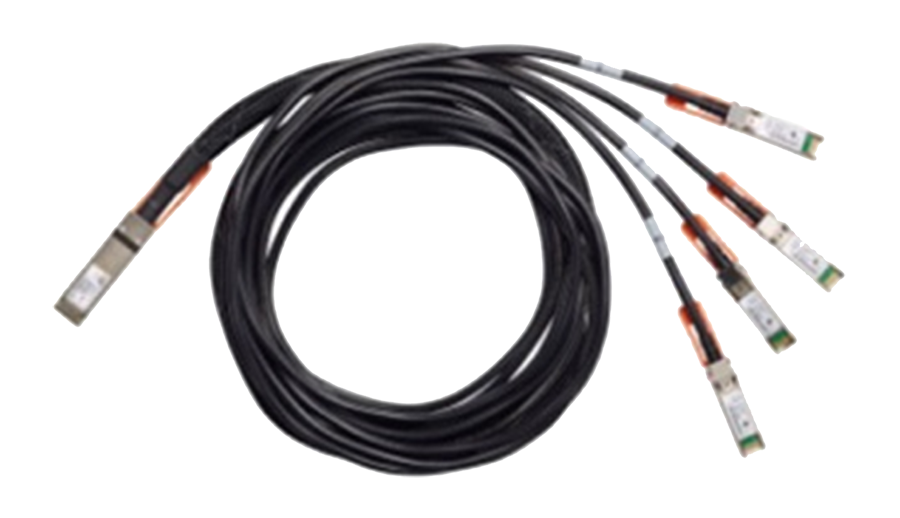

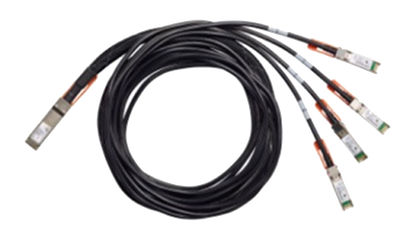

This Cisco passive copper direct-attach breakout cable connects one 100G QSFP28 port to four 25G SFP28 ports using a single 2.5 m assembly. It suits very short data centre and high-performance computing links, either within a rack or across adjacent racks, where a low-cost alternative to optics is wanted.

The 100G end terminates in a QSFP28 connector and the breakout end splits into four SFP28 connectors, each carrying 25G. As a passive cable it needs no external power and draws a maximum of 1.5 W per end from the host port. It is hot-swappable and uses a high-speed electrical interface compliant with IEEE 802.3bm. The cable carries a brown colour code, and the 2.5 m length distinguishes it from other lengths of the same breakout cable.

It is intended for Cisco switches and routers with QSFP28 ports, with the four 25G ends plugging into SFP28 ports on a Cisco switch or server. Compatibility should be checked against the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for the specific platform.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Breaks out one 100G QSFP port into four 25G SFP ports
- Hot-swappable input/output device that plugs into a Cisco QSFP 100G port
- Passive copper design with no external power requirement
- High-speed electrical interface compliant with IEEE 802.3bm
- Interoperable with IEEE-compliant 100GBASE interfaces where applicable
- Certified and tested on Cisco QSFP-100G ports for performance, quality and reliability
- A low-cost way to connect within racks and across adjacent racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: Q-4SFP25G-CU2.5M
- Cable type: Passive direct-attach copper cable assembly
- Cable length: 2.5 m
- Connector (100G end): QSFP28
- Connectors (breakout end): 4 x SFP28 (25G)
- Maximum power consumption: 1.5 W per end
- Cable colour: Brown
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- QSFP connector maximum outer dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Weight: QSFP connector modules typically 100 g or less
- Electrical interface: High-speed electrical interface compliant with IEEE 802.3bm
- Standards: SFF-8665 (QSFP28), SFF-8636, IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm
- Safety: Cable jacket UL E116441 compliant, copper cables ELV compliant
- RoHS: RoHS 6

FAQs

Q: Does this cable need external power?
A: No. It is a passive cable with no external power. It draws a maximum of 1.5 W per end from the host port.

Q: What ports does it connect?
A: The 100G end plugs into a QSFP28 port. The four 25G ends plug into SFP28 ports on a Cisco switch or server.

Q: How far can this cable reach?
A: The cable is 2.5 m long. As a passive copper cable it is intended for very short links within a rack or across adjacent racks.

Q: Which Cisco platforms support it?
A: It is supported on Cisco switches and routers with QSFP28 ports. Check your platform against the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix before ordering.

Q: Is the cable hot-swappable?
A: Yes. It can be inserted or removed while the host device is powered on.
